Overview
22
4990851_002_00 – 2082262 – 2022-01-10
2025215 W702 (protective
conductor)
Protective conductor from the power
socket to the running gear
Chapter 15.2, page 105
2025219 W703 (jack-up unit
switch)
Cable from switch to cable W103 (plug
connection on power supply unit)
Chapter 12.3, page 82
2025216 W704 Cable from power supply unit to batteries,
cable W705 (fuse) and cable W706 (fuse)
Chapter 15.2, page 105
2025217 W705 Cable from fuse to battery Chapter 15.2, page 105
2065006 W706 Cable from fuse to battery Chapter 15.2, page 105
2072559 W721 Cable from the voltage selector circuit
board to the transformer switching relay
Chapter 15.2, page 105
2072355 W720 Cable from transformer switching relay to
the mains socket
Chapter 15.2, page 105
Material
number
Cable Cable routing Description

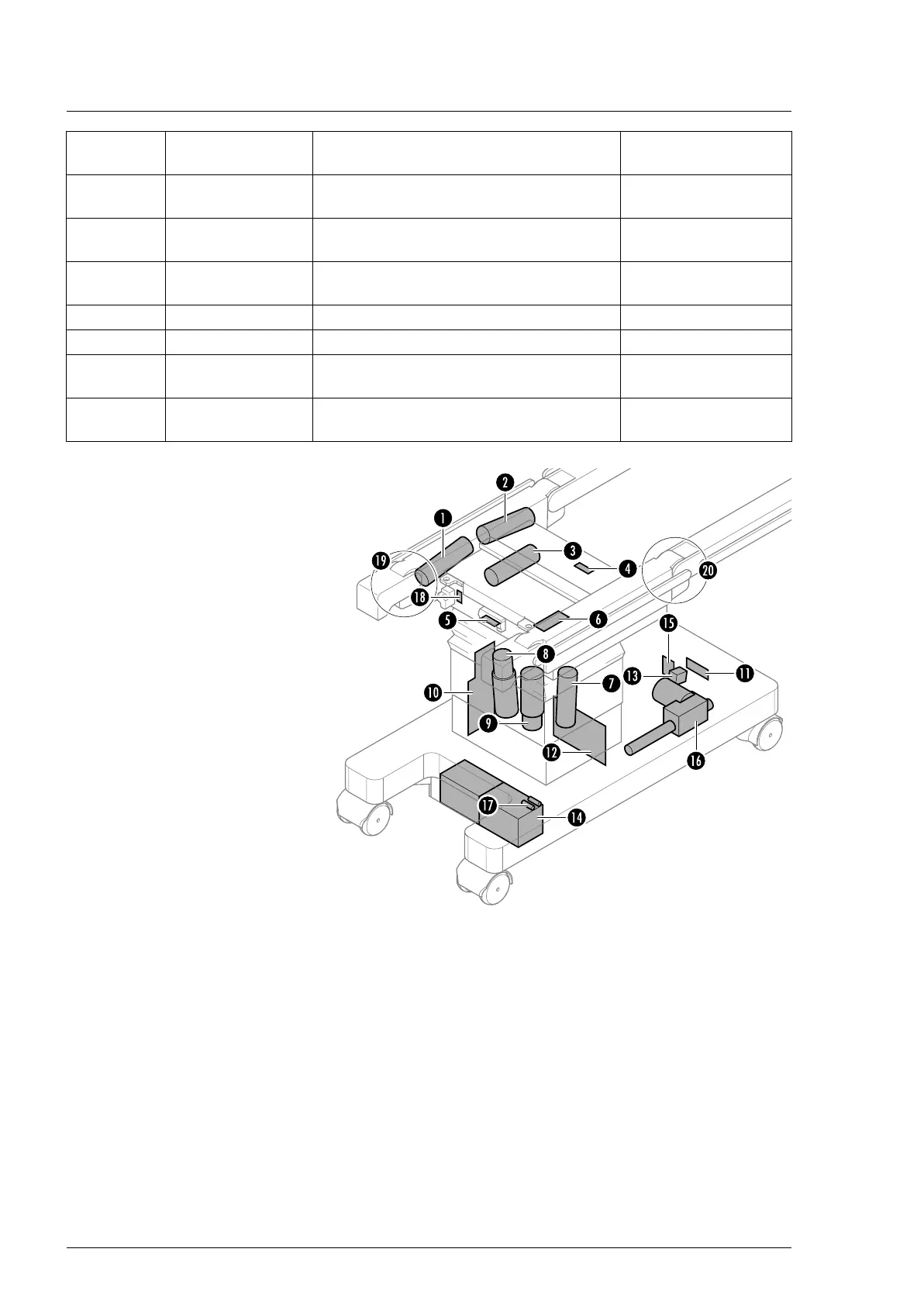

[1] Motor for leg section hinge
[2] Motor for back section hinge
[3] Longitudinal slide motor
[4] IR circuit board at head end
[5] IR circuit board at foot end
[6] Distributor board
[7] Edging motor
[8] Trendelenburg motor
[9] Lift motor
[10] Main board in the Main Controller Unit
[11] Voltage selector circuit board
[12] Power input circuit board
[13] Mains bushing
[14] Batteries
