6.6 Flicker
108

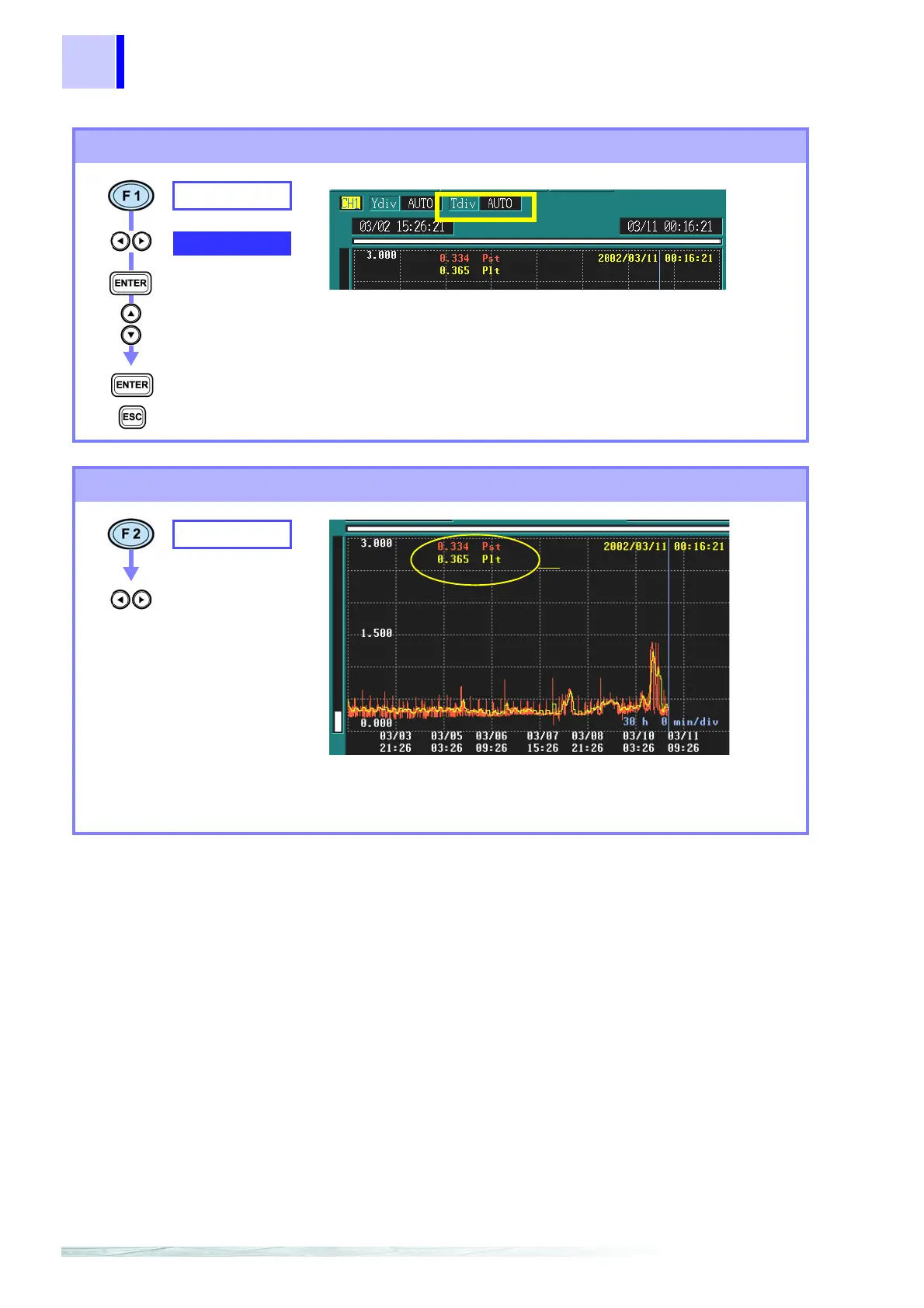

Changing the X-axis scale
SELECT
Tdiv
Select from pull-
down menu
Confirm
Cancel
AUTO, x1, x1/2, x1/4, x1/8, x1/16, x1/32, x1/64
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
AUTO scaling is used during recording. This cannot be
changed.
Cursor measurements
Cursor value
CURSOR
Move the vertical
cursor left and right
to read the display
value.
Measured values of Pst and Plt can be read every 10 minutes
Upper: Pst measured value
Lower: Plt measured value
