7.4 Event List Display
127
Displays events in a list.
Information that is recorded as the event includes the start time, stop
time, the 3196 message, and event parameters set in the SYSTEM
screen.
A total of 100 events can be recorded.
If different multi-parameter events occur within the same 200 ms span,
they are grouped and displayed together as one event.
The contents of the multi-parameter events are displayed in the lower
part of the screen.
7.4 Event List Display
LIST
❖ Displaying events (page 127)
❖ Scrolling through the event list (page
128)
❖ Scrolls the event details list. (page 128)
❖ Correspondence between
event settings and event
category display (page 128)
Changing the list display
sequence
❖ Setting the event recording sequence (page 124)
The display sequence cannot be changed while the status is
[RECORDING] or [ANALYZING].
Change the display sequence while in the [SETTING] status.

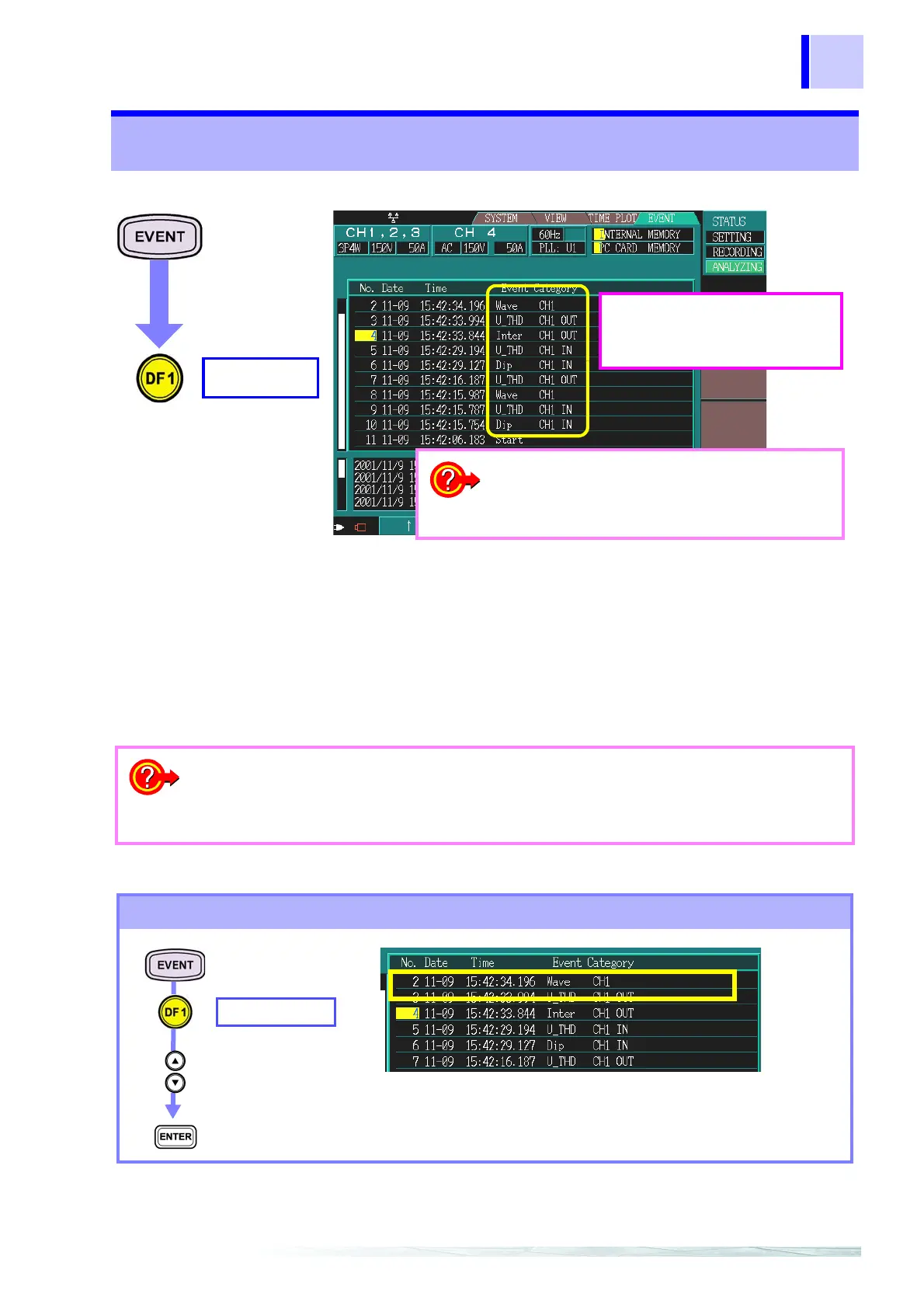

Displaying events
LIST
Confirm
You can select an event and display detailed event informa
tion and the contents of multi-parameter events.
Select an event
