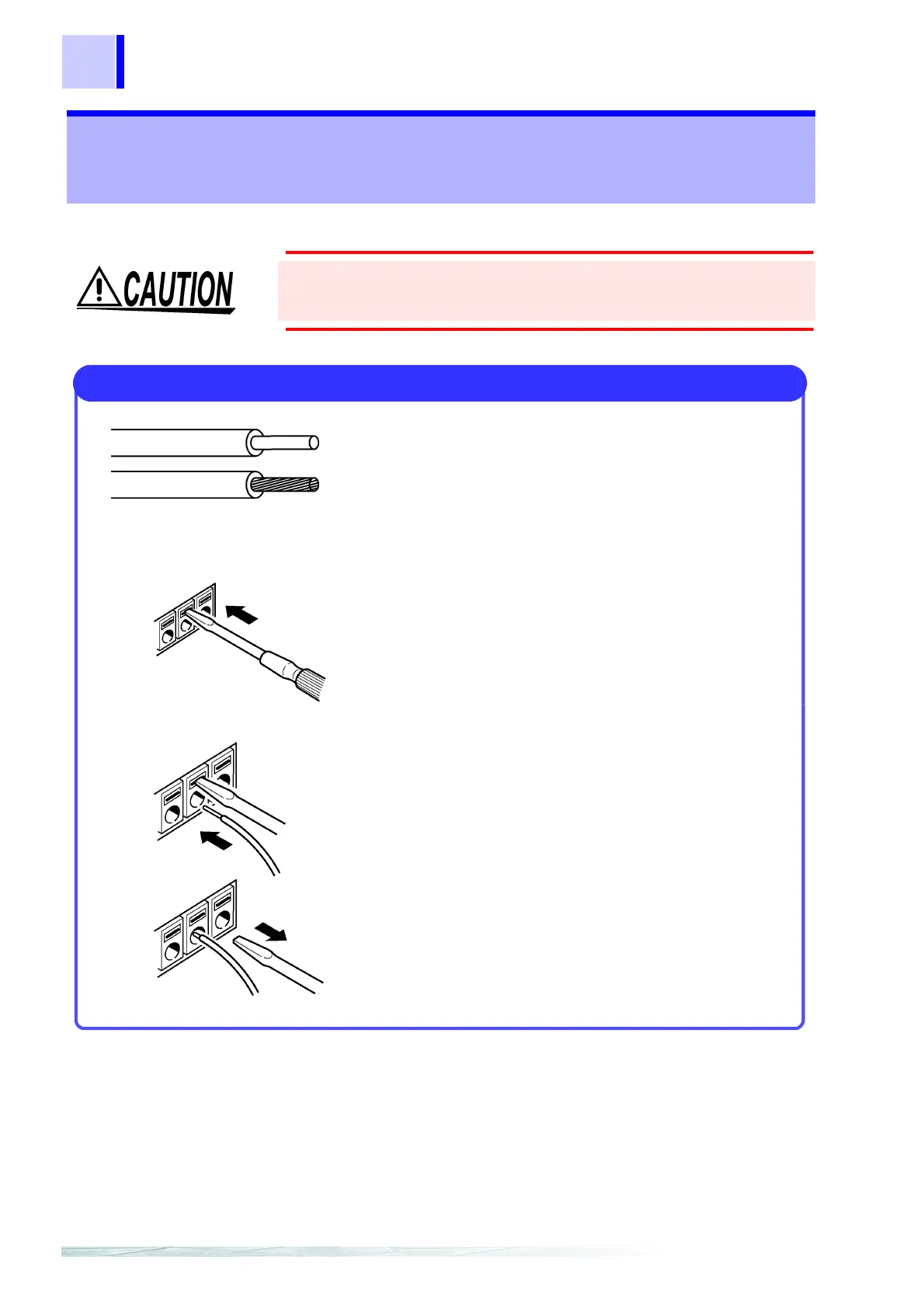

8.1 Connecting to the External Control Terminal
136
8.1 Connecting to the External Control Ter-
minal
To avoid electric shocks, use the specified material only.
1. Press down on the terminal button using a tool,
such as a flat head screwdriver.
2. While the button is depressed, insert the wire
into the electric wire connection hole.
3. Release the button.
The electric wire is locked in place.
Electric wires that conform with:
single line φ1.0 mm (AWG 18) or twisted line 0.75 mm
2
Supported electric wires:
single wire φ0.4 to 1.0 mm (AWG 26 to 18)
twisted wire 0.3 to 0.75 mm
2
(AWG 22 to 20)
diameter of search wire: more than φ0.18 mm
Standard direction wire length: 10 mm
Tools that conform to button operations:
flat head screwdriver (width of blade-tip: 2.6 mm)
Connecting to the external control terminals
