Hioki 3196 - Chapter 6 Using the Time Series Graph (TIME PLOT Screen)

5.4 DMM Display
73
5.4 DMM Display
POWER
VOLTAGE
CURRENT

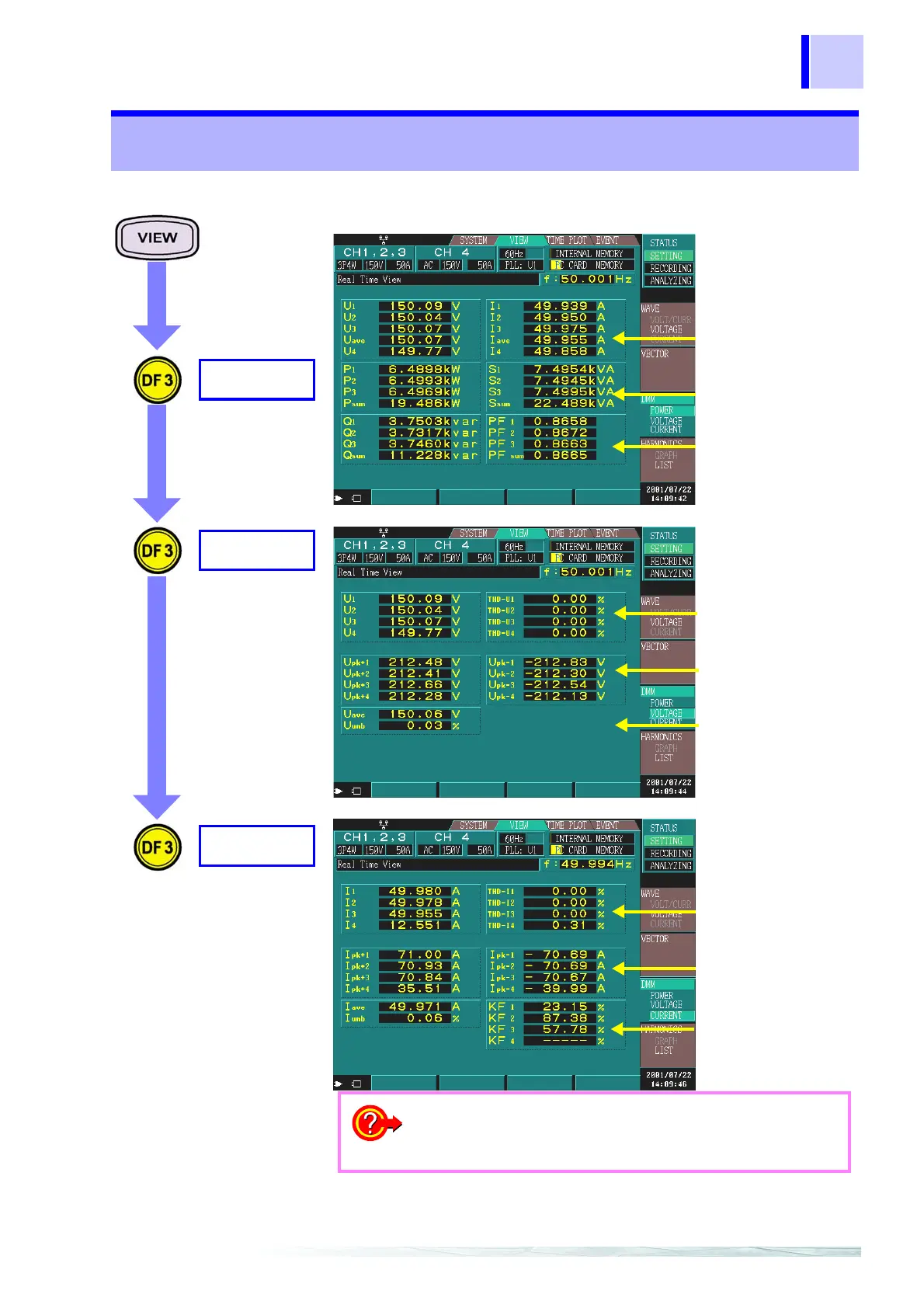

Example: 3P4W (three-phase four-wire) 4-channel DMM display
Voltage, current
Active power, appar-
ent power
Reactive power,
power factor (dis-
placement power
factor)
Voltage, total voltage
distortion
Voltage waveform
peak monitor value
(+, -)
Voltage average val-
ue, Voltage unbalanc
e
factor
Current, total current
total distortion factor
Current waveform-
peak monitor value
(+, -)
Current average val-
ue, K factor, and cur-
rent unbalance factor
❖ Voltage calculation method settings (page 54)
❖ THD calculation method settings (page 55)
❖ Power factor calculation method settings (page 55)
