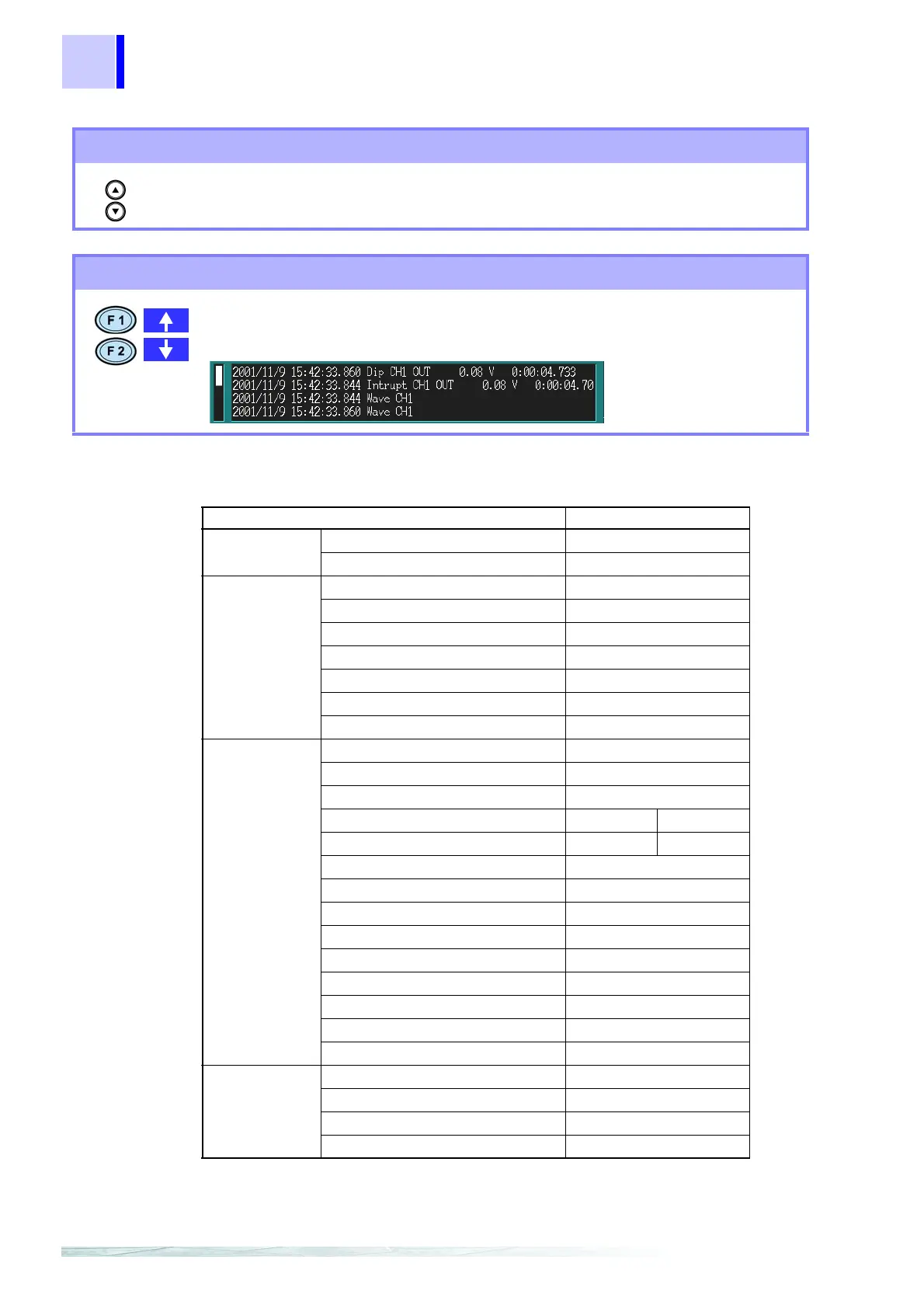

7.4 Event List Display
128
See the specifications for details.
❖ Measurements (page 183)
Correspondence between event settings and event category display
Scrolling through the event list
Scrolls the event list up or down.
Scrolls the event details list.
Scroll the event details list up or down.
Event setting Event category
Others Start
Start
Stop
Stop
Voltage Frequency
Freq
Voltage waveform comparison
Wave
External event, manual event
Ext
Voltage transient
Tran
Voltage swell
Swell
Voltage dip
Dip
Voltage interruption
Inter
Power Voltage RMS upper limit
Urms
Voltage RMS lower limit
Urms
Current RMS value
Irms
Voltage waveform peak
U peak+ U peak-
Current waveform peak
I peak+ I peak-
Active power
P
Reactive power
Q
Apparent power
S
Power factor
PF
K factor
KF
Voltage distortion factor
U_THD
Current distortion factor
I_THD
Voltage unbalance factor
U_UNB
Current unbalance factor
I_UNB
Harmonic Voltage harmonic
U_HARM
Current harmonic
I_HARM
Power harmonic
P_HARM
Harmonic phase difference
PHASE
For details on events displayed in the last column of the event list, see Text Eve
nt
Data-format Composition (page 227)
