11.2 Control and Monitoring Using a LAN Interface
167
Procedure

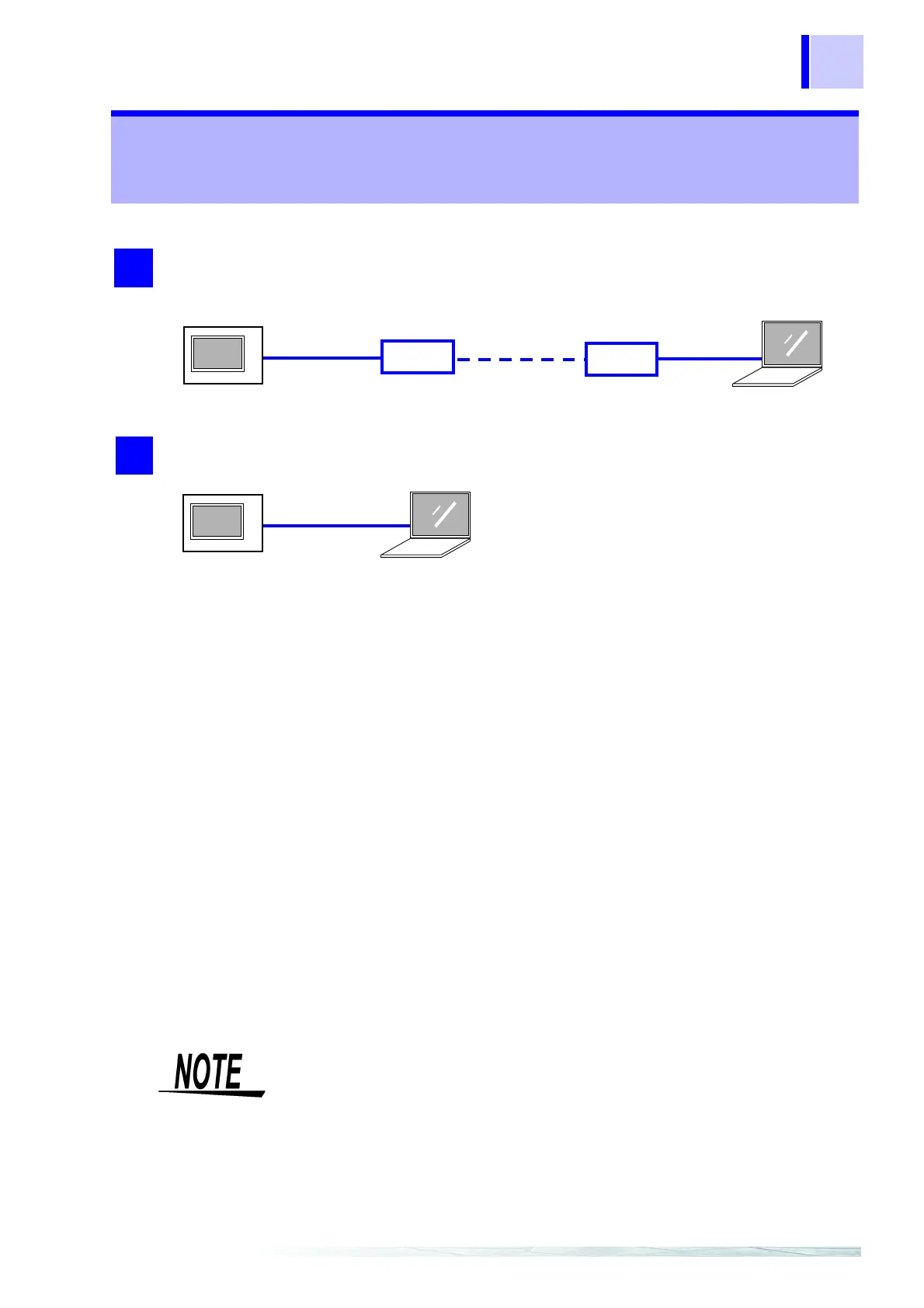

11.2 Control and Monitoring Using a LAN
Interface
Hub
Hub
LAN
Connecting the 3196 to a hub using a LAN cable and controlling
/
observing the 3196 from a PC
2
3196
10Base-T
Straight
cable
10Base-T
Straight
cable
Connecting the 3196 to a PC with a LAN cable and controlling/observ
-
ing the 3196
3
3196
10Base-T
Cross cable
1.
Connect the instrument to a hub or computer with a LAN cable.
When connecting to a hub: 10BASE-T terminal, straight cable
When connecting to a computer: 10BASE-T terminal, cross cable
Connecting method: Refer to the Quick Start Manual.
❖ 11.2.1 "Connecting the 3196" (page 168)
2. Make connection point settings on the 3196
❖ 11.2.2 "Setting the 3196" (page 168)
3. Make 3196 settings using the PC
• Host name............................. (up to 12 characters)
• IP address ............................. (***.***.***.***) ***:3 characters
• Subnet mask ......................... (***.***.***.***) ***:3 characters
• Default gateway ...................
ON or OFF
• Gateway................................ (***.***.***.***)***:3 characters
❖ 11.2.3 "Setting the PC" (page 172)
Make the same connection and settings even when using the HTTP
server function or Down96 download application software.
