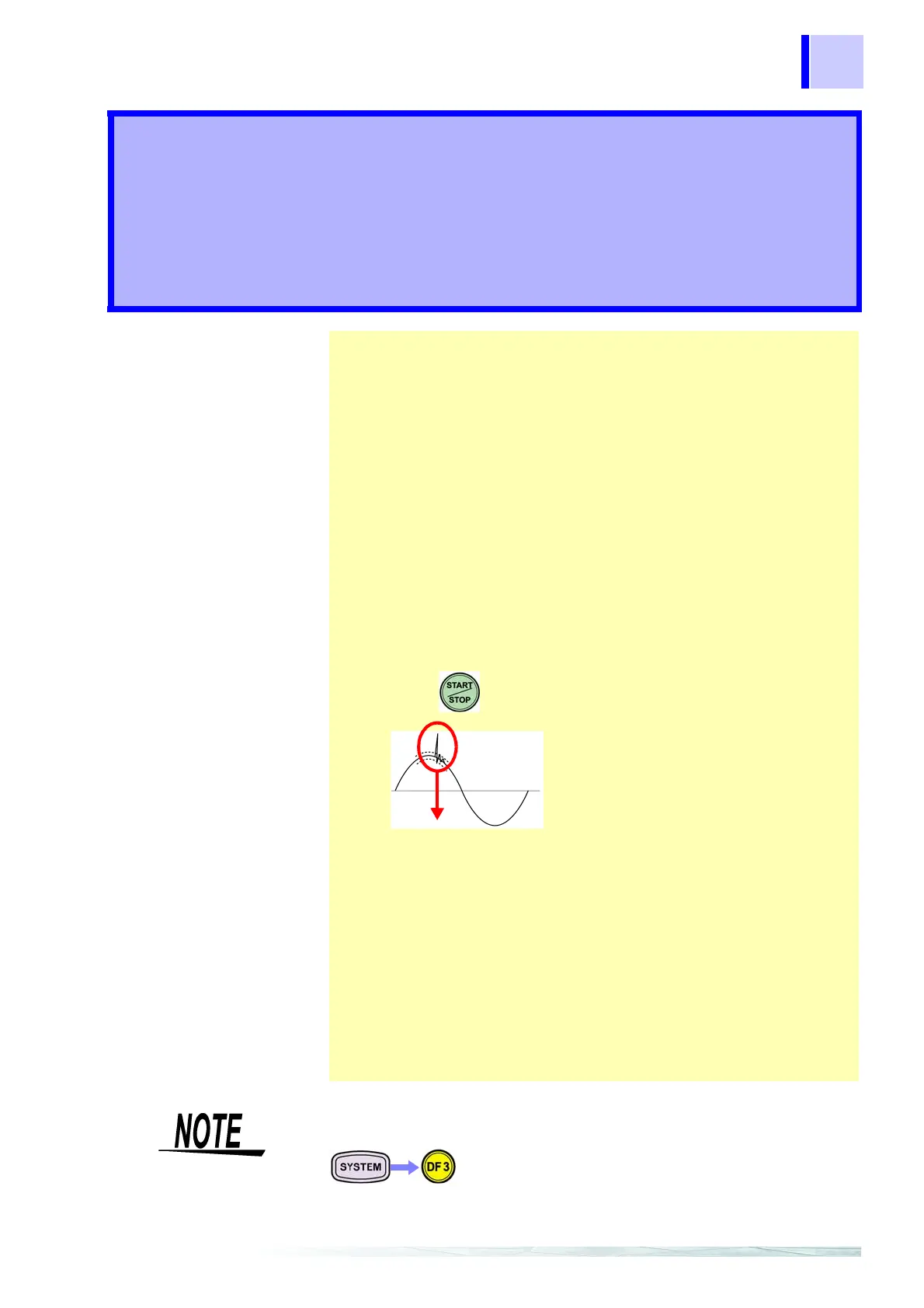

115
Using Events
(EVENT Screen) Chapter 7
Make event settings
❖ Event Settings (page 121)
By setting thresholds in advance, information regarding inter-
nal calculations that exceed the thresholds can be captured
as events. Since thresholds are ordinarily set as the rated
limits of the electrical facilities being used, the occurrence of
an event can be interpreted as a power supply anomaly.
2. Check event thresholds
❖ Event Monitor Display (page 134)
You can check whether specified event thresholds are appro-
priate by looking at the event monitor screen. This is possible
even without pressing the START key to start recording.
3. Perform measurements
Press to record.
4. Analyze events
❖ Event List Display (page 127)
❖ Analyzing Event Occurrences (page 130)
❖ Analyzing Transient Waveforms (page 131)
❖ Event Monitor Display (page 134)
Events displayed by the 3196
• Measurement start events
• Measurement stop events
• Calculation events (events for which thresholds can be speci-
fied)
Event occurrence
As each event occurs, it is displayed
on the EVENT screen.
When measuring using events, be sure to enable event settings in
the SYSTEM screen.
❖ Event Settings (page 121)
EVENT
To Next Page
