5.5 Harmonics Display
74

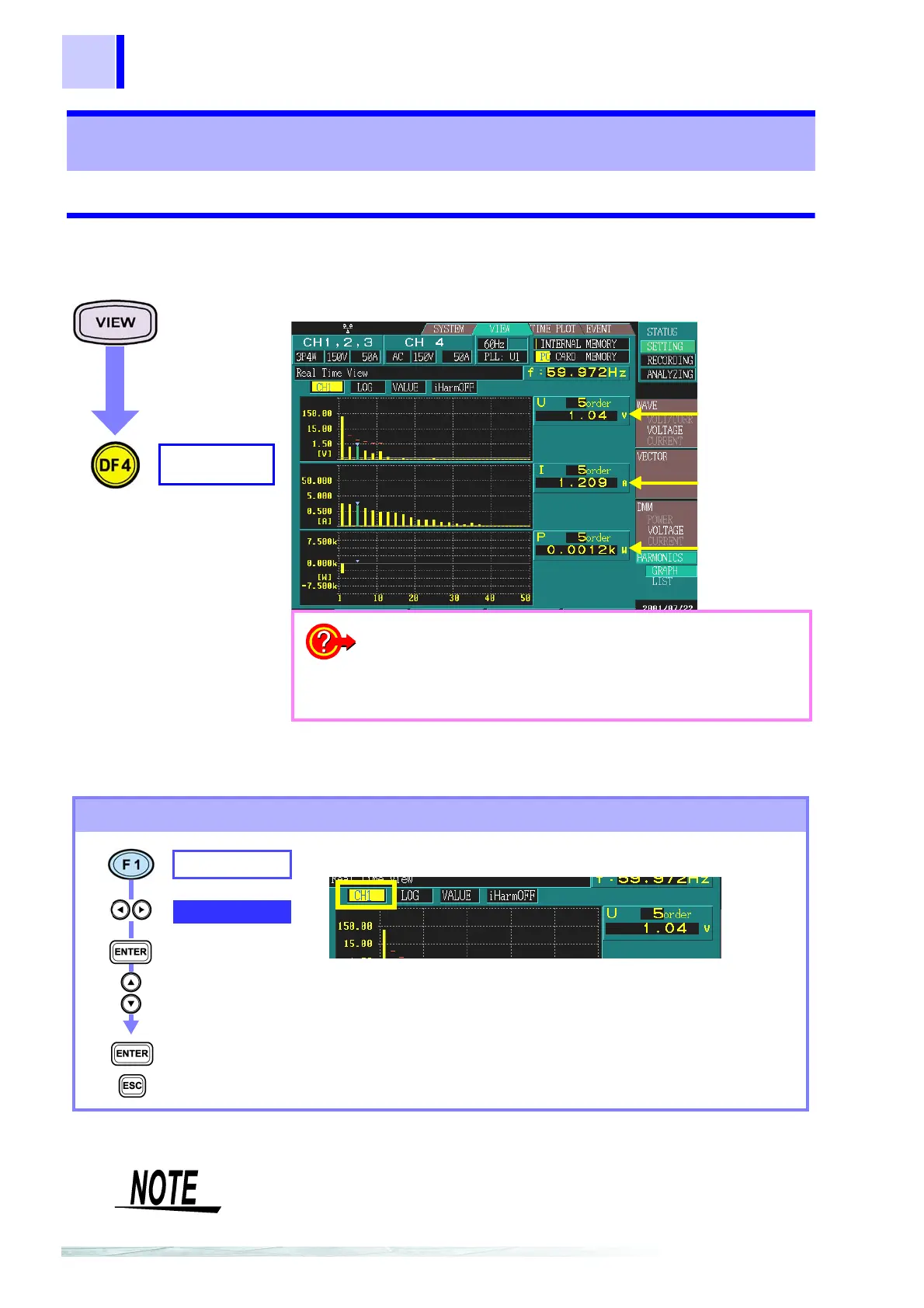

5.5.1 Harmonics Bar Graph
5.5 Harmonics Display
HARMONICS
GRAPH
Example: 3P4W (three-phase four-wire)
For the selecte
d
channel:
Harmonic
voltage
Harmonic
current
Harmonic
power
❖ Changing the display channel (page 74)
❖ Changing the axis display (page 75)
❖ Changing the RMS value/phase angle display (page 75)
❖ Displaying inter-harmonics (page 75)
❖ Changing the order number displayed (page 76)
Changing the display channel
SELECT
CH1
Select from pull-
down menu
Confirm
Cancel
CH1, CH2, CH3, CH4
(Example)
When the 400 Hz measurement frequency is selected, harmonic
analysis is performed up to the 10th order, and inter-harmonic analy-
sis is not available.
