Hioki 3196 - Common Display Areas

2.2 Screen Names and Configurations
12
2.2.1 Common Display Areas

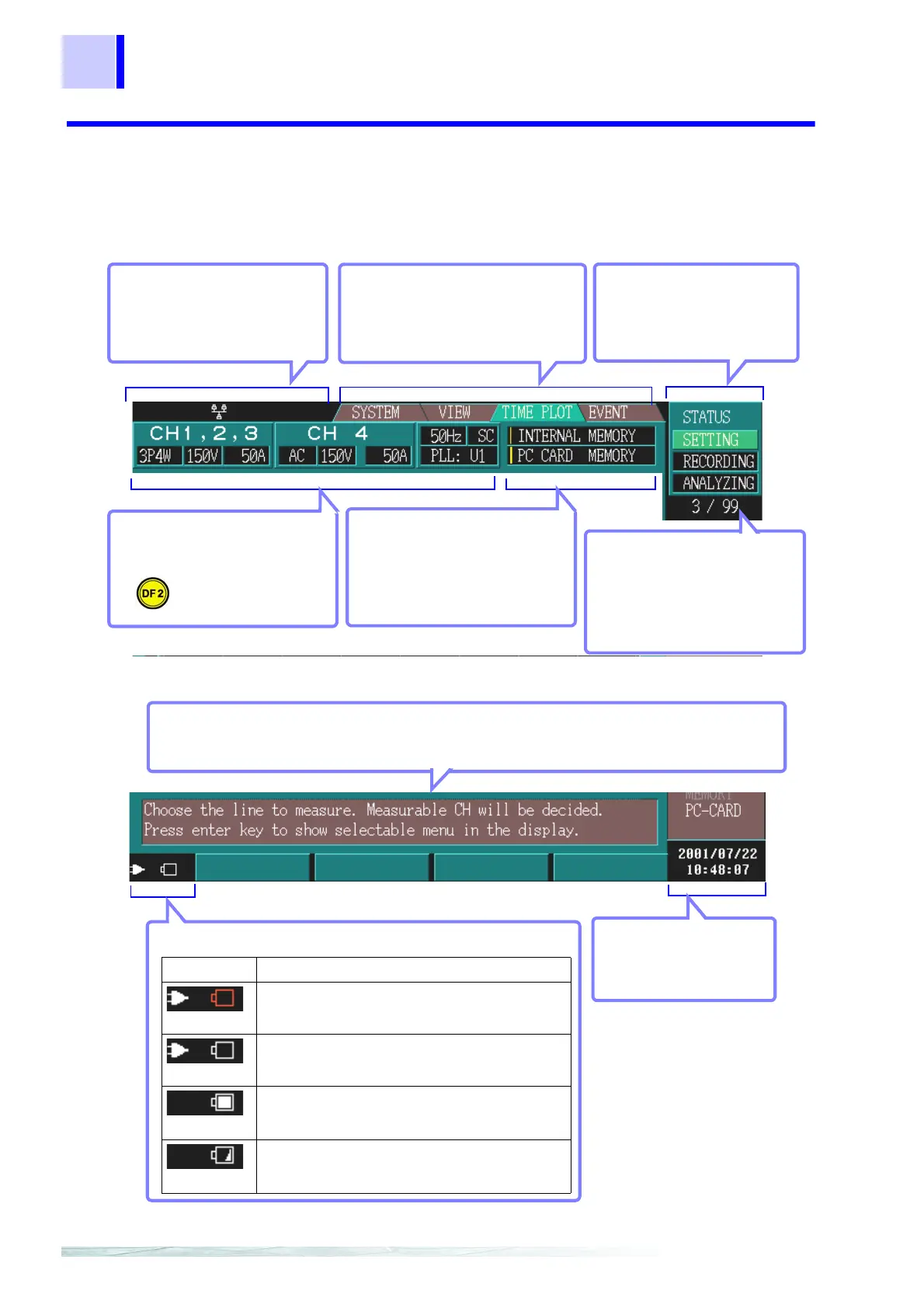

The display elements common to all screens on the 3196 are as fol-
lows.
Time Display
Shows the current
time.
Power Supply Indicator
Indicator Power supply status
White/ Red
Powered by AC adapter
Battery pack is charging
White/ White
Powered by AC adapter
Installed Battery Pack
White
Powered by battery pack
White
Powered by battery pack, but charge is low.
SYSTEM Settings
Indicators*5
Displays the contents specified
in
MEASURE
Memory Usage
Indicators*3
Level meters indicate the usage
status of internal memory and
flash ATA card.
Interface & Hold/Lock
Indicators*4
Indicates interface usage and
HOLD/LOCK status.
Internal Status
Indicator*2
Indicates the current inter-
nal operating status.
Screen Selection*1
Indicates the screen type select-
ed by the corresponding key.
Number of repeated
recording operations*6
The number of repeated re-
cording operations currently
set will be indicated.
Top of Screen
Help Comment Display
Shows a brief description of the item at the cursor position on the SYSTEM screen.
