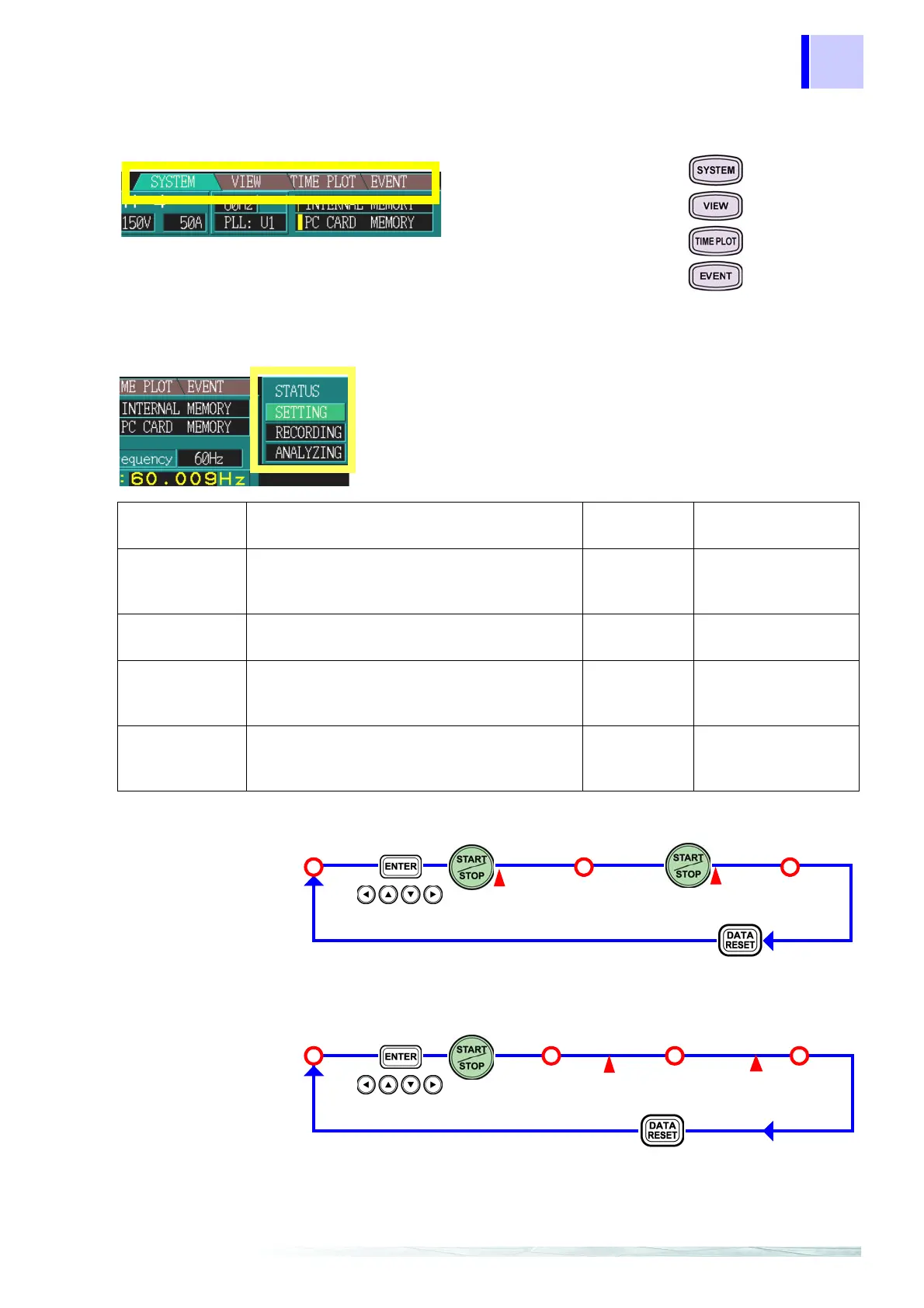

2.2 Screen Names and Configurations
13
*1:Screen Selection Display
*2:Internal Operating Status Display
If the preset measurement start time has already passed, measure-
ment starts immediately.
[SYSTEM]screen...............
[VIEW]screen ....................
[TIME PLOT]screen ..........
[EVENT]screen .................
One of [SETTING], [RECORDING]([WAITING] until preset
time to start measuring), or [ANALYZING] is displayed to
indicate the internal status of the instrument.
The internal status is changed by pressing START/STOP to
start/stop recording.
Display Internal status description
Real-time
measurement
Recording status
[SETTING]
When turned on, there is no recorded data in the
instrument
Possible Preparation for re-
cording
(not recording)
[WAITING]
Waiting until a preset start time to begin mea-
suring
Possible
[RECORDING]
Recording has started and measurement data
is being saved to the instrument’s internal mem-
ory (and perhaps to a PC Card)
Possible Recording in progress
[ANALYZING]
Recording has finished and the instrument is
ready for analysis of the measurement data in
internal memory
Possible Recording finished
Normal Measurement
Measurement starts
Measurement finished
[SETTING]
[RECORDING] [ANALYZING]
Measurement with Specified Time Settings
Starts measurement at the
measurement start time.
Finishes measurement at
the measurement end
time.
[SETTING]
[WAITING]
[RECORDING]
[ANALYZ
-
ING]
