5.2 Waveform Display
67

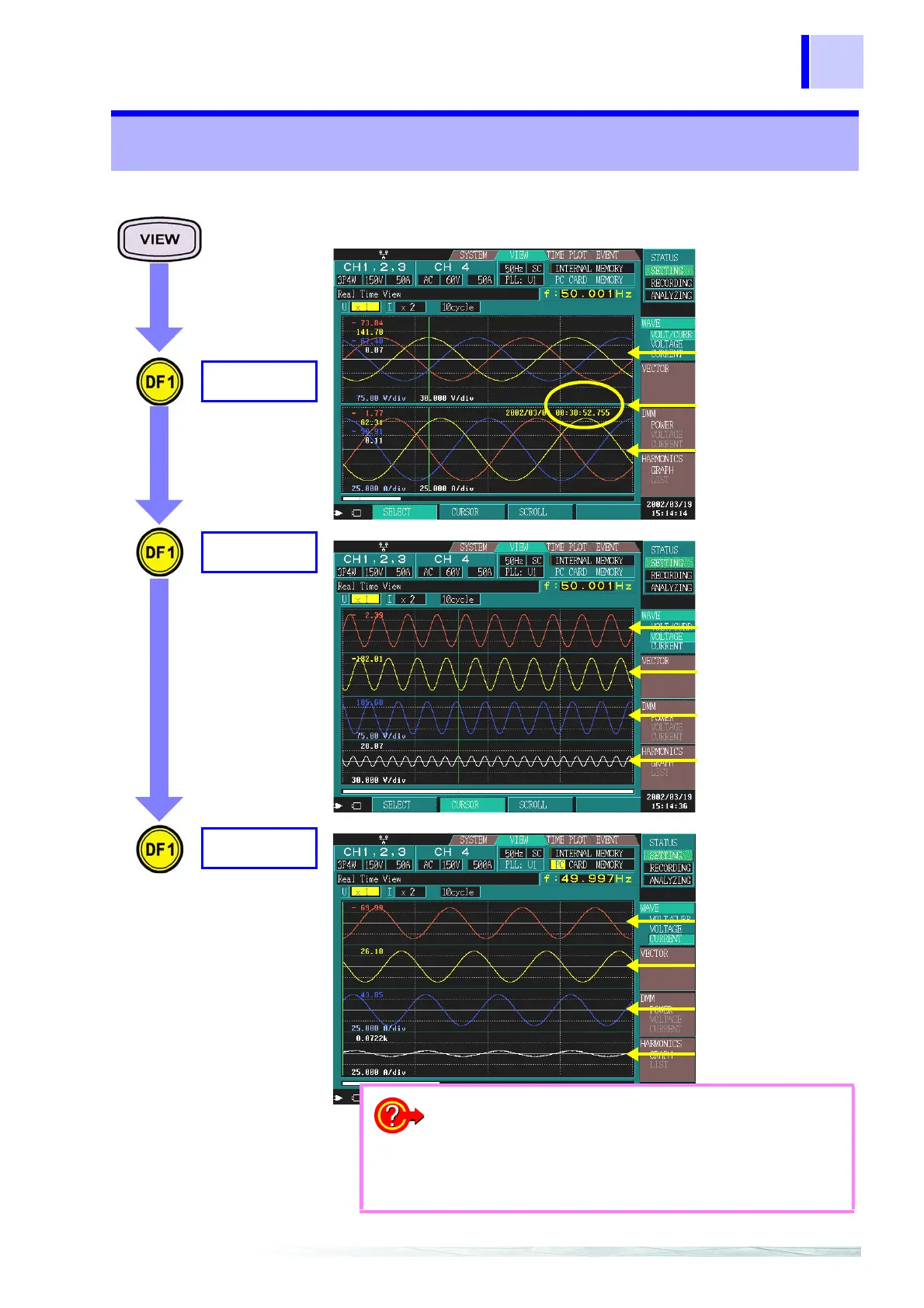

5.2 Waveform Display
VOLTAGE
WAVE
VOLT/CURR
CURRENT
Example: 4-channel waveform with a 3P4W (three-phase four-wire) config-
u
ration
Superimposes and
displays 4 channels
of the voltage wave-
form.
Currsor value (time)
Superimposes and
displays 4 channels
of the current wave-
form.
Voltage waveform
Red: CH1
Yellow: CH2
Blue: CH3
White: CH4
Current waveform
Red: CH1
Yellow: CH2
Blue: CH3
White: CH4
❖ Enlarging waveforms (page 68)
❖ Changing the Y-axis scale of waveforms (page 68)
❖ Changing the X-axis scale of waveforms (page 68)
❖ Reading the cursor value (cursor measurement)
[VOLTAGE], [CURRENT ] (page 69)
❖ Scrolling through waveforms (page 69)
