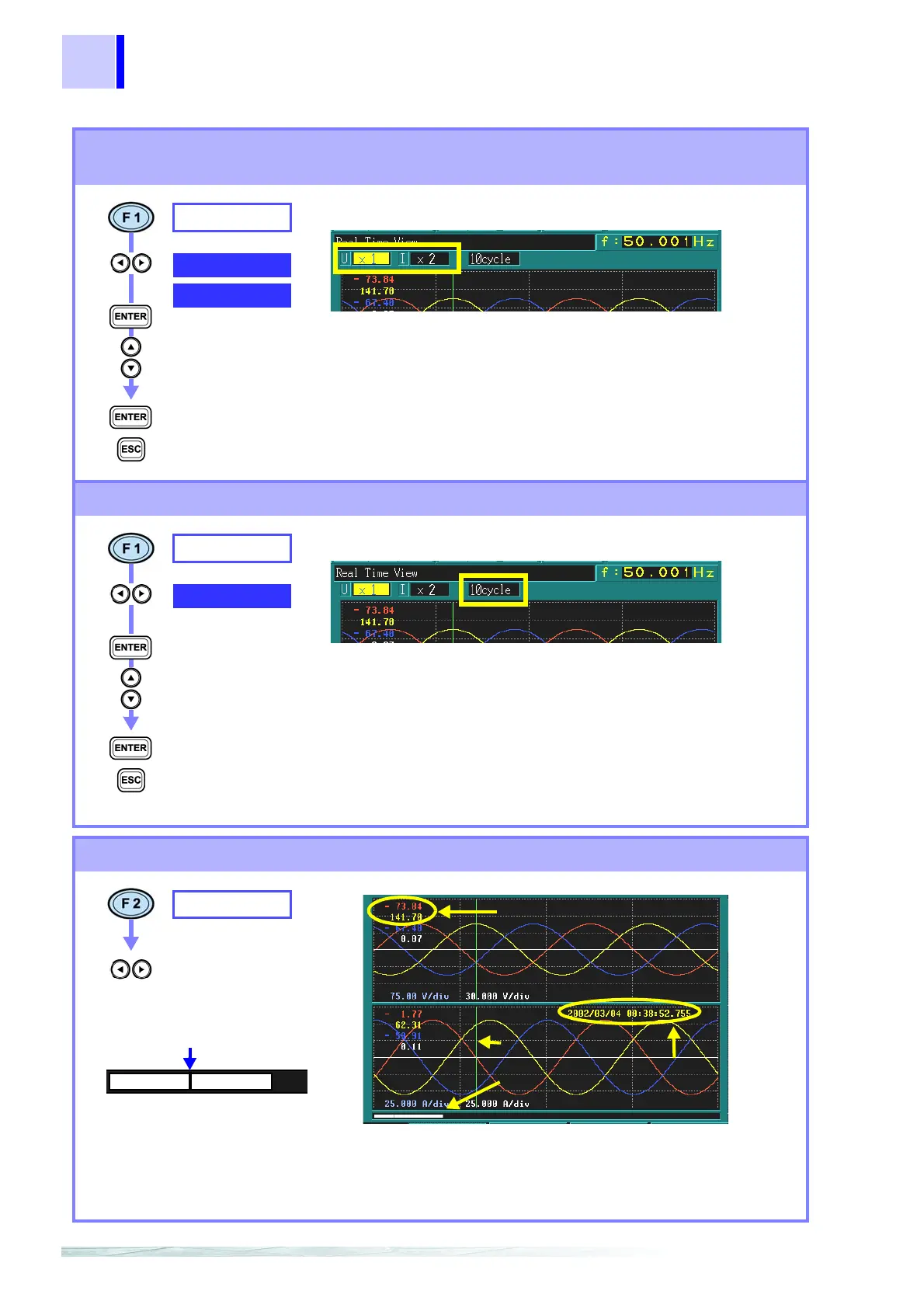

5.2 Waveform Display
68
Enlarging waveforms
Changing the Y-axis scale of waveforms
Changing the X-axis scale of waveforms
SELECT
U
Select from pull-
down menu
Confirm
Cancel
x1/3, x1/2, x1, x2, x5, x10
I
When you want to reduce the waveform, make the scal
e
smaller.
When you want to enlarge the waveform, make the scal
e
larger.
SELECT
2 cycles
Select from pull-
down menu
Confirm
Cancel
The waveforms are displayed over the entire screen in th
e
selected number of cycles.
For 50 Hz
2 cycles, 4 cycles, 10 cycles
For 60 Hz
2 cycles, 4 cycles, 10 cycles, 12 cycles
For 400 Hz
16 cycles, 32 cycles, 80 cycles
(Example)
Reading the cursor value (cursor measurement) [VOLT/CURR]
Cursor value
(Time)
Cursor value
(Waveform instantaneous
values)
Vertical cursor
Scroll bar
CURSOR
Move the vertical cursor
left and right to read the
display value.
Cursor position
The cursor on the scroll bar indicates
where the cursor is positioned on the
saved waveform.
You can read waveform instantaneous values and tim
e
with the cursor.
Normally, the cursor is located at the beginning of th
e
waveform.
