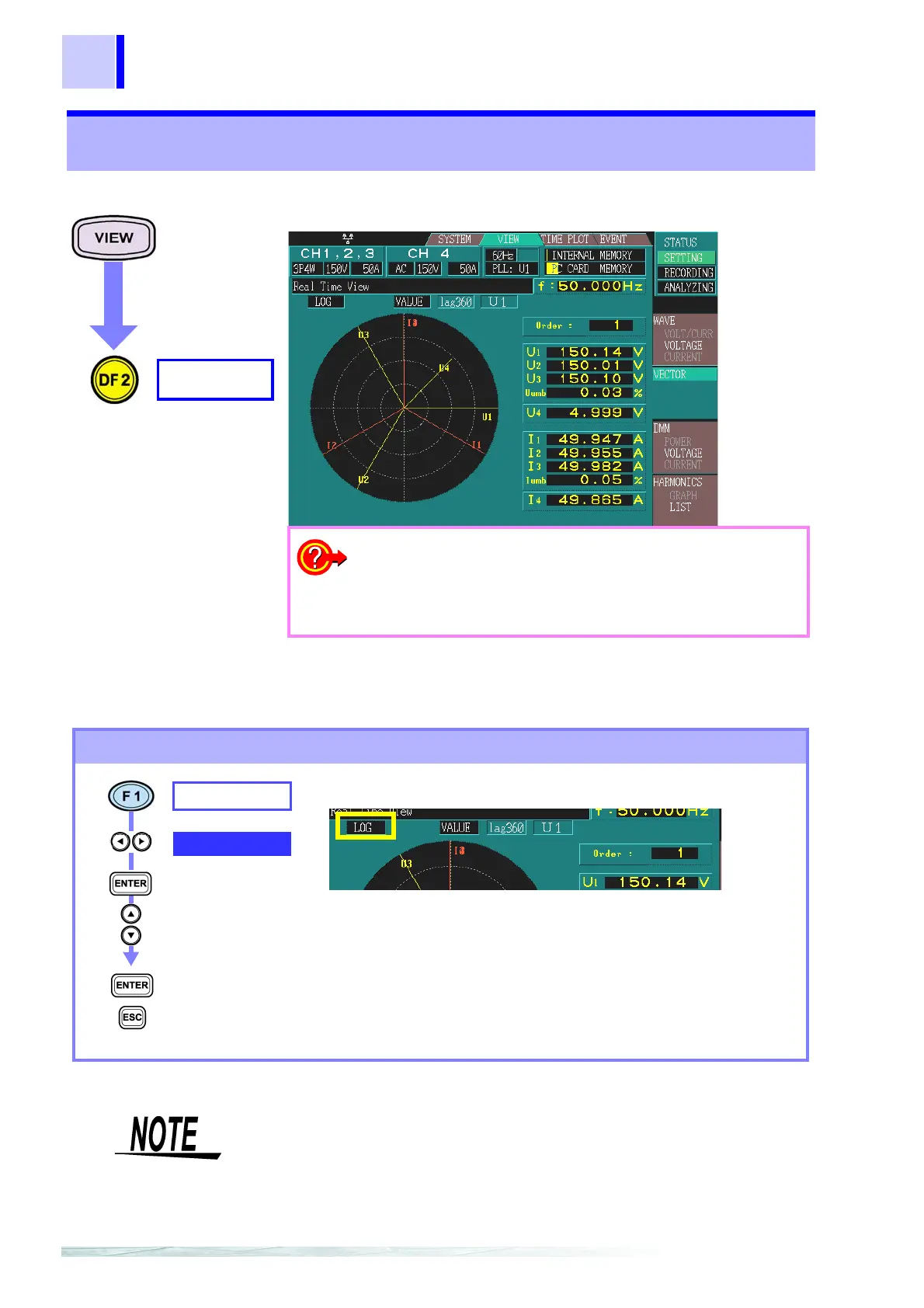

5.3 Vector Display
70
5.3 Vector Display
VECTOR
Example: 3P4W (three-phase four-wire)
❖ Changing the axis display (page 70)
❖ Changing the RMS value/phase angle display (page 71)
❖ Changing the phase angle display method (page 71)
❖ Changing the phase angle reference source (page 71)
❖ Changing harmonic number of orders (page 72)
Changing the axis display
SELECT
LOG
Select from pull-
down menu
Confirm
Cancel
LINEAR (linear display)
LOG (logarithmic display)
You can select whether to use a linear display (LINEAR) o
r
logarithmic display (LOG) for the vector axis.
If you select the logarithmic display method, the vector i
s
easy to see even at low levels.
(Example)
When the 400 Hz measurement frequency is selected, harmonic
analysis is performed up to the 10th order, and inter-harmonic analy-
sis is not available.
