5.3 Vector Display
71
Changing the RMS value/phase angle display
SELECT
VALUE
Select from pull-
down menu
Confirm
Cancel
VALUE (RMS value)
PHASE (phase angle)
You can select what value to display (RMS value display o
r
phase angle display).
When PHASE is selected, see "Changing the phase angle
display method" (page 71).

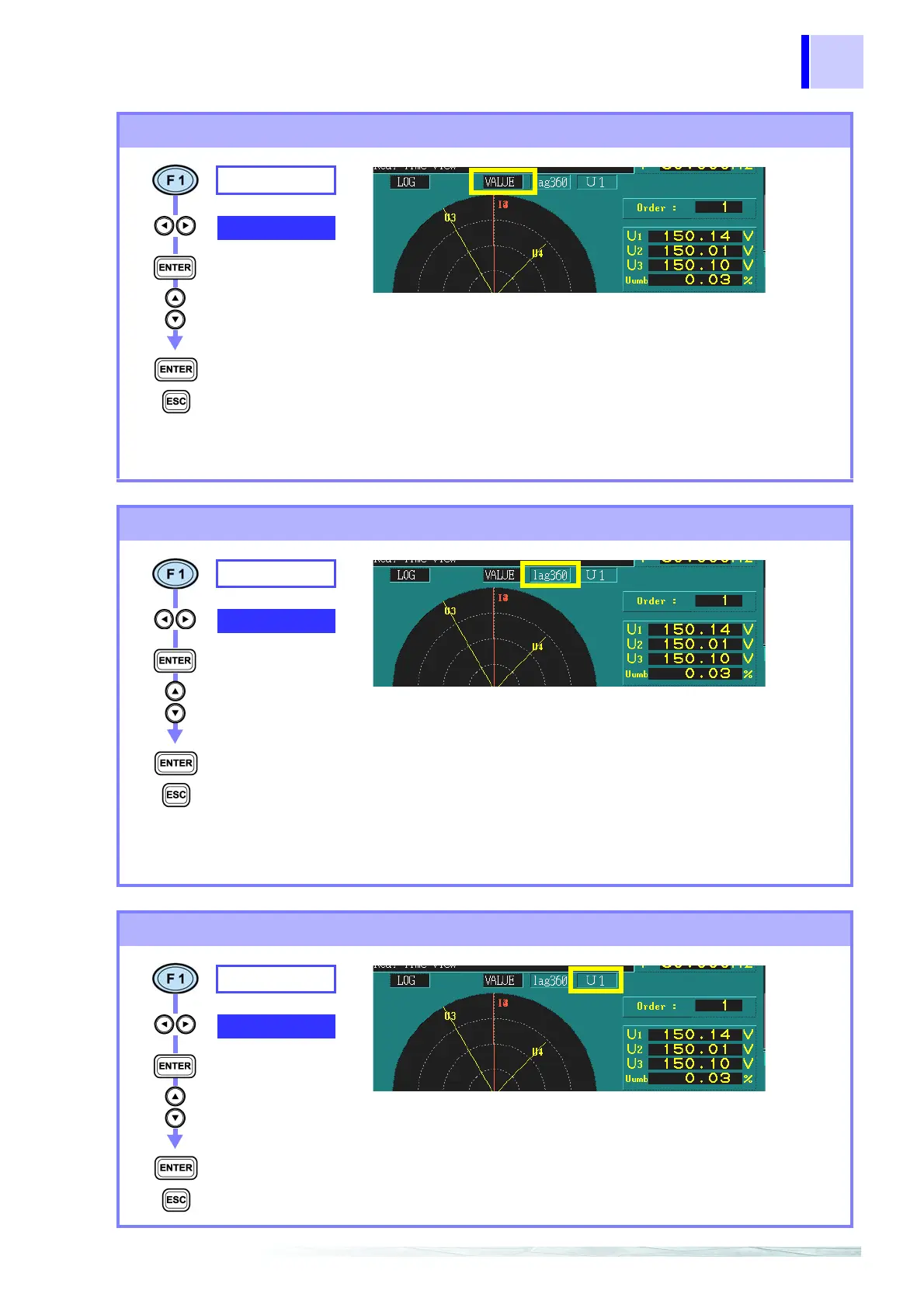

(Example)
Changing the phase angle display method
SELECT
±180
Select from pull-
down menu
Confirm
Cancel
±180 (lead: 0 to 180°, lag: 0 to -180°)
lag360 (lag 0 to 360°)
You can select the type of phase angle display.
By selecting lag360, you can display 0 to 360°.
When lag360 is selected, see "Changing the phase angle ref
-
erence source" (page 71).
The selection affects only numerical results, and vector dis
-
play remains unchanged.
(Example)
Changing the phase angle reference source
SELECT
U1
Select from pull-
down menu
Confirm
Cancel
U1, I1, U2, I2, U3, I3
You can select the reference source (0°) to display the phase
angle value
The selection affects only numerical results, and vector dis
-
play remains unchanged.
