2.1 Key Explanations
9
Key Explanations and Screen
Configuration Chapter 2

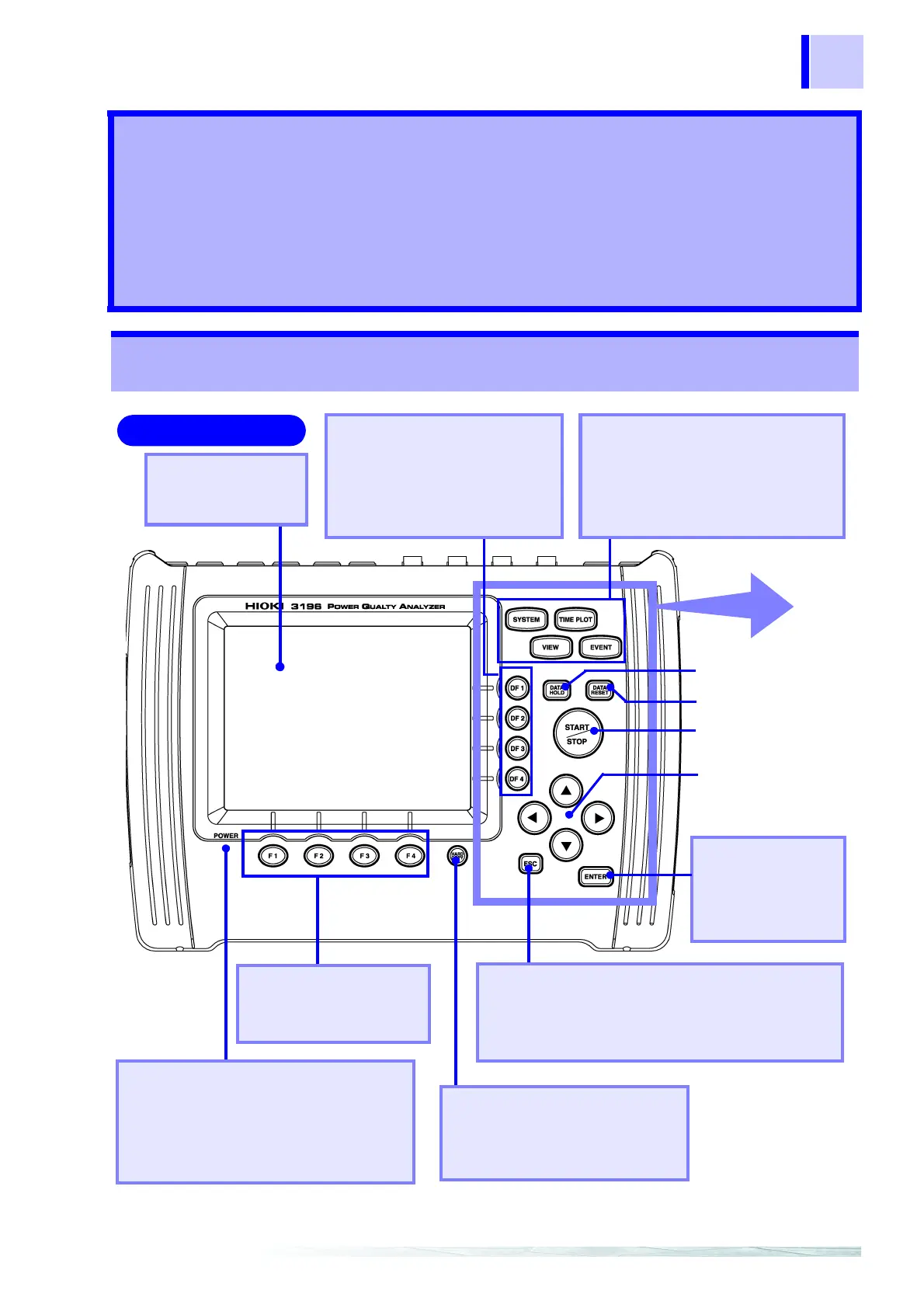

2.1 Key Explanations
Display
6.4-inch, TFT color
LCD display
F1 to F4 keys
Select or change display
or setting items.
Front Panel
POWER LED
This lamp lights when the power is on.
Powered by AC adapter: Lit green
Powered by battery pack: Lit red
SYSTEM/ VIEW/ TIMEPLOT/
EVENT key
Select the screen type according to
the intended usage
❖ "Front Panel Enhanced
View"(page 10)
HARD COPY key
Prints a screen image, or outputs
the screen image as a file to a PC
Card.
ESC key
Ignores selected or changed items and returns the
original setting.
ENTER key
Used to set the
contents of items
that are selected or
modified.
DATA HOLD key
DATA RESET key
START/STOP key
Cursor keys
DF1 to DF4 keys
Press these Display Function
DF keys to select the type of dis-
play.
❖ "Front Panel Enhanced
View"(page 10)
To Next Page
