2.1 Key Explanations
10
SYSTEM key
Displays the [SYSTEM]screen (for select-
ing display of system settings).

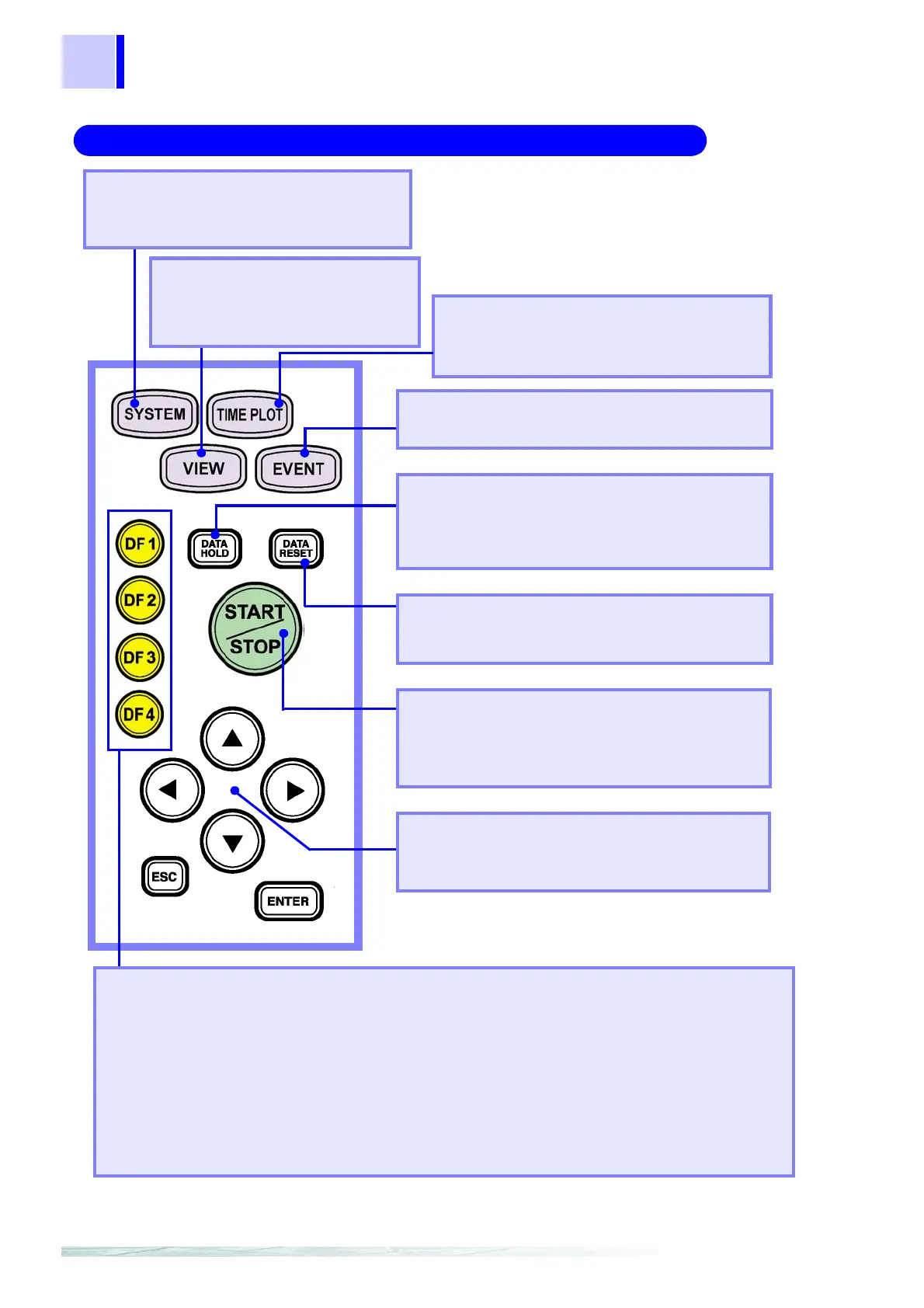

Front Panel Enhanced View
DATA HOLD key
Temporarily stops display of measured values.
Press again to cancel. While recording, display of the
measured value can be stopped for confirmation.
Cursor keys
These keys move the cursor on the screen.
Use to scroll the TIME PLOT screen.
DATA RESET key
All measurement data is erased from internal memory.
Press this key to reset before restarting recording.
EVENT key
Displays the [EVENT]screen (for selecting events).
VIEW key
Displays the [VIEW]screen (for se-
lecting an Analysis view)
TIME PLOT key
Displays the [TIME PLOT]screen (for selecting
the time plot graph).
START/STOP key
Starts and stops recording.
To start recording, press the DATA RESET key
to reset the data, then press this key.
DF1 to DF4 keys (Display function)
Select a screen to display from the selected screen type: SYSTEM, VIEW, TIME PLOT or EVENT.
The screen selections are as follows:
[SYSTEM]screen.......... Wiring diagram, Main settings, Event settings, Load/Save, etc.
[TIME PLOT]screen..... RMS fluctuations, Voltage fluctuations, Harmonic fluctuations,
Flicker display, etc.
[VIEW]screen................ Waveforms, Vectors, DMM, Harmonic display, etc.
[EVENT]screen ............List, Monitor, etc.
