7.6 Analyzing Transient Waveforms
131

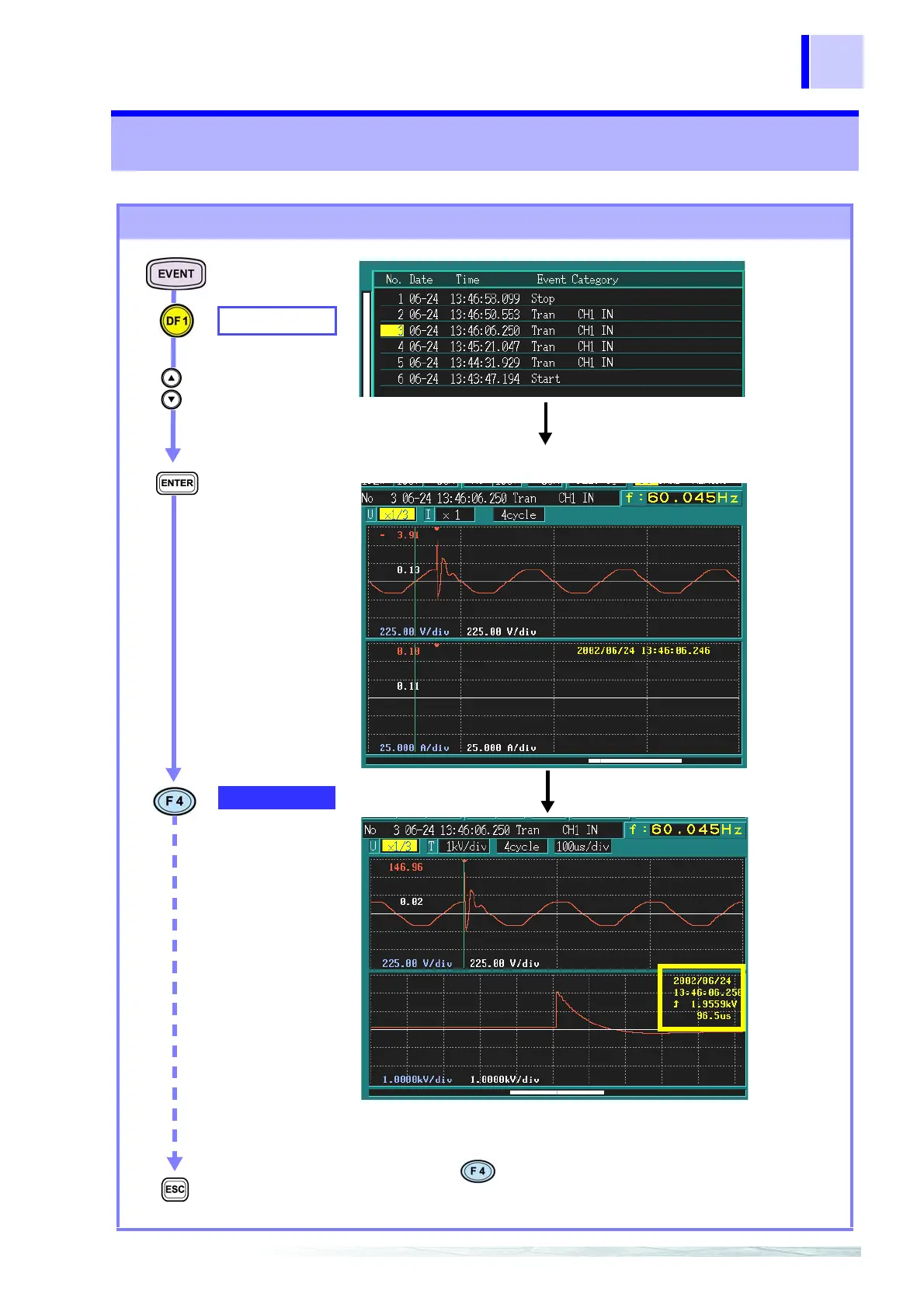

7.6 Analyzing Transient Waveforms
Displaying transients
LIST
Select an event category from the event
list or an event indicated with “Tran” in
the detailed event list.
(Display changes to
the VIEW screen
waveform display.)
TRANSIENT
Voltage waveform
Transient waveform
Display switches between the voltage/current waveform dis
-
play and the voltage/transient waveform display each time
you press .
Return to event list
Confirm
Transient dat
a
year/month/
day, time,
rising edge,
peak value,
duration
