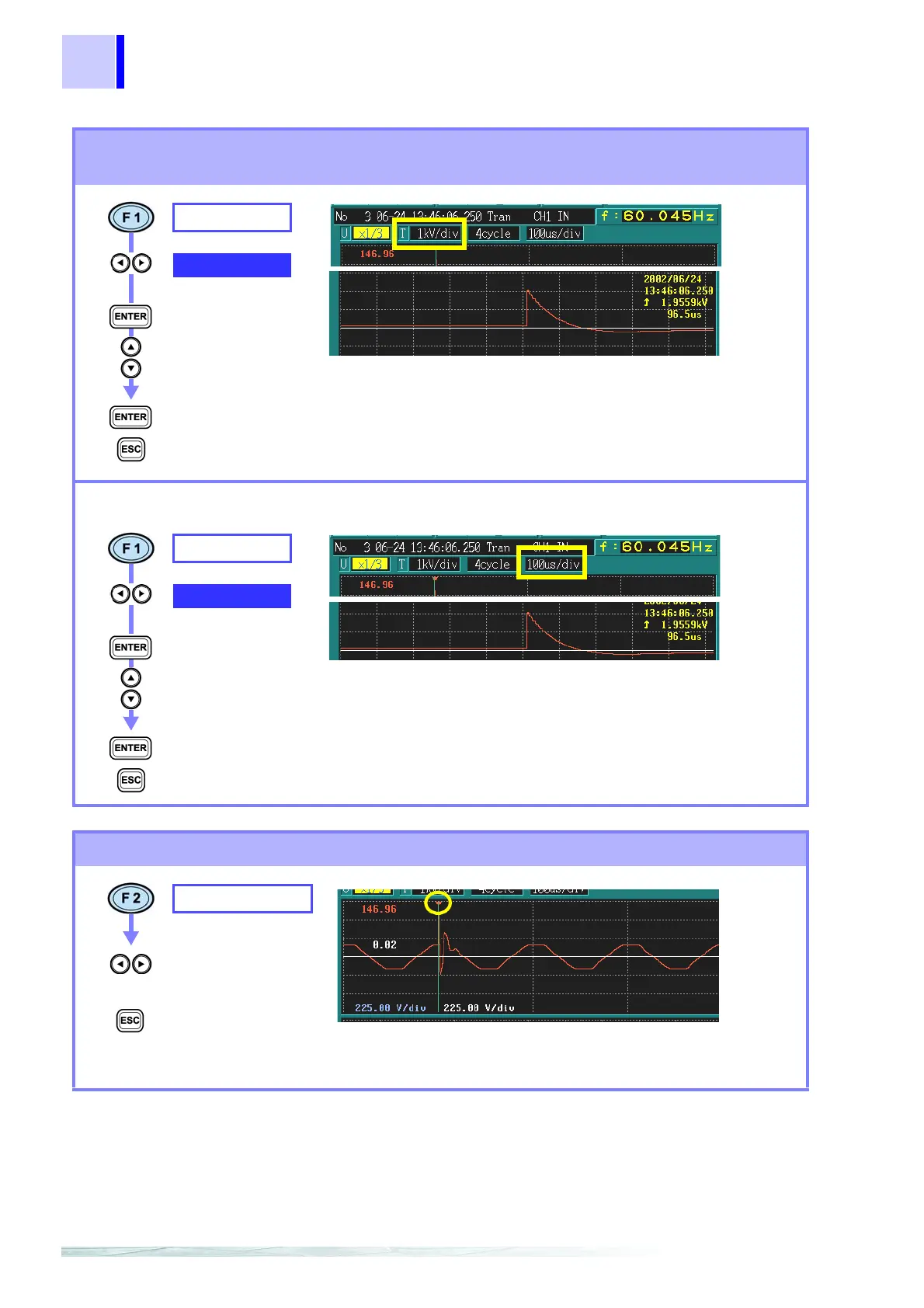

7.6 Analyzing Transient Waveforms
132
Enlarging transient waveforms
Changing the Y-axis range of waveforms
Changing the X-axis range of waveforms
SELECT
T
Select from pull-
down menu
Confirm
Cancel
1kV/div, 600V/div, 300V/div, 150V/div, 60V/div, 30V/div
To reduce the waveform, make the voltage value larger.
To enlarge the waveform, make the voltage value smaller.
SELECT
50μs/div
Select from pull-
down menu
Confirm
Cancel
25μs/div, 50μs/div, 100μs/div, 200μs/div, 400μs/div
To reduce the waveform, make the X-axis range value smalle
To enlarge the waveform, make the X-axis range value larger
Searching for transients
TRANS SEARCH
Select transient from
voltage waveform
If the voltage waveform contains multiple transients, you can
select one of them.
Return to event list
(Search for transients)
