Using the External Control
Terminals Chapter 8

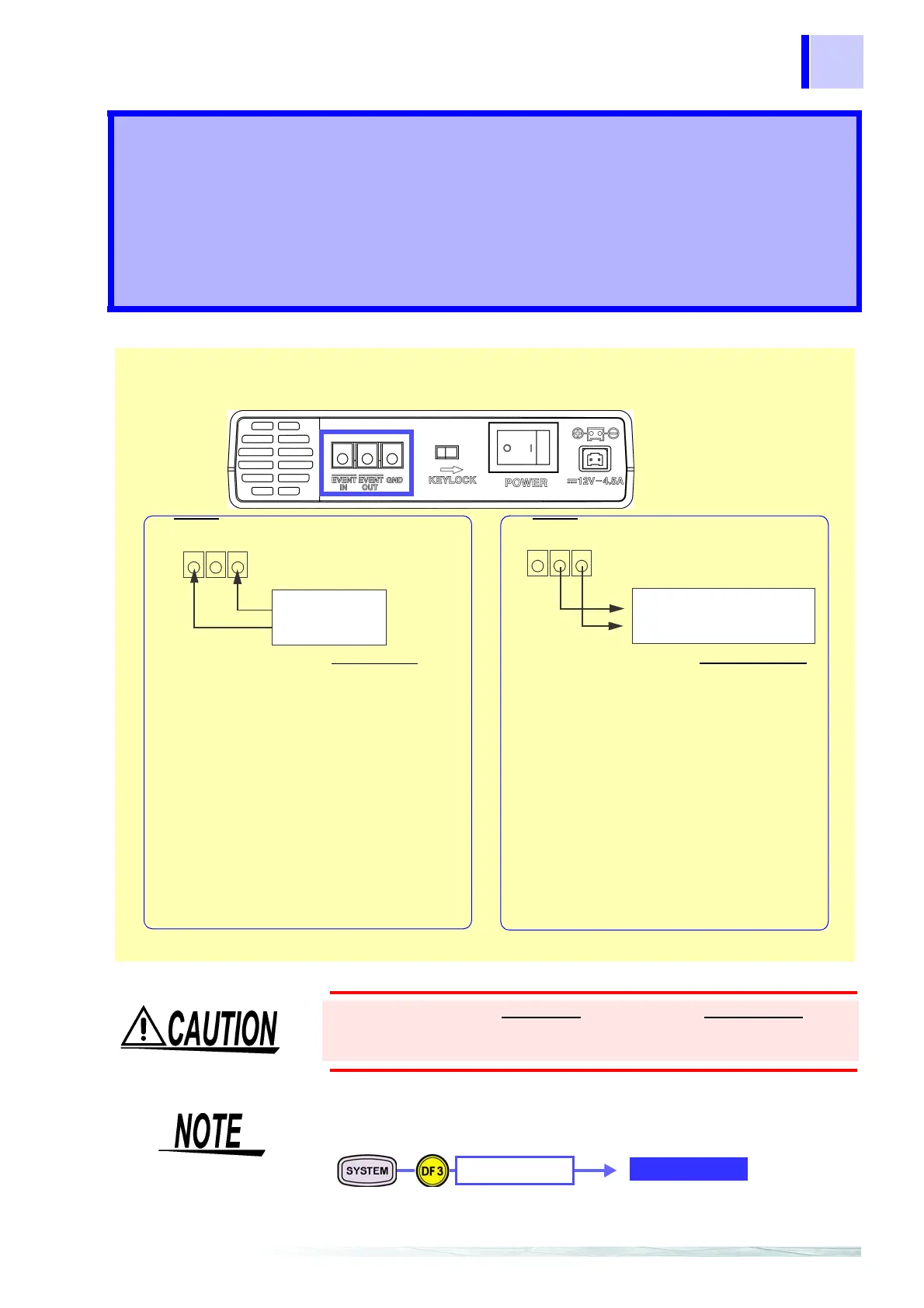

You can enter events and output event occurrence times with the external control terminals.
To avoid damaging this device, do not input voltages outside the
ranges -5 V to +10 V (EVENT IN
) or 0 to +50 V (EVENT OUT) to the
external control terminals.
When using the external control terminals, to use the external event
function, set the external event to ON.
Event output terminal (EVENT OUT)
This informs an external device when
anomalies occur within the 3196.
When you connect the event output ter-
minal to a trigger input terminal on a
waveform recording device such as the
HIOKI MEMORY HiCORDER, you can
record waveforms on the MEMORY
HiCORDER when events occur.
❖ 8.3 "Event Output Terminal (EVENT
OUT)" (page 138)
Event input terminal (EVENT IN)
Synchronized with an external device,
analyzes anomalies.
When you connect the search signal of
an anomaly search device such as an
overcurrent relay to the event input ter-
minal, you can analyze anomalies using
this device according to anomaly opera-
tions.
❖ 8.2 "Event Input Terminal (EVENT
IN)" (page 137)
HIOKI
MEMORY HiCORDER
Trigger input terminal
Anomaly
search device
IN GND GND
EVENT
OUT
EVENT
VOLTAGE
External
ON
