7.3 Event Settings
126
7.3.2 Harmonics Event Setting

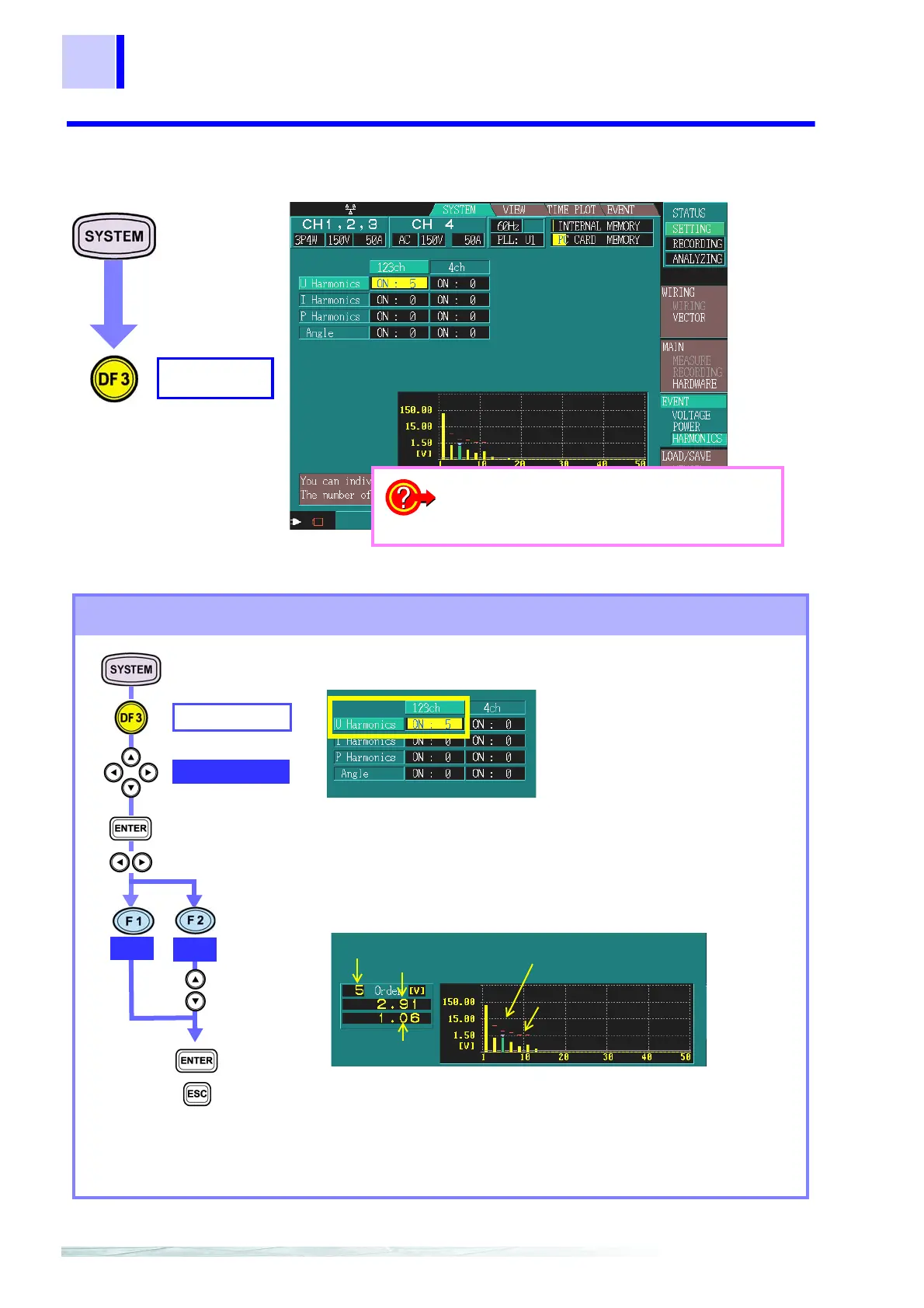

Make the following settings in the SYSTEM screen.
EVENT
HARMONICS
❖ Event ON/OFF settings and threshold
settings (page 126)
Event ON/OFF settings and threshold settings
HARMONICS
U Harmonics
Confirm
Cancel
OFF
Disables voltage harmonic event functions
ON
Enables voltage harmonic event functions
Set ON or OFF for each har-
monic order.
(ON: numeric value)
The numeric value indicates the
total number of harmonic orders
set to ON.
Select the harmonic
order
OFF
ON
Make threshold
settings
Bar (green) of harmonic
order being set
Harmonic order being set
Measured
value
Threshold(red)
Threshold
Events set are stored internally regardless of the event ON/
OFF setting.
Event triggers are not effective until the event setting is set to
ON.
(Example)
