7.3 Event Settings
125

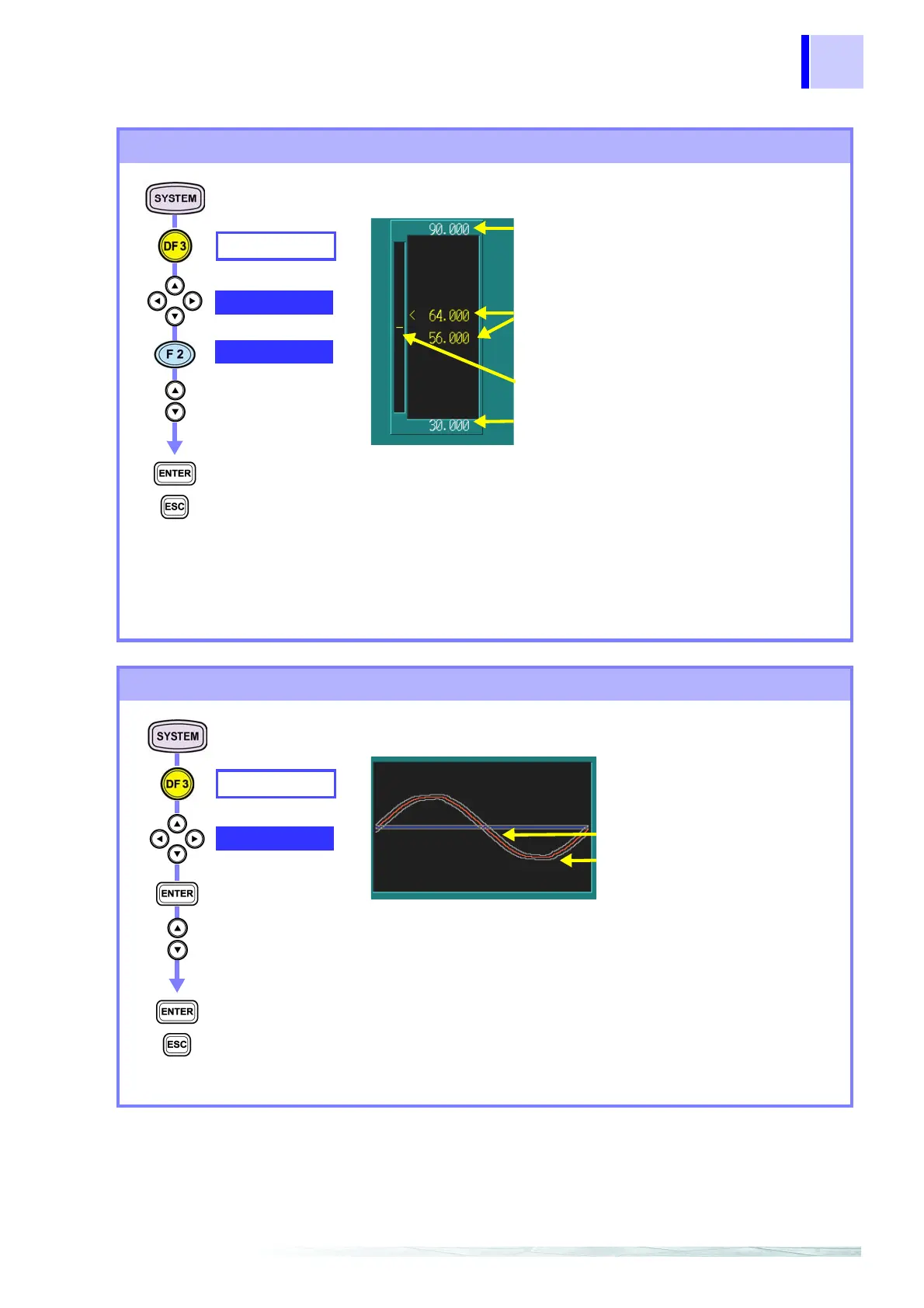

Setting of event thresholds
VOLTAGE
Confirm
Cancel
Make threshold
settings
Upper settable threshold limit
Currently set threshold
Current measurement value
Lower settable threshold limit
ON
Thresholds can be set while viewing the current measure-
ment values.
Events set are stored internally regardless of the event ON/
OFF setting.
Event triggers are not effective until the event setting is set to
ON.
Frequency
(Example)
Setting of event thresholds (voltage waveform comparison)
VOLTAGE
U wave
Confirm
Cancel
Make threshold
settings
When the measured waveform exceeds the waveform enve-
lope level, a voltage waveform comparison event is gener-
ated.
Events set are stored internally regardless of the event ON/
OFF setting.
Event triggers are not effective until the event setting is set to
ON.
Waveform currently being measured
Upper side of waveform envelope leve
l
Lower side of waveform envelope leve
l
(waveform comparison)
