7.3 Event Settings
124

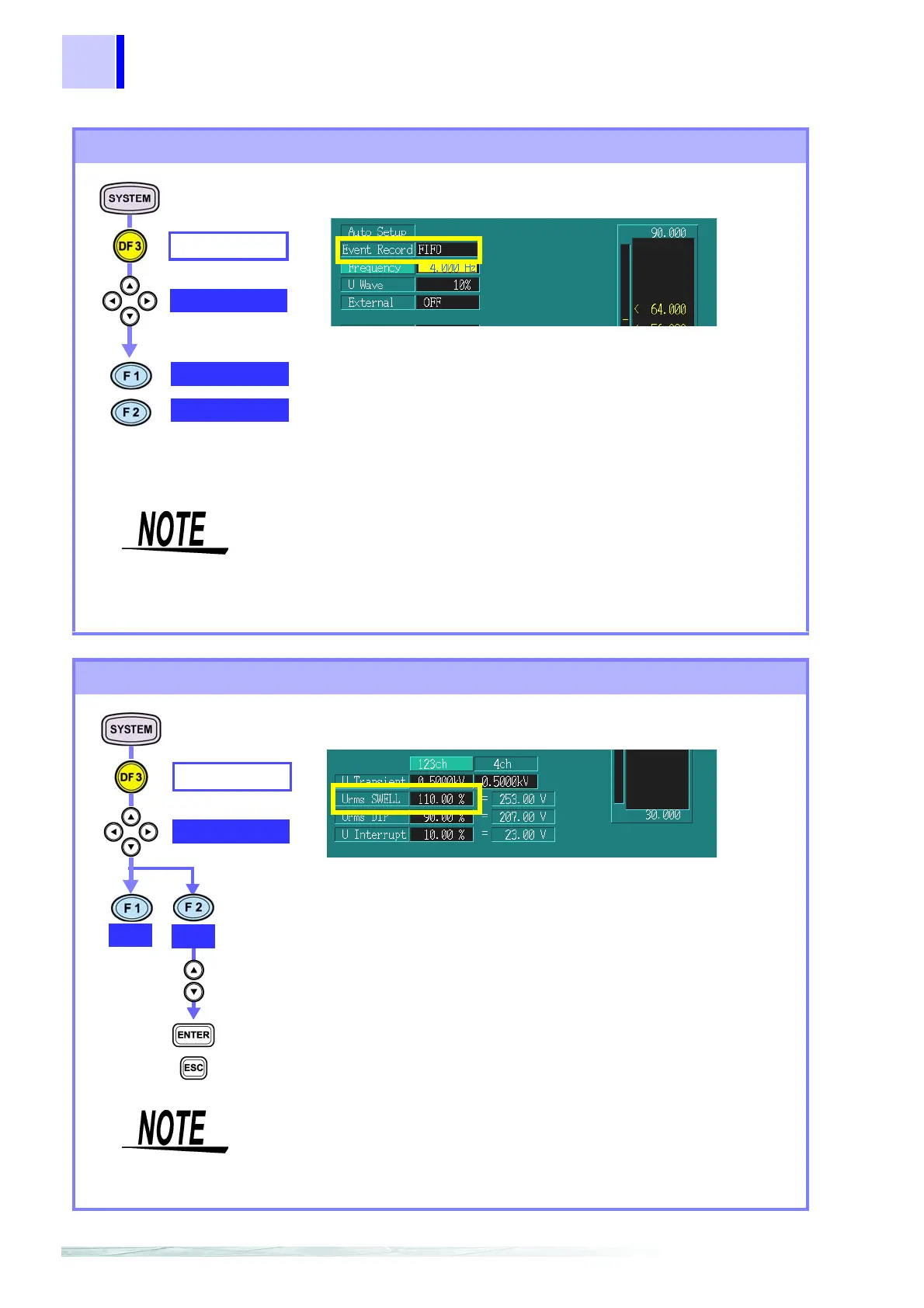

Setting the event recording sequence
The event recording sequence cannot be changed during post-
measurement analysis.
The order of event priority cannot be changed.
See the Appendix regarding the internal setting of the event prior-
ity order.
❖ Event Recording Sequence (Priority Order) (page 230)
VOLTAGE
Event Record
Set the order in which events (voltage, power, and harmonic
are displayed in the event list screen.
FIFO
(Time order)
Events are listed in the order in which they oc-
curred.
Priority
(Priority order)
Events are listed in worst-case order (according to
severity).
FIFO
Priority
Event ON/OFF settings
The thresholds for voltage swell, voltage dip, and voltage interrup-
tion are set as percentages of the nominal voltage.
❖ Nominal voltage settings (page 52)
Voltage equivalents of percentage values are displayed on the
right side.
VOLTAGE
Urms SWELL
Confirm
Cancel
OFF
Disables voltage swell event functions
ON
Enables voltage swell event functions
Make threshold settings
Make threshold
settings
OFF
ON
(Example)
To Next Page
