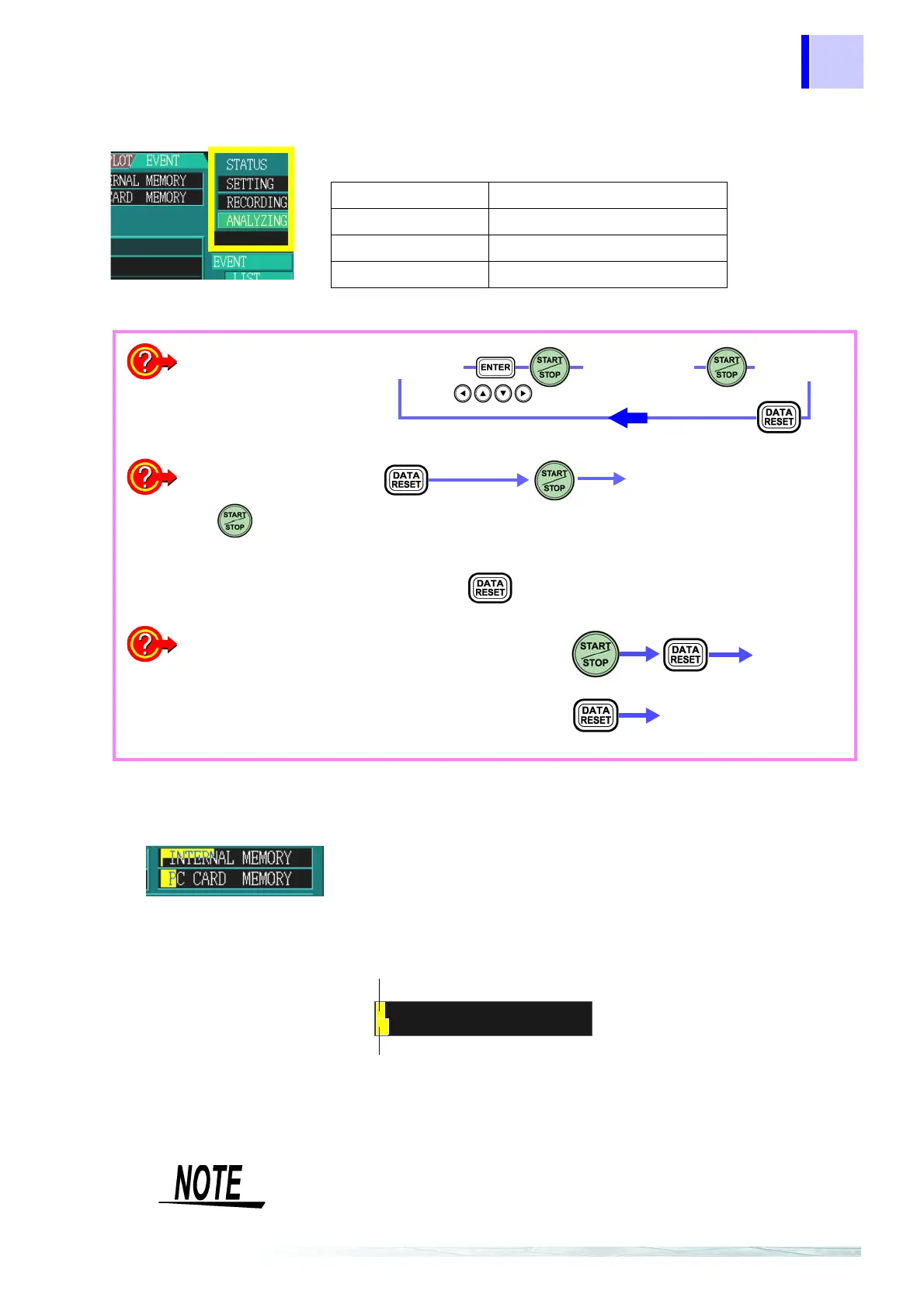

7.1 Using the EVENT Screen
117
Screen operations depending on the internal operation status
Screen operations are limited according to the internal operation sta-
tus.
Can be used in the SETTING status only with the event monitor.
Memory status display
Status
Display update
[SETTING]
None
[RECORDING]
Each time an event occurs
[ANALYZING]
Stop
What is the relationship
between the operation status
and key operations?
The key does not
start recording during
[ANALYZING] operation!
Changing settings while
[RECORDING] or [ANALYZ-
ING]
is displayed?
In either case, data stored in internal memory is erased.
[RECORDING]
[ANALYZING
] [
SETTING]
Return to the setting
mode from analysis
Start recording
[RECORDING]
CAUTION!
Pressing erases all data stored in internal memory.
[SETTING
]
D
uring [RECORDING]
o
peration:
During [ANALYZING]
operation:
[SETTING]
INTERNAL MEMORY: Internal memory
PC CARD MEMORY: ATA flash card
INTERNAL MEMORY
TIME PLOT related data capacity
Measurement stops when memory becomes full.
(Selectable Stop/Continuous)
Up to 100 EVENT data sets can be stored
After 100 events are stored, the earliest are overwritten.
While only 100 events can be recorded in internal memory, up to
1,000 events can be stored on a PC card.
