8.3 Multiplexer Settings
159
8
6

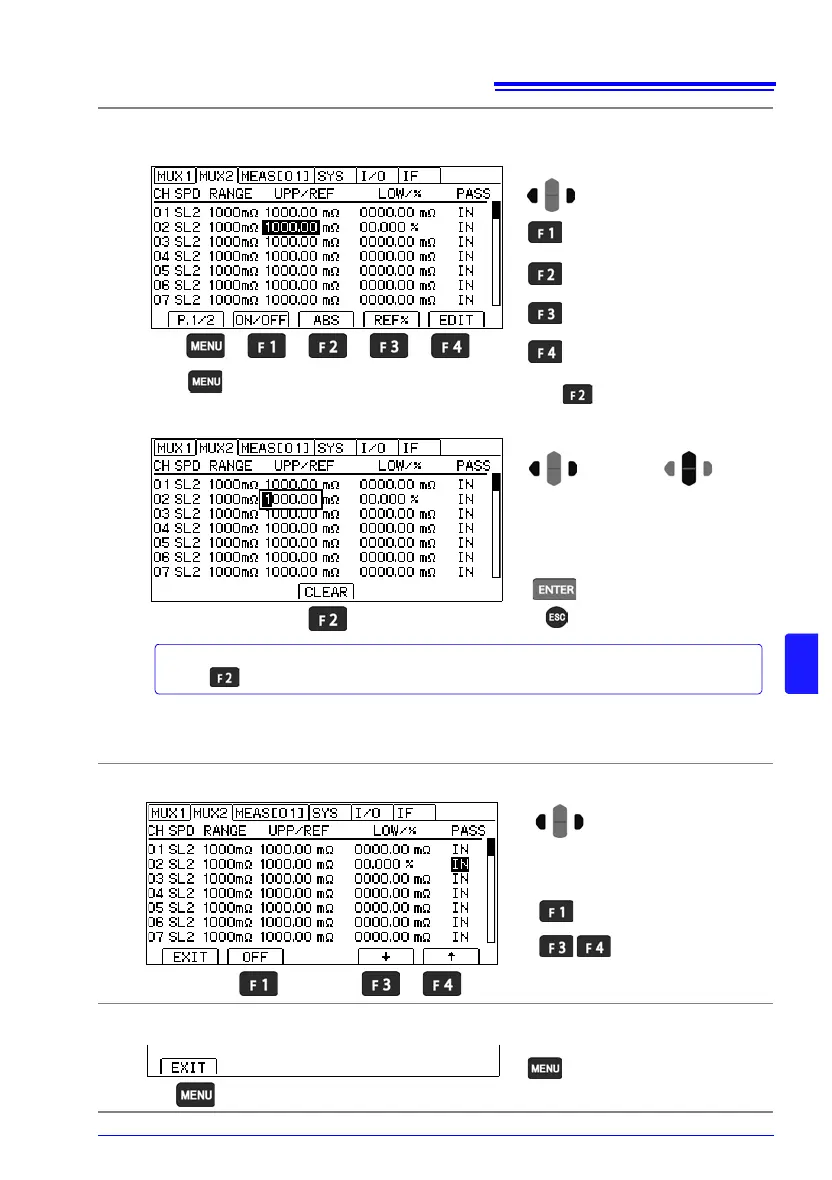

Set the comparator.
1. Determine the judgment method.
2. Set the upper limit value or reference value.
3. Set the lower limit value or allowable range.
Move to the LOW/±% parameter with the left and right cursor keys and set the
lower limit value or absolute value in the same manner.
7
Set the PASS condition (when the scan function is set to auto or step only).
8
Return to the Measurement screen.
1
2
Enable or disable compara-
tor.
Set the judgment mode to
ABS (UPP, LOW).
Set the judgment mode to
REF%.
Move to the UPP/REF
parameter.
3
Make the value editable.
When using REF% mode and a channel other than CH1, you can use the CH1 mea-
surement results as the reference value by pressing on MENU P.2/2.
1
Move the cursor to the digit you
wish to set with the left and right
cursor keys. Change the value
with the up and down cursor keys.
Change
values.
Move among
digits.
2
Accept
( Cancel)
To Reset Numerical Values
Press to clear the value. The value will be reset to 0.
1
Select the PASS
condition.
2
Move the cursor to the PASS
CONDITION parameter.
Set the PASS condition
to OFF.
Return to the
Measurement screen.
