8.7 Example Connections and Settings
168

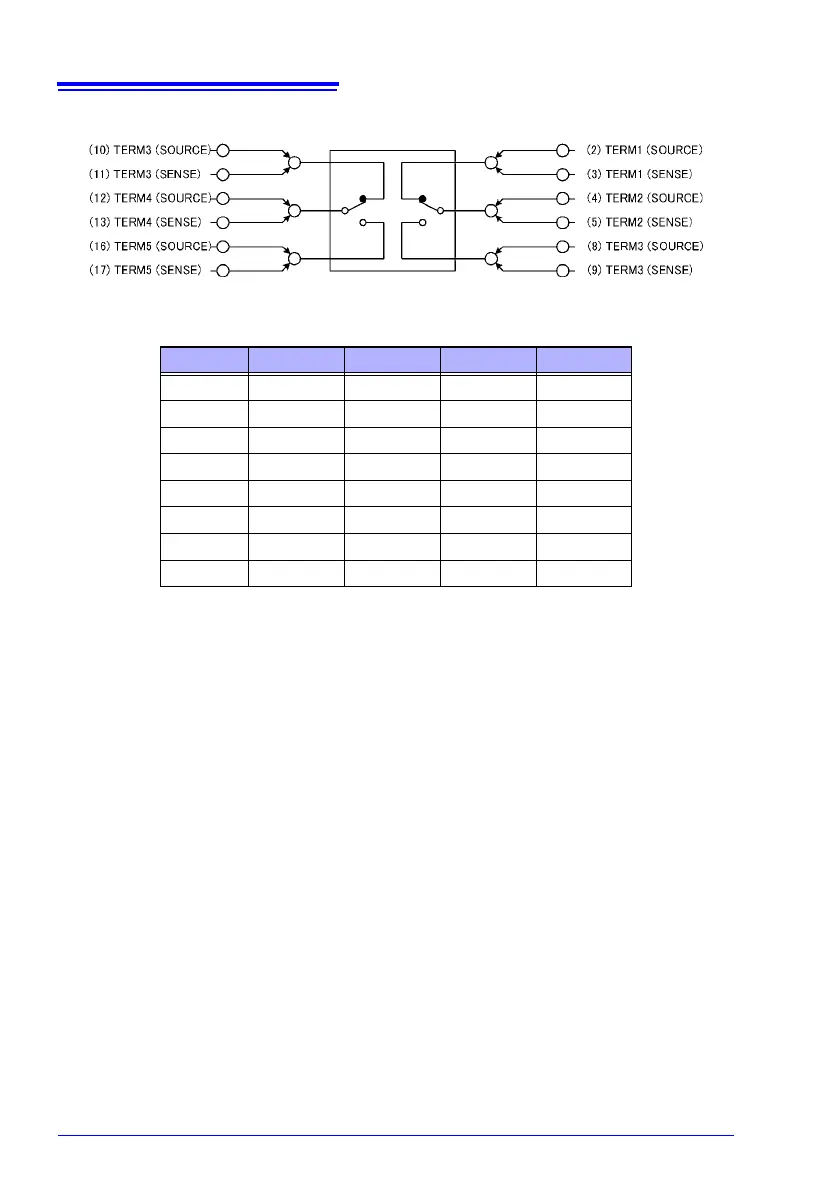

Example power switch settings
(A step scan is used, with switches being switched between channels 2 and 3
and between channels 6 and 7. Open resistance measurement is performed
for channels 2, 3, 6, and 7 using the 1,000 M range.)
MUX settings
CH INST. UNIT TERM A TERM B
1 RM3545 UNIT1 1 2
2 RM3545 UNIT1 2 3
3 RM3545 UNIT1 1 2
4 RM3545 UNIT1 2 3
5 RM3545 UNIT1 3 4
6 RM3545 UNIT1 4 5
7 RM3545 UNIT1 3 4
8 RM3545 UNIT1 4 5
