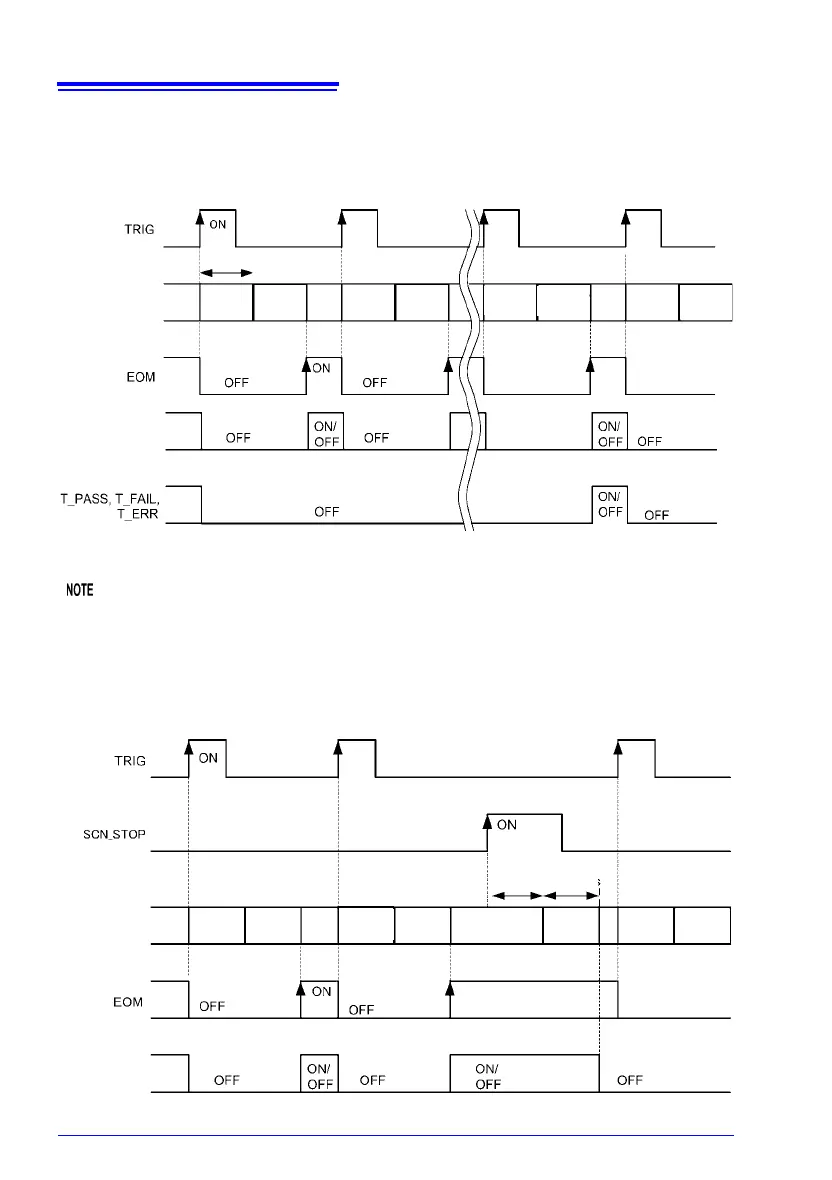

10.2 Timing Chart
198
(3) Scan function: Step
After the trigger, processing switches to the next channel and measurement is performed.
The total judgment (T_PASS, T_FAIL, T_ERR) signals are only output once measurement
of the last channel is complete.
• Once the TRIG signal turns on after measurement of all channels is complete, measure-
ment will start again with the first channel.
• During scanning, the TRIG, CAL, and 0ADJ signals are ignored without being held.
• For channels for which an externally connected device is selected, EOM will turn on after
switching processing completes.
SCN_STOP operation
State
Judgment result/
BCD
Judgment result/ BCD: HI, IN, LO, ERR, PASS, FAIL, BCDm-n, RNG_OUT0 to 3
In this example, channels 1 through 20 have been set to ON.
Switching time
Switching
processing
Channel 1
Measure-
ment
Switching
processing
Channel 20
Measure-
ment
Switching
processing
Channel 2
Measure-
ment
Switching
processing
Channel 1
Measure-
ment
Switching
processing
Switching
processing
Channel 2
Measure-
ment
Reset
processing
Switching
processing
Channel 1
Measure-
ment
Channel 1
Measure-
ment
State
Judgment result/
BCD
Approx.
15 ms
Approx.
10 ms
