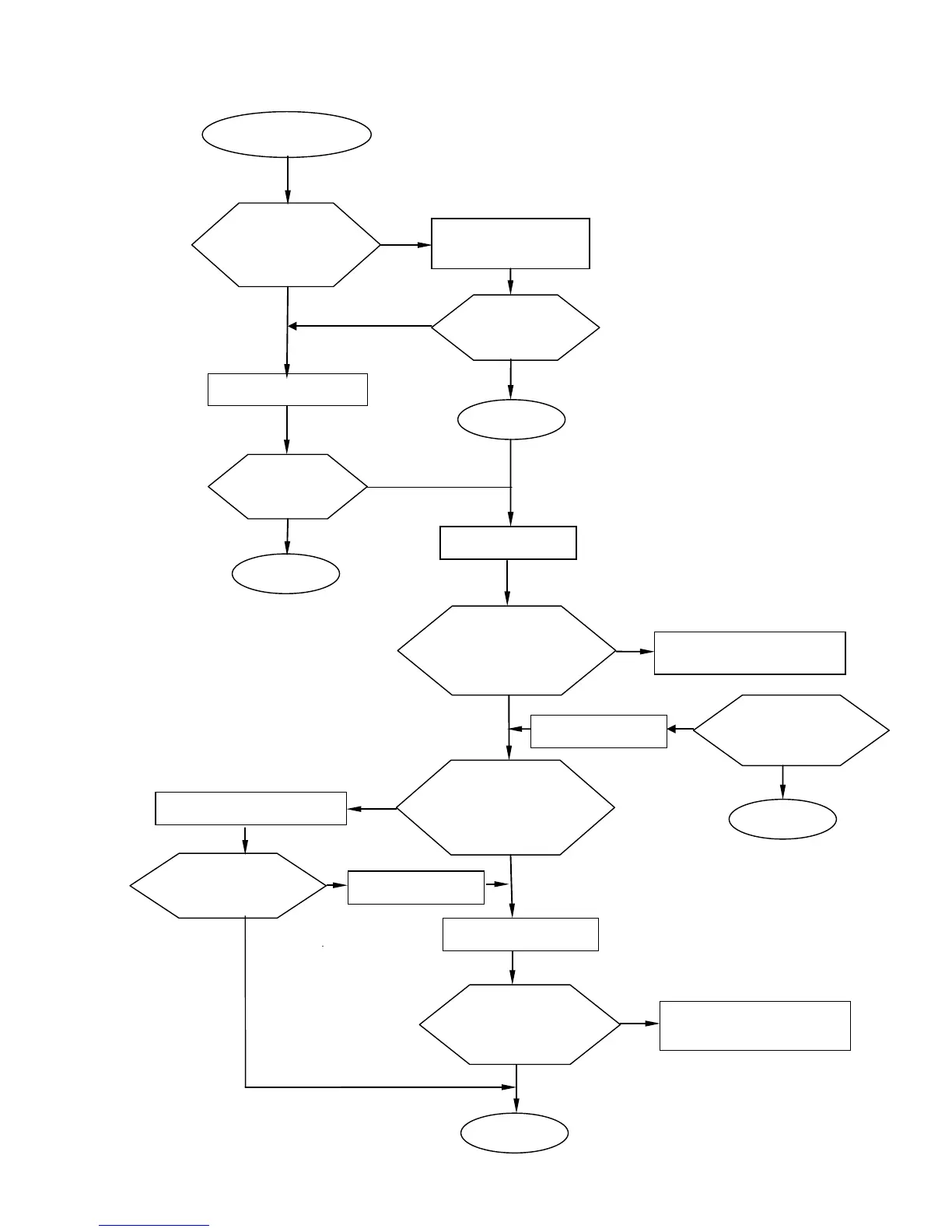

6.5.25 Cartridge-ID read failure
Cartridge-ID read
failure
Is the distance
between cartridge
bottle and IJP
30mm or smaller?
Move the cartridge bottle
closer to “Scan here” of
IJP
Can the
cartridge-ID be
read?
End
Prepare the other
cartridge bottle
Can the
cartridge-ID be
read?
End
Turn OFF power.
Is CN27 connector on
EZJ126 board
disconnected or having
poor connection?
Remove CN27 connector once
and reconnect it.
Replace RFID reader.
Turn OFF and ON
power and retry
reading cartridge-ID.
End
Restore RFID reader to the
original one and then replace
EZJ126 board.
Caution*
For the cartridge-ID which
cannot be read at the first
scan, there is a possibility of
breakdown of ID tag.
In this case, input the
cartridge-ID manually.
Is the connector of
RFID reader side
disconnected or having
poor connection?
Yes
Yes
Yes
No
No
No
No
No
No
Yes
Yes
Remove connector once and
reconnect it.
Turn OFF and ON
power and retry
reading cartridge-ID.
No
Yes
Turn OFF and ON
power and retry
reading cartridge-ID.
Yes
No
Yes
End
Turn OFF power.
Turn OFF power.
