Hitachi UX Twin Nozzle Service Manual

3-16

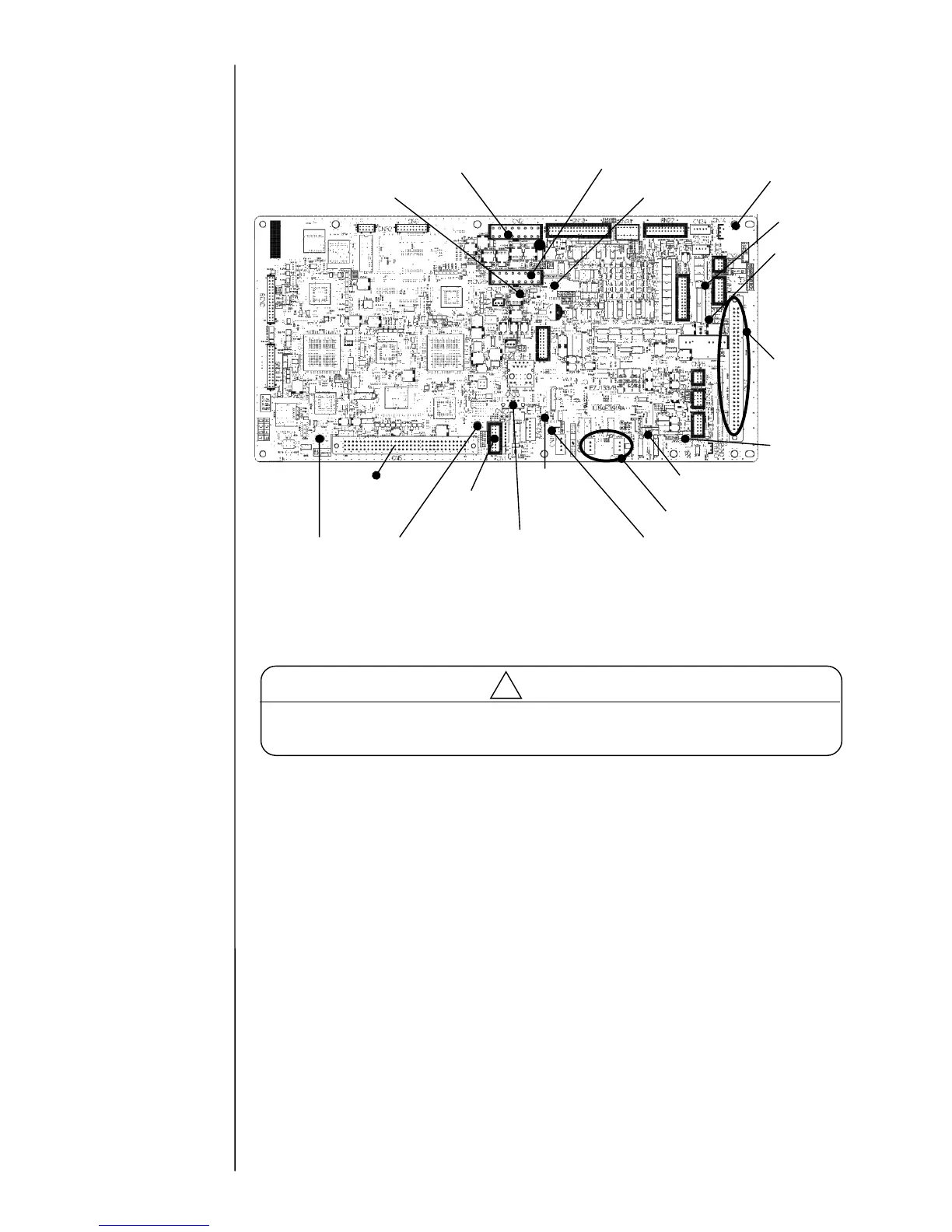

[EZJ133 board external views]
- Please use the Rescue soft when IJ printer does not normally start up after
exchanging substrates.（Refer to “2.20 Rescue soft” for detail）
Caution
！
Two hexagonal spacers
for fixing EZJ125
CN5: Connector for
EZJ125 board
CN15: Connector for Language key
CN25: Connector for Model key
Connector
for EZJ128
LED1
CN27: Connector for
RFID reader
TP17: “Print-in-progress”
TP23 “APH signal”
TP24 “PTC signal”
CN10: Connector for
EZJ130 board
TP22: “Sensor-N”
TP21: “Encoder-N”
CN14: Connector for
battery connection
TP5: “PGND”
CN2: Connector for
Power supply1 connection
CN28: Connector for
Power supply 2 connection
Fixing screw
