Servo Drive Configuration E1 Series Servo Drive Thunder Software Operation Manual
4-46 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

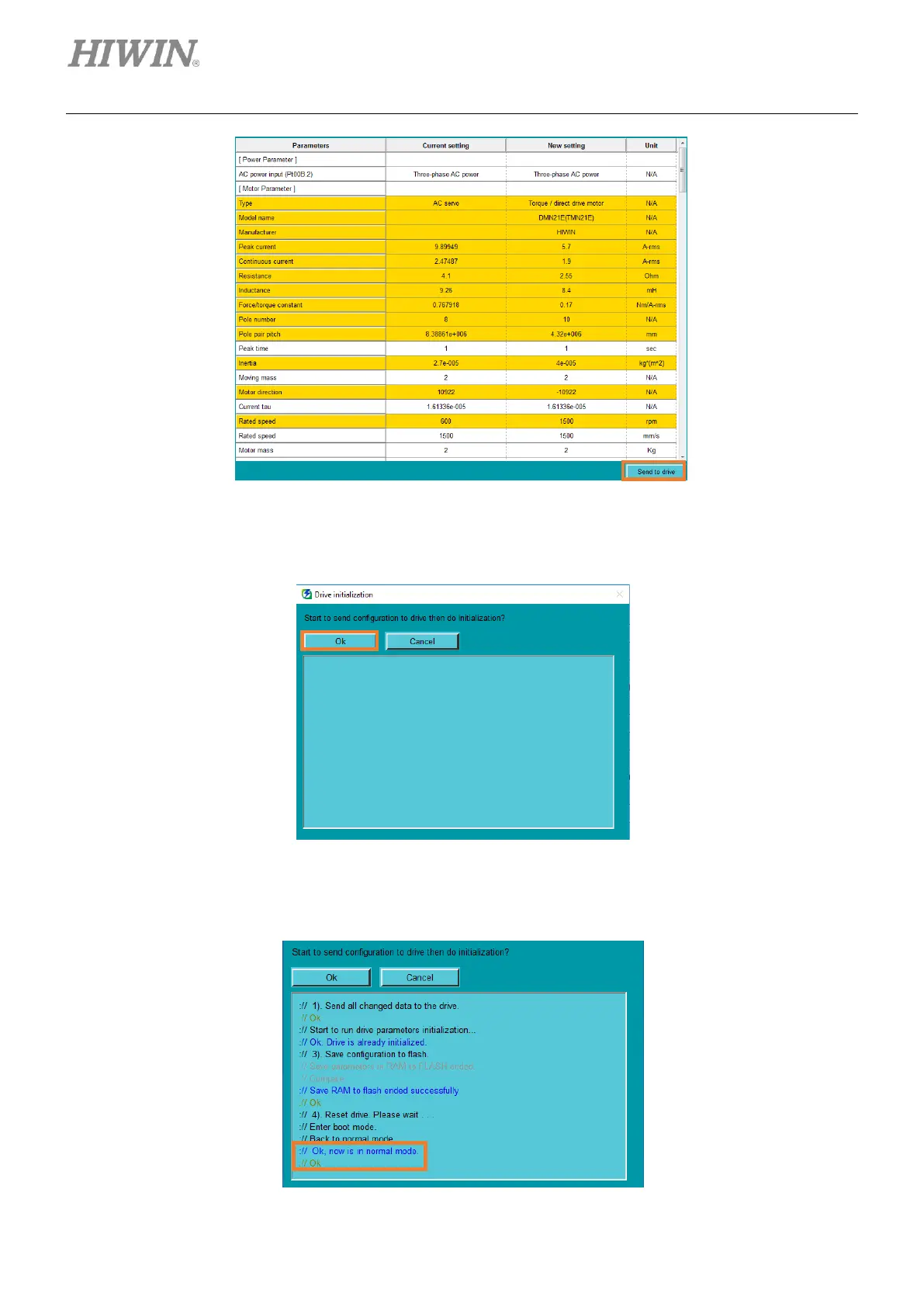

Figure 4.3.9.2
3. Click Ok. At this time, the servo drive will be power cycled.
Figure 4.3.9.3
4. After the servo drive is power cycled, servo drive configuration is done.
Figure 4.3.9.4
