Advanced Functions E1 Series Servo Drive Thunder Software Operation Manual
9-20 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012
9.3.2 Interface introduction

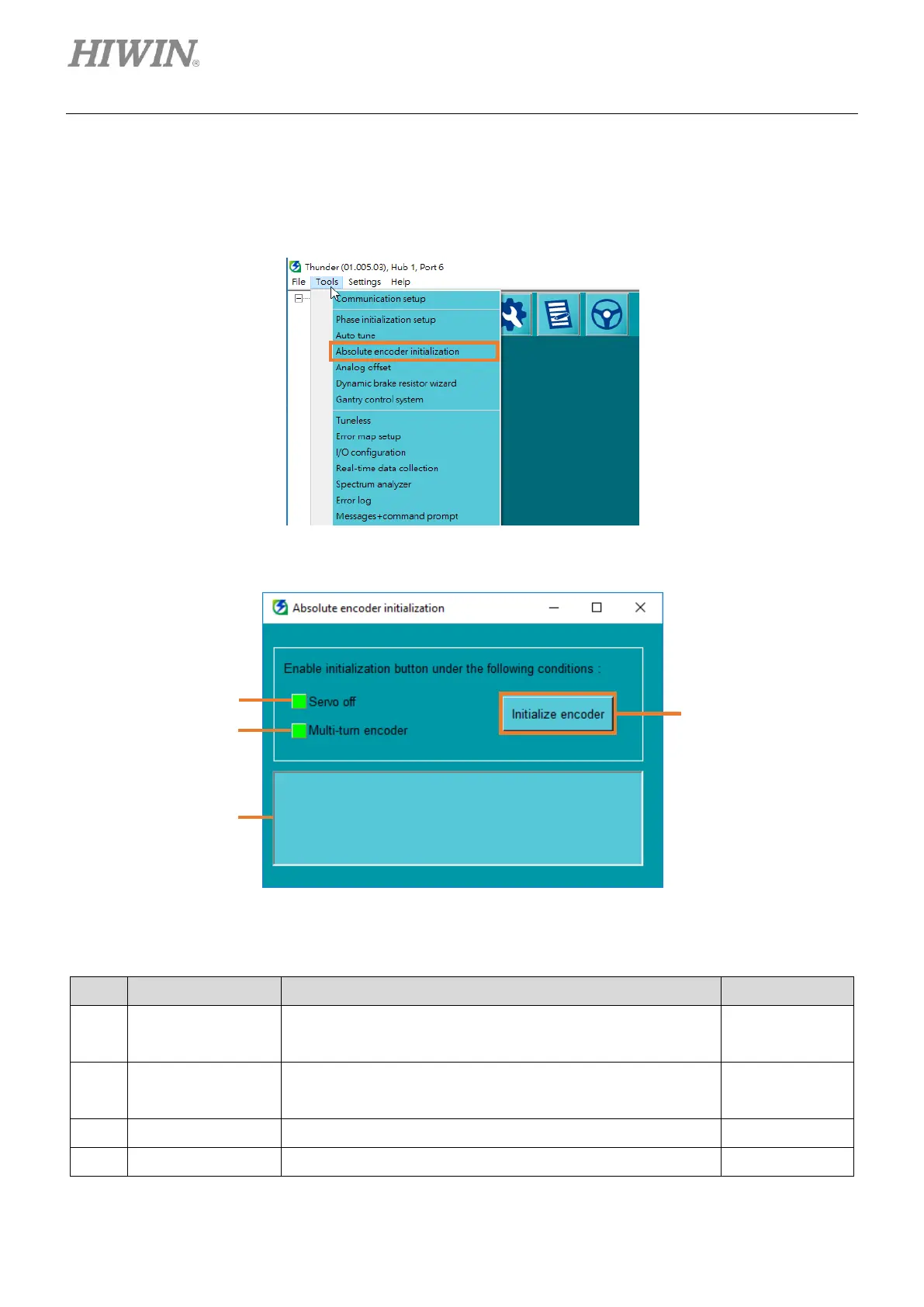

Select Tools in the menu bar and click Absolute encoder initialization to open “Absolute encoder
initialization” window.
Figure 9.3.2.1
Figure 9.3.2.2
Table 9.3.2.1
No.
Item
Description
Reference
(1)
Servo off
When it lights up in green, the servo drive is at “Servo OFF”
state.
--
(2)
Multi-turn encoder
When it lights up in green, the encoder type is multi-turn
encoder.
--
(3)
Message field
Display the messages for the process of encoder initialization.
section 9.3.2.1
(4)
Initialize encoder
Click Initialize encoder to perform encoder initialization.
--
(1)
(2)
(3)
(4)
