4.2 Pre-configuration function
Before servo drive configuration, users can select servo motor type, encoder type and the usage of ESC.

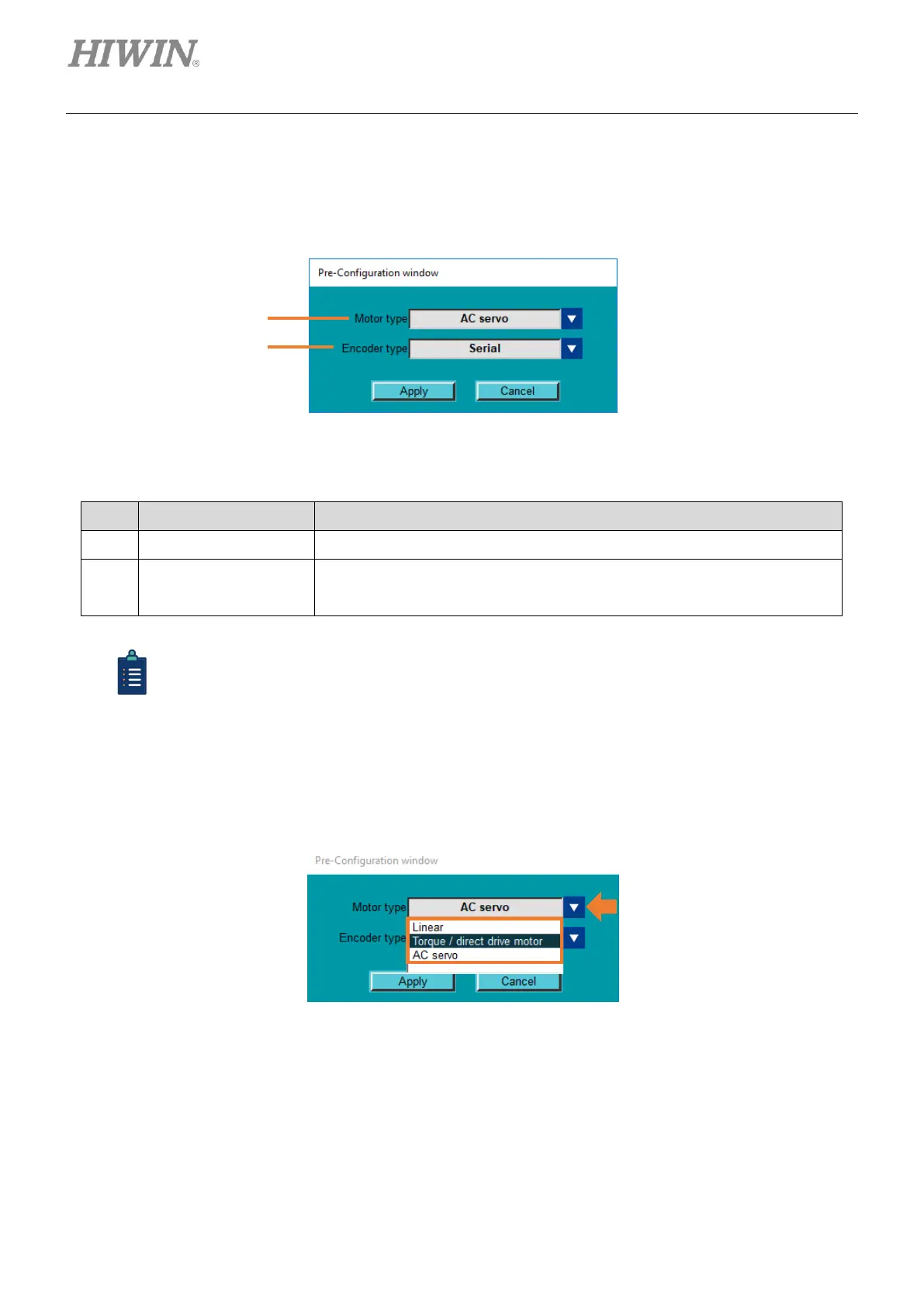

Figure 4.2.1
Table 4.2.1
No.
Item
Description
(1)
Menu of servo motor
Select servo motor type: Linear, Torque / direct drive motor or AC servo
(2)
Menu of encoder
Select encoder format: Analog + Smart cube, Digital, Digital + Smart cube,
Serial or Serial + Smart cube
Information
If servo drive configuration is done, this window will not show up.
Follow the procedure below to complete pre-configuration function setting.
1. Select servo motor type.
Figure 4.2.2
(1)
(2)
