9.6.3 Activate error map
Users can activate error map and observe error line chart here.

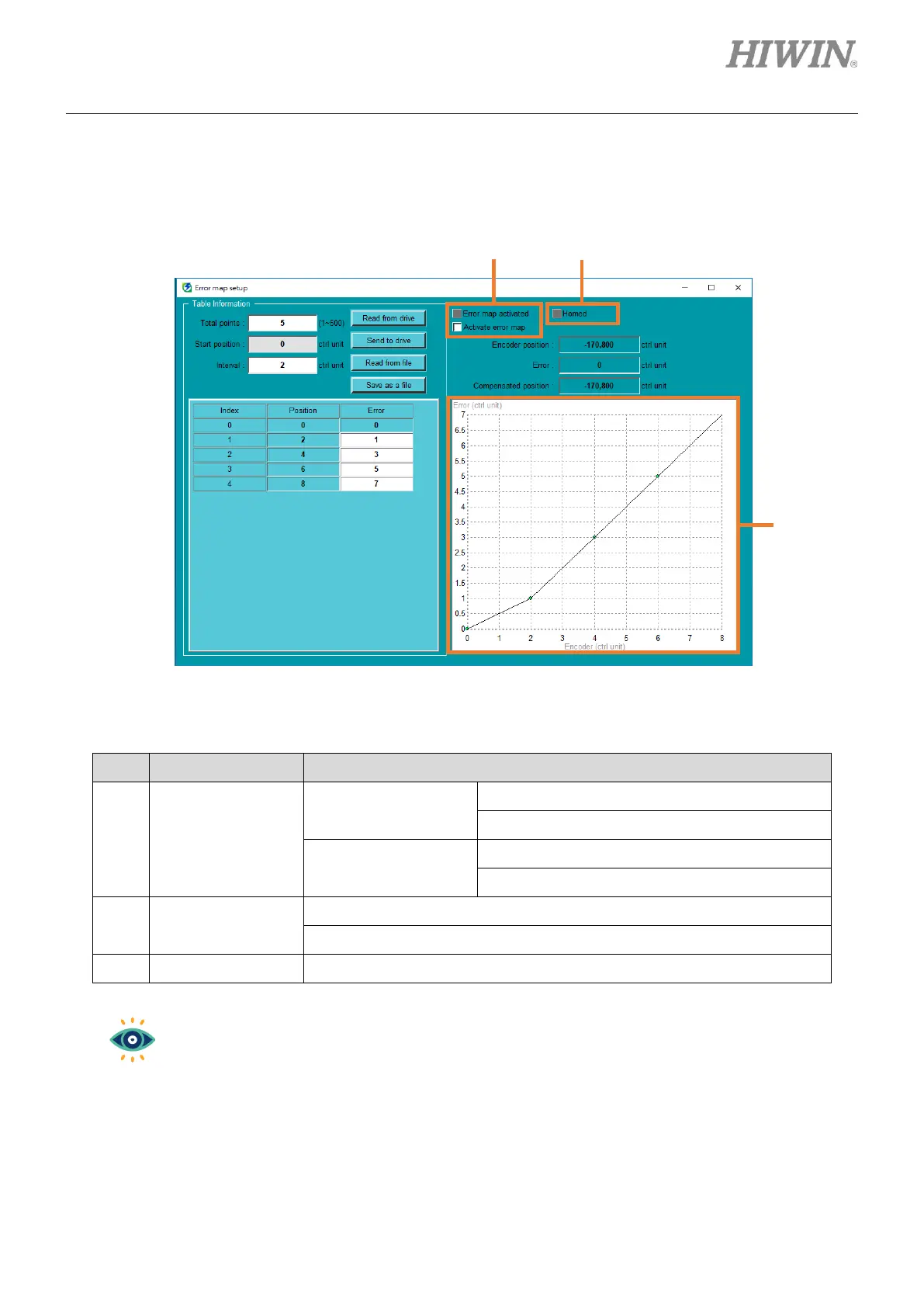

Figure 9.6.3.1
Table 9.6.3.1
No.
Item
Description
(1)
Error map
Error map activated
No light: Error map is not activated.
Lights up in green: Error map is activated.
Activate error map
Unchecked: Do not activate error map.
Checked: Activate error map.
(2)
Homed
No light: Homing is not completed.
Lights up in green: Homing is completed.
(3)
Error line chart
Users can observe error line chart here.
Important
(1) If incremental encoder is used, complete homing first before activating error map.
(2) To execute homing, deactivate error map first to avoid abnormal actions.
(3) Activate error map cannot be checked or unchecked when the motor is enabled.
