4.3.3.1 Edit motor parameters
The procedure of motor setup is as below.

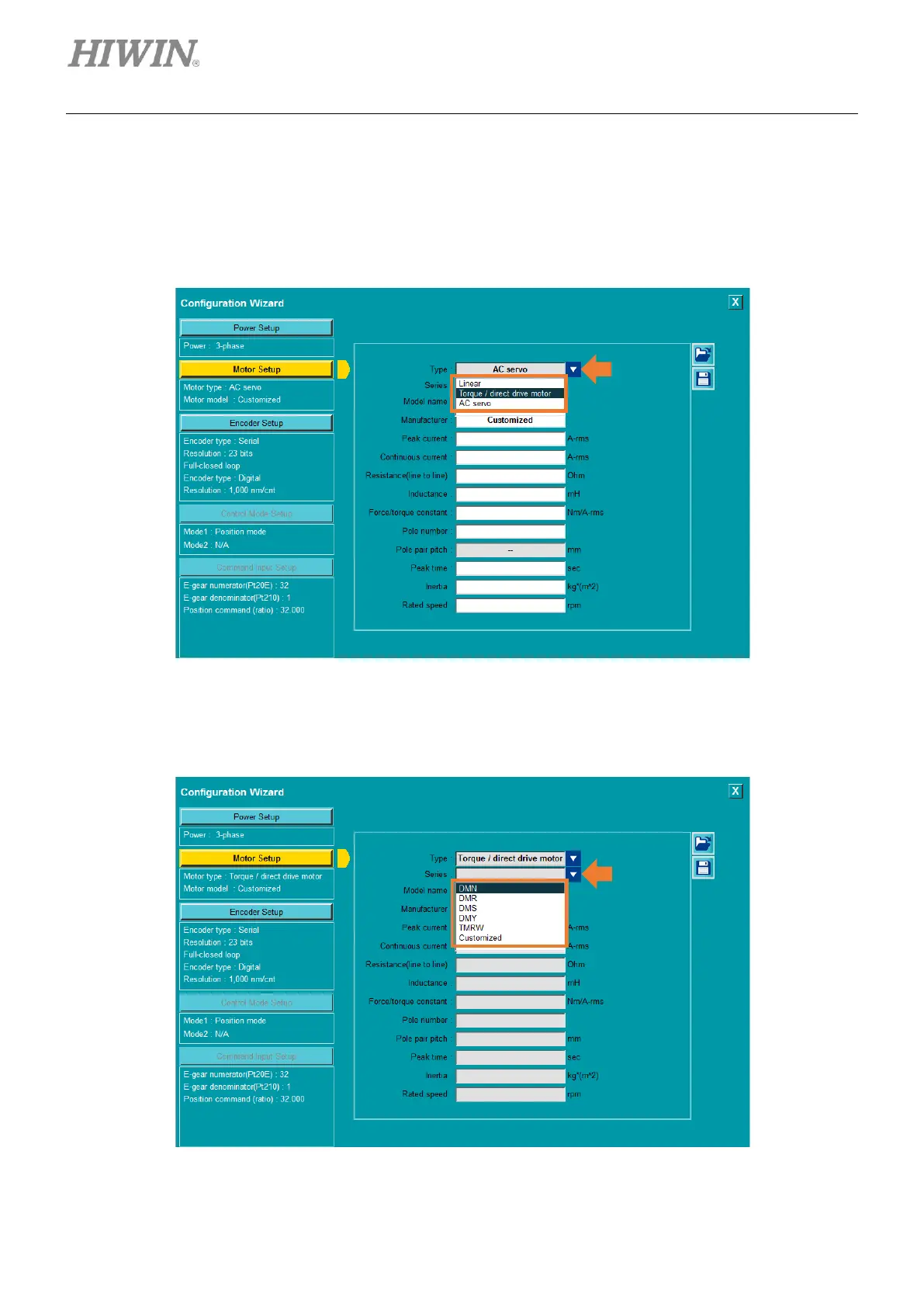

1. Select motor type. Here takes Torque / direct drive motor as an example.
Figure 4.3.3.1.1
2. Select motor series.
Figure 4.3.3.1.2
