10.1 Brief introduction
The basic settings of Thunder interface are introduced in this chapter. With the following functions, users
can change language, perform unit conversion, etc.
10.2 Display unit switching
10.2.1 Brief introduction
Display unit is an aid for interface unit switching. It converts the basic unit defined by servo drive (ctrl unit)
to the physical unit that users are more familiar with or easy to identify. During the converting process,
differences in accuracy will occur due to numerical calculations.

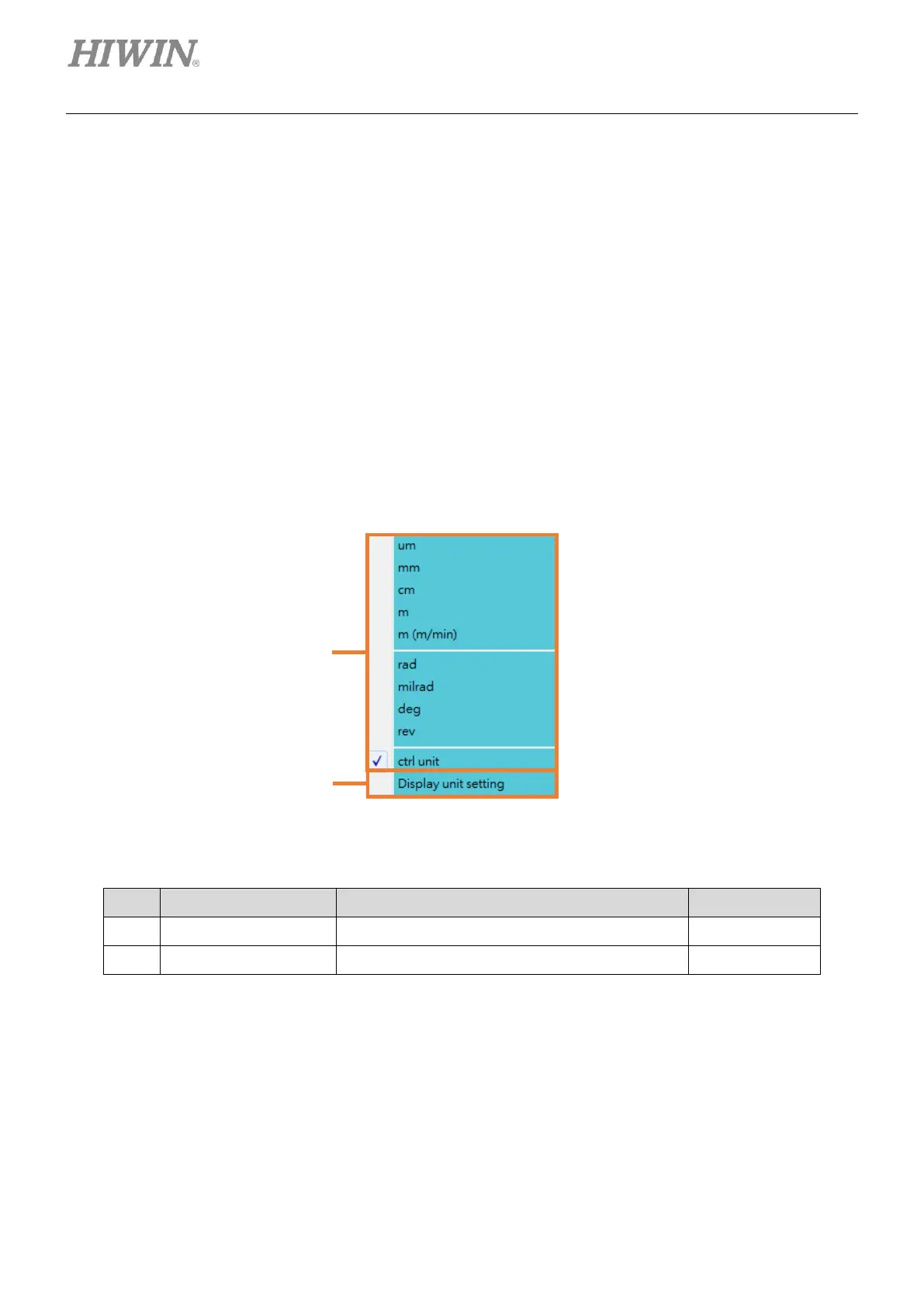

Figure 10.2.1.1
Table 10.2.1.1
No.
Item
Description
Reference
(1)
Display unit selection
Select the available display unit.
section 10.2.2
(2)
Display unit setting
Set the proportion of display unit conversion.
section 10.2.3
(1)
(2)
