E1 Series Servo Drive Thunder Software Operation Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 4-49
MD12UE01-2012
(6)
Effective time of
parameters
If there is an (I) behind the parameter name, it indicates
the parameter will immediately be effective when users
change its value. There is no need to save the changed
value to servo drive and power cycle it.
section 4.4.2.4
4.4.2.1 Parameters comparison

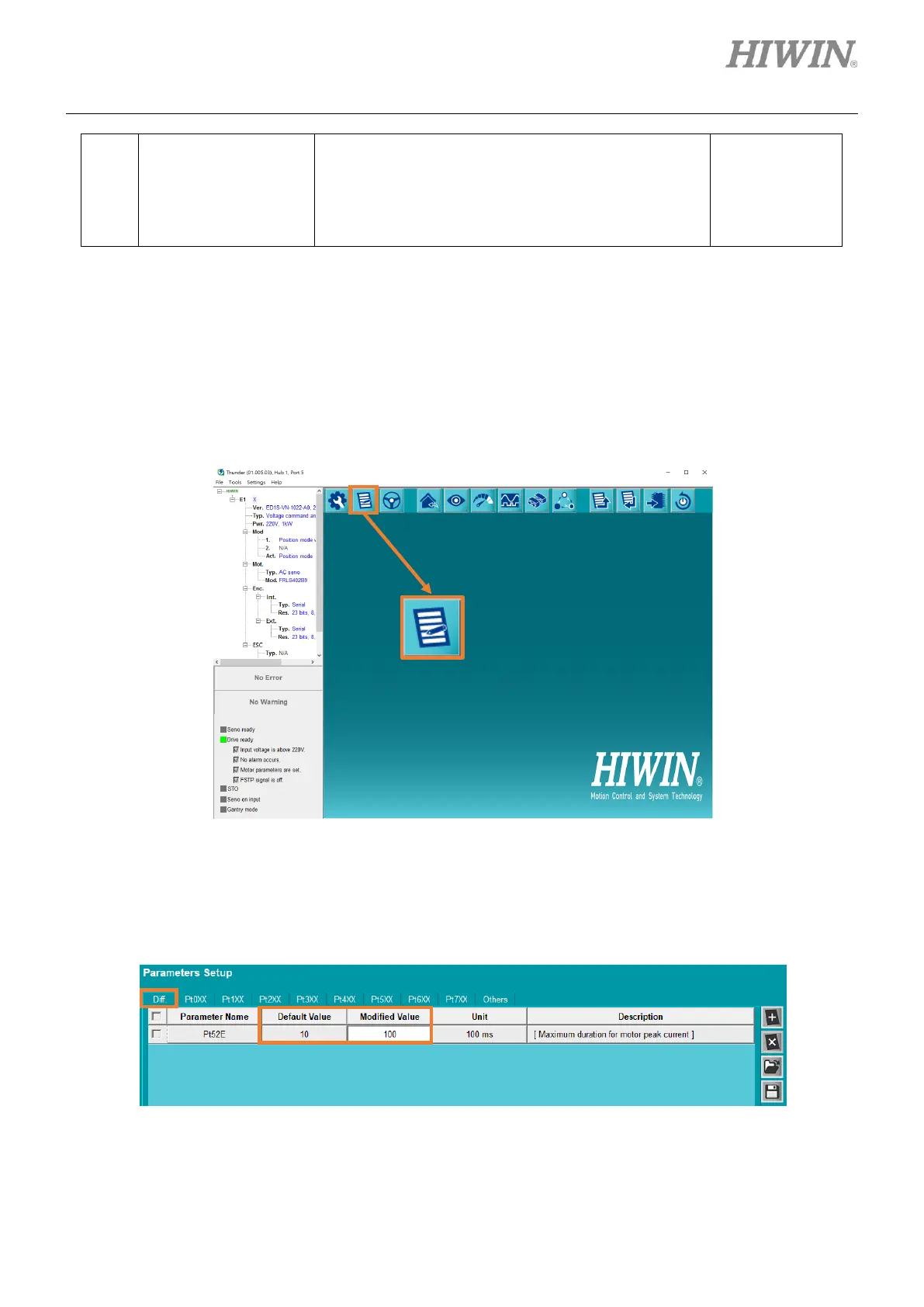

Follow the procedure below to quickly view all the modified Pt parameters.
1. Click “Open Parameters Setup” icon in the toolbar to open “Parameters Setup” window.
Figure 4.4.2.1.1
2. Select Diff. tab. This tab lists all the servo drive Pt parameters different from their default values.
Users can also modify these Pt parameters here.
Figure 4.4.2.1.2
