2. Select motor parameters file (*.mot), and click Open.
Figure 4.3.3.2.4
4.3.4 Encoder Setup
Select the correct format based on the encoder type. Encoder parameters will be automatically filled in
after the selection. This page also provides the following functions:
◆ If there is no suitable encoder resolution, users can fill in the desired encoder parameters.
◆ Users can save encoder parameters as a file (*.enc).

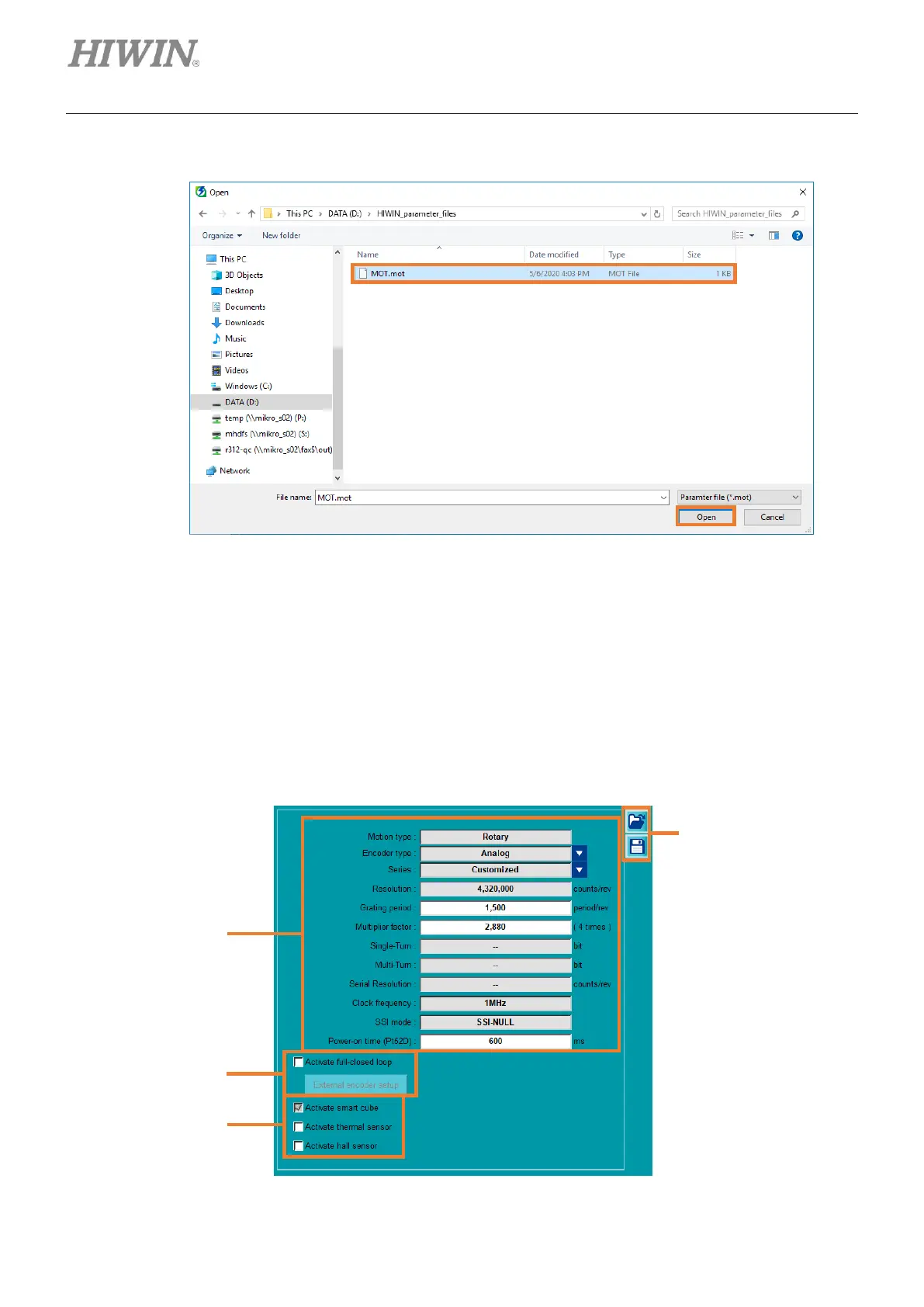

Figure 4.3.4.1
(1)
(2)
(3)
(4)
