Hiwin E1 Series - 7.6.2.3 Set show mode

E1 Series Servo Drive Thunder Software Operation Manual Monitoring
HIWIN MIKROSYSTEM CORP. 7-49
MD12UE01-2012
7.6.2.3 Set show mode

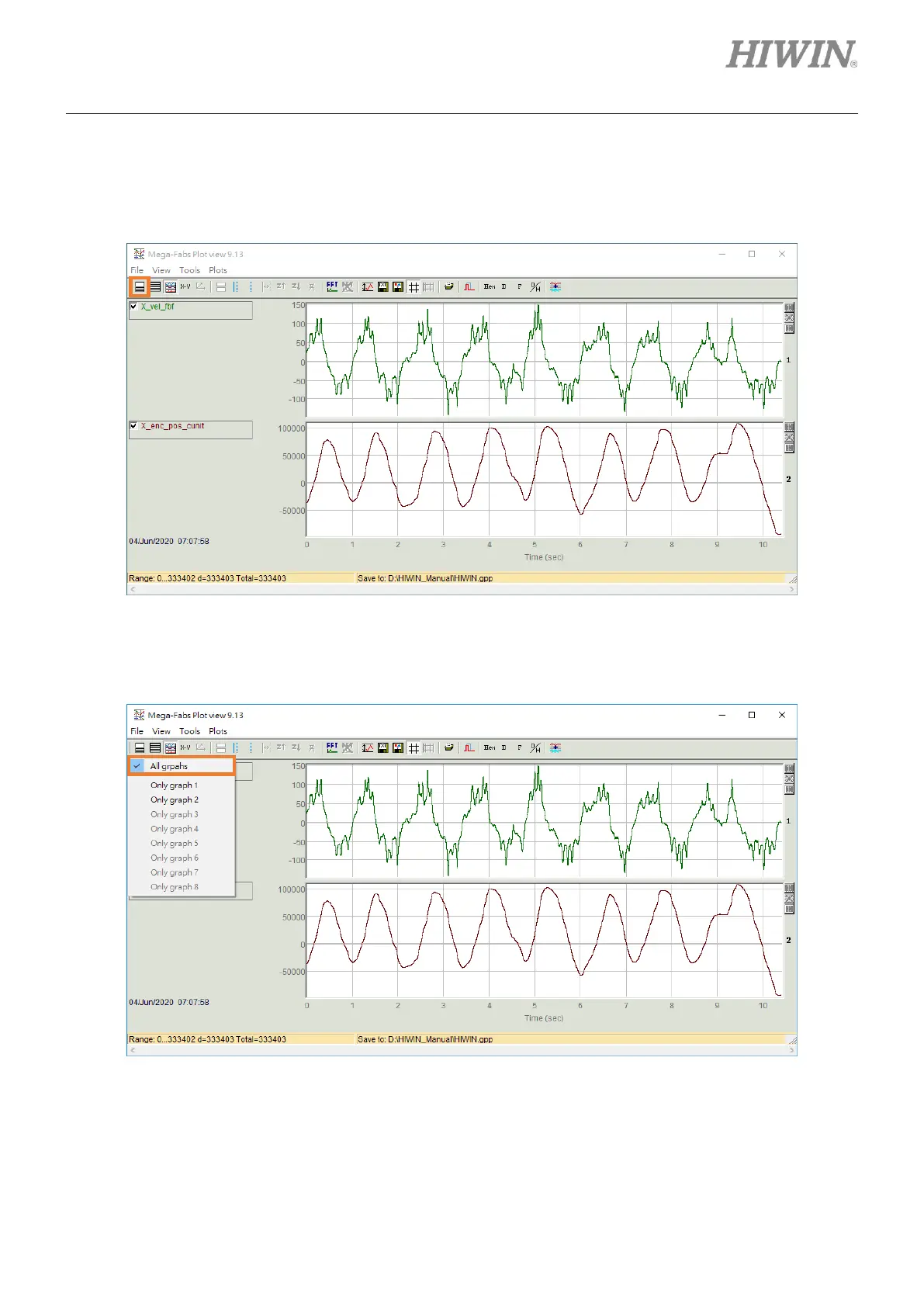

1. Click “Set show mode” icon.
Figure 7.6.2.3.1
2. Select All graphs to observe all recorded waveforms.
Figure 7.6.2.3.2
