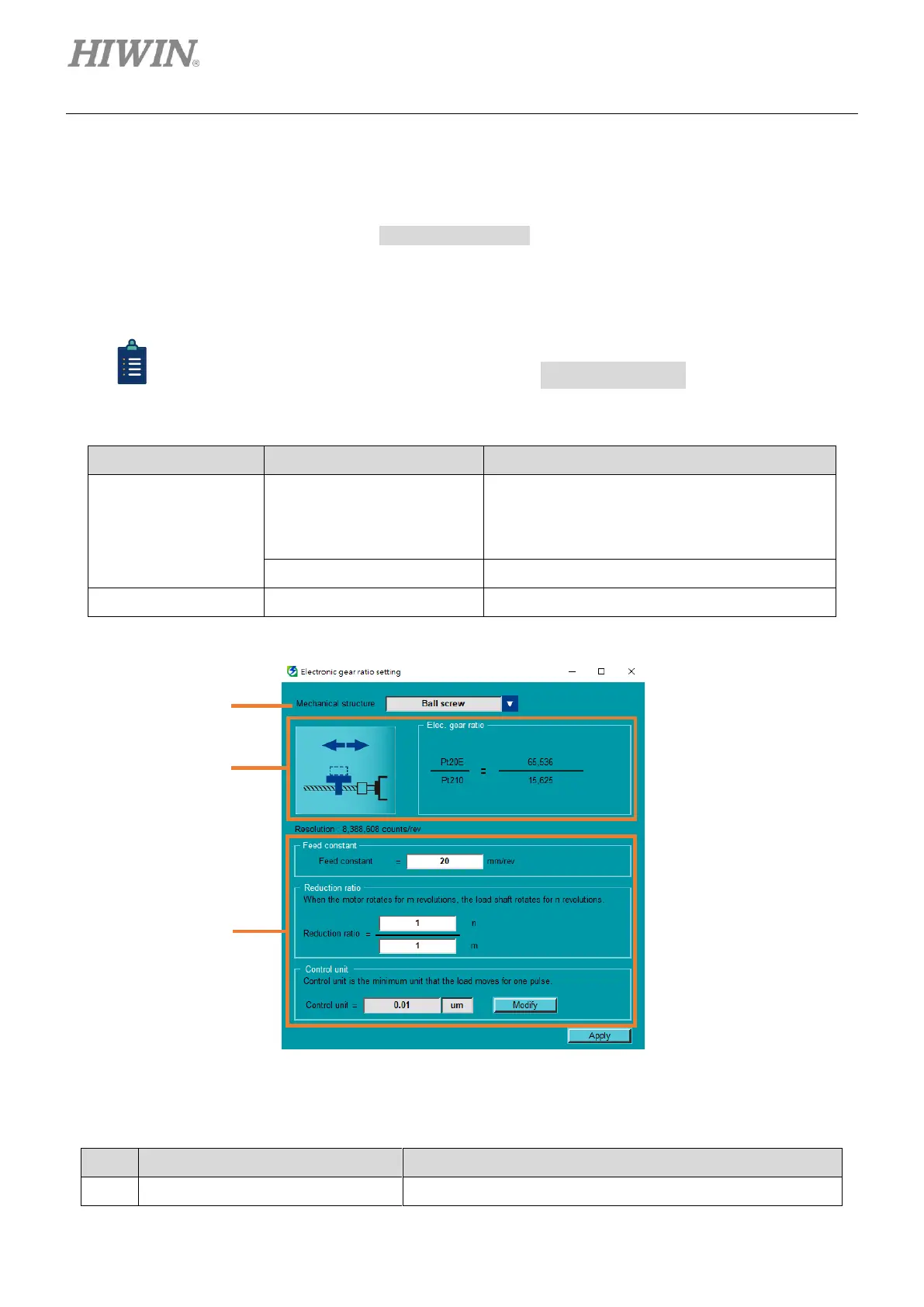

Servo Drive Configuration E1 Series Servo Drive Thunder Software Operation Manual
4-32 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012
4.3.6.3 Electronic gear ratio setting
This function only supports position mode, internal position mode and dual mode which includes one of
the two modes mentioned above (refer to Control Mode Setup). “Electronic gear ratio setting” window only
supports standard servo drive, and it will display different window based on motor type and encoder
setting. Refer to the following table for the related information.
Information
For the electronic gear ratio setting of Fieldbus servo drive’s EtherCAT model (ED1F-E-□□□
-□□), users have to modify Pt20E and Pt210 in Configuration Wizard.
Table 4.3.6.3.1
Motor type
Encoder setting
Reference
Rotary motor
Full-closed loop not activated
All mechanical structure’s electronic gear ratio
setting (except for linear motor and full-closed
loop)
Full-closed loop activated
Full-closed loop’s electronic gear ratio setting
Linear motor
No full-closed loop function
Linear motor’s electronic gear ratio setting
Figure 4.3.6.3.1
Table 4.3.6.3.2
No.
Item
Description
(1)
Menu of mechanical structure
Select the desired mechanical structure.
(1)
(2)
(3)
