Servo Drive Configuration E1 Series Servo Drive Thunder Software Operation Manual
4-20 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

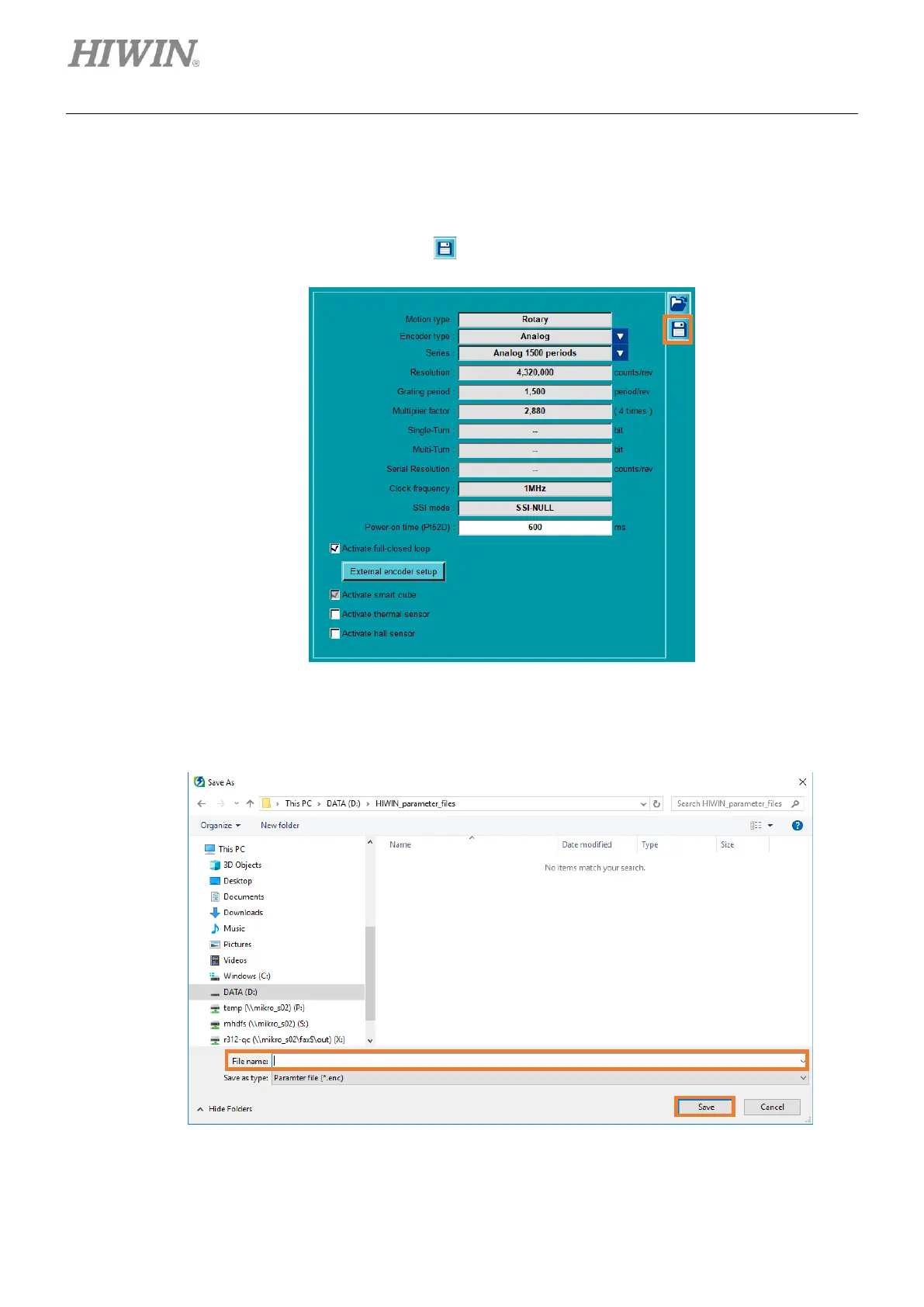

4.3.4.2 Save / Load encoder parameters file (*.enc)
◼ Save encoder parameters file (*.enc)
1. Click “Save parameters as a file” icon .
Figure 4.3.4.2.1
2. Key in file name of encoder parameters file (*.enc), select archive path, and click Save.
Figure 4.3.4.2.2
