Monitoring E1 Series Servo Drive Thunder Software Operation Manual
7-24 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

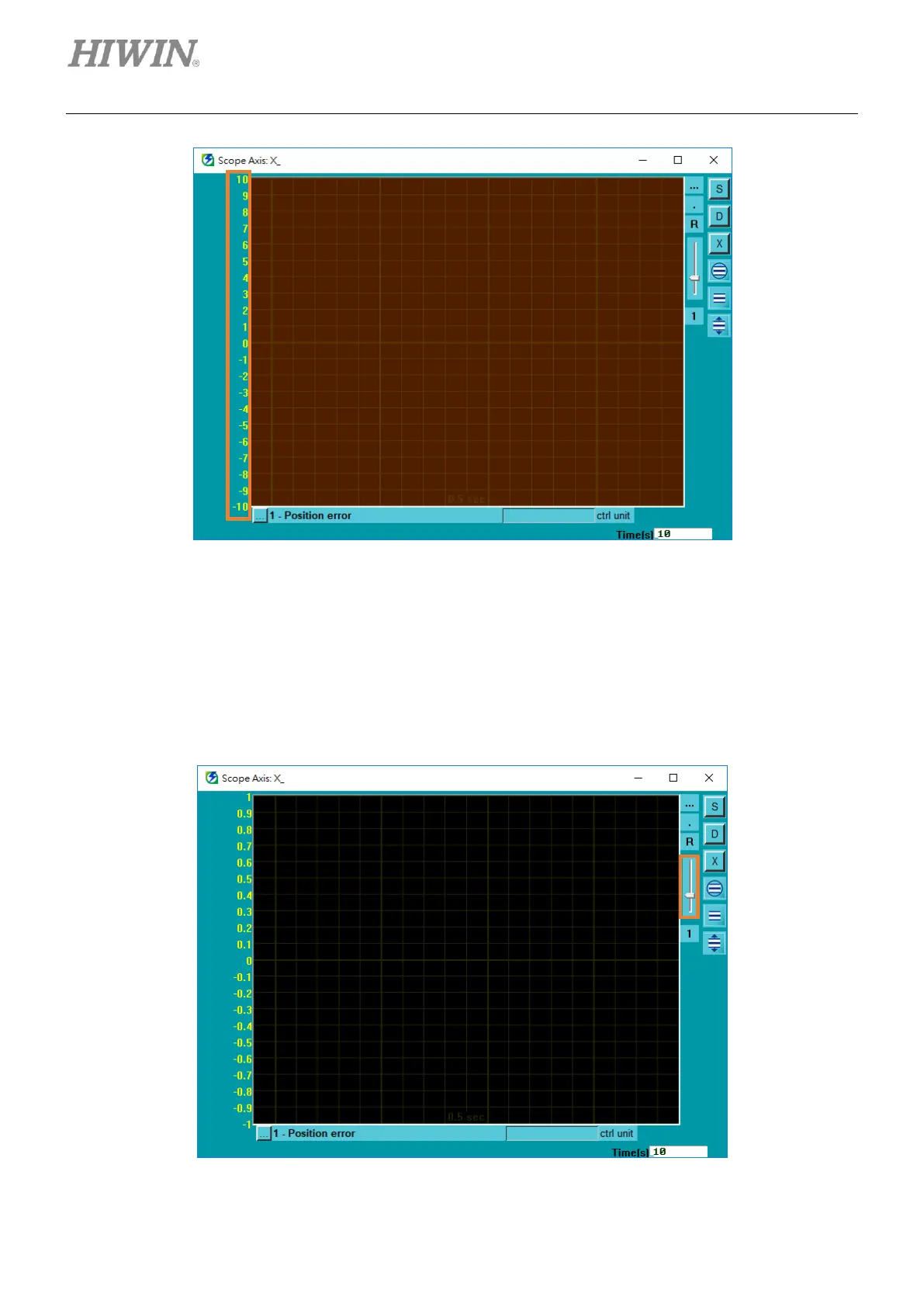

Figure 7.5.3.3
7.5.4 Grid light
Follow the procedure below to adjust the grid light of Scope.
Drag the scroll bar. Drag it up to deepen the grid; drag it down to lighten the grid.
Figure 7.5.4.1
