Basic Settings of Thunder Interface E1 Series Servo Drive Thunder Software Operation Manual
10-6 HIWIN MIKROSYSTEM CORP.
10.2.3.2 Auto set

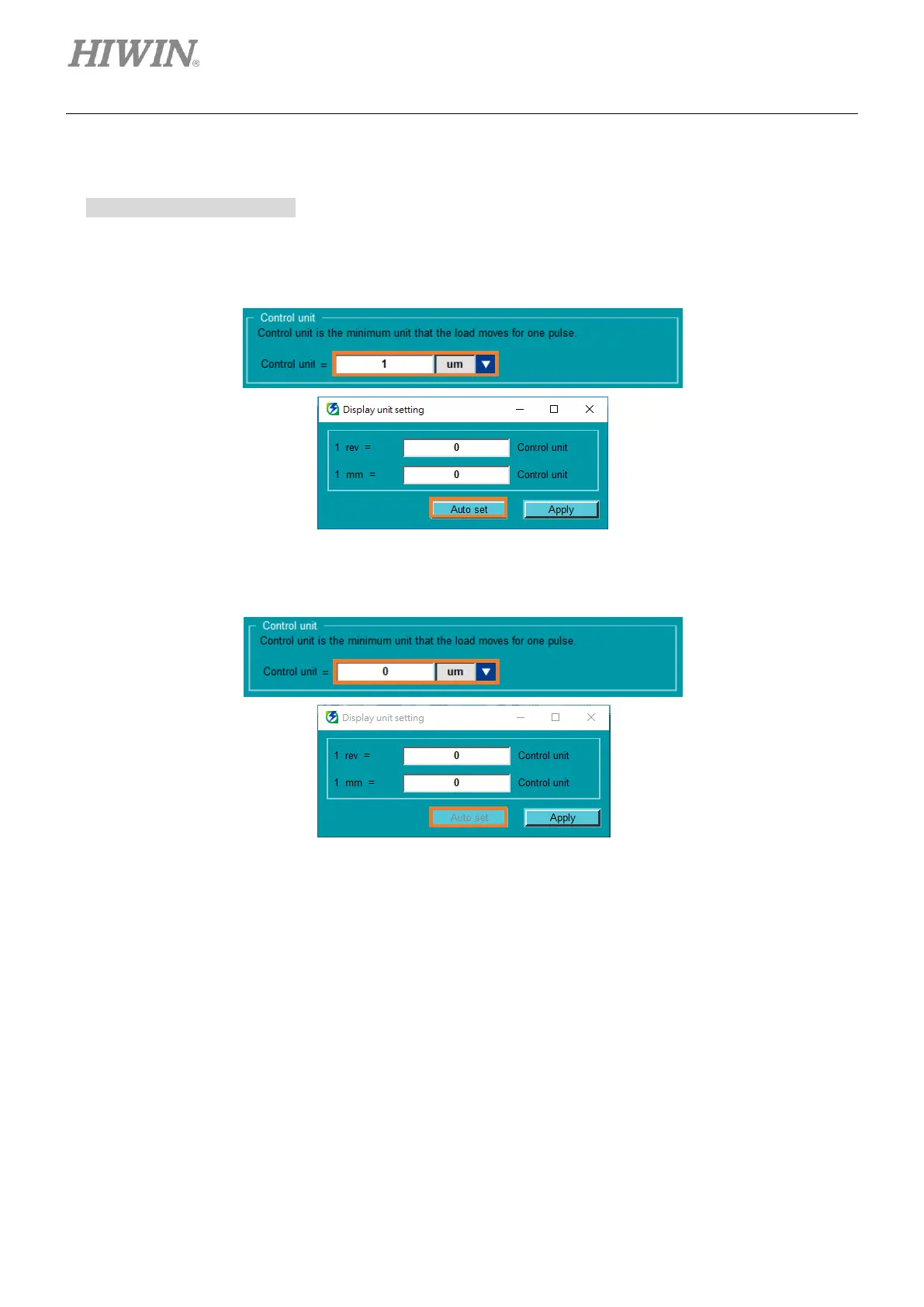

In Electronic gear ratio setting, if control unit is not 0, Thunder will automatically calculate the proportion
of display unit conversion and Auto set button can be clicked (as Figure 10.2.3.2.1 shows). If control unit
is 0, Auto set button cannot be clicked (as Figure 10.2.3.2.2 shows).
Figure 10.2.3.2.1
Figure 10.2.3.2.2
1. Select Settings in the menu bar, click Display unit and click Display unit setting to open “Display
unit setting” window.
To Next Page
