Monitoring E1 Series Servo Drive Thunder Software Operation Manual
7-50 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

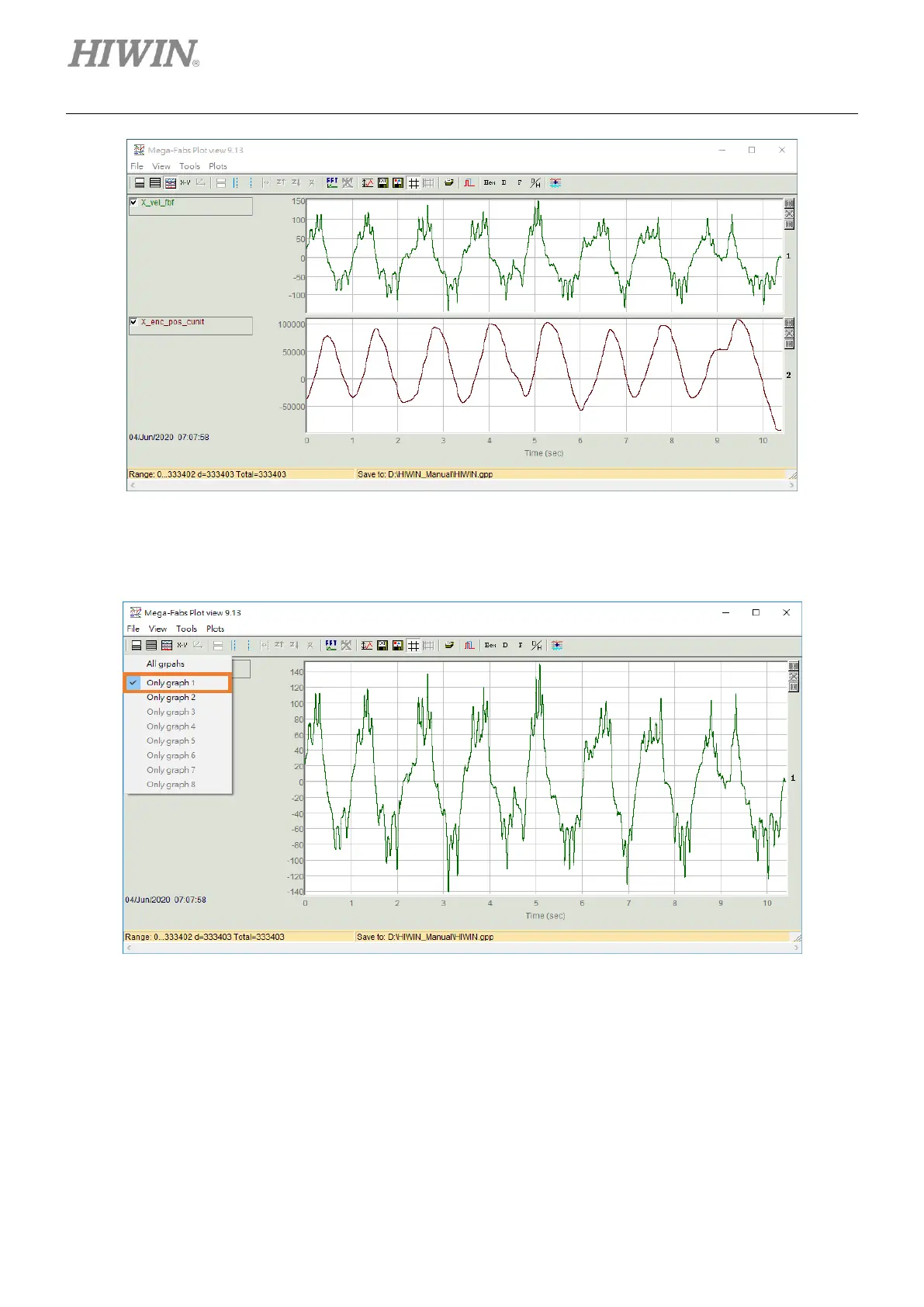

Figure 7.6.2.3.3
3. Select Only graph to observe the desired waveform.
Figure 7.6.2.3.4
