E1 Series Servo Drive Thunder Software Operation Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 4-61
MD12UE01-2012

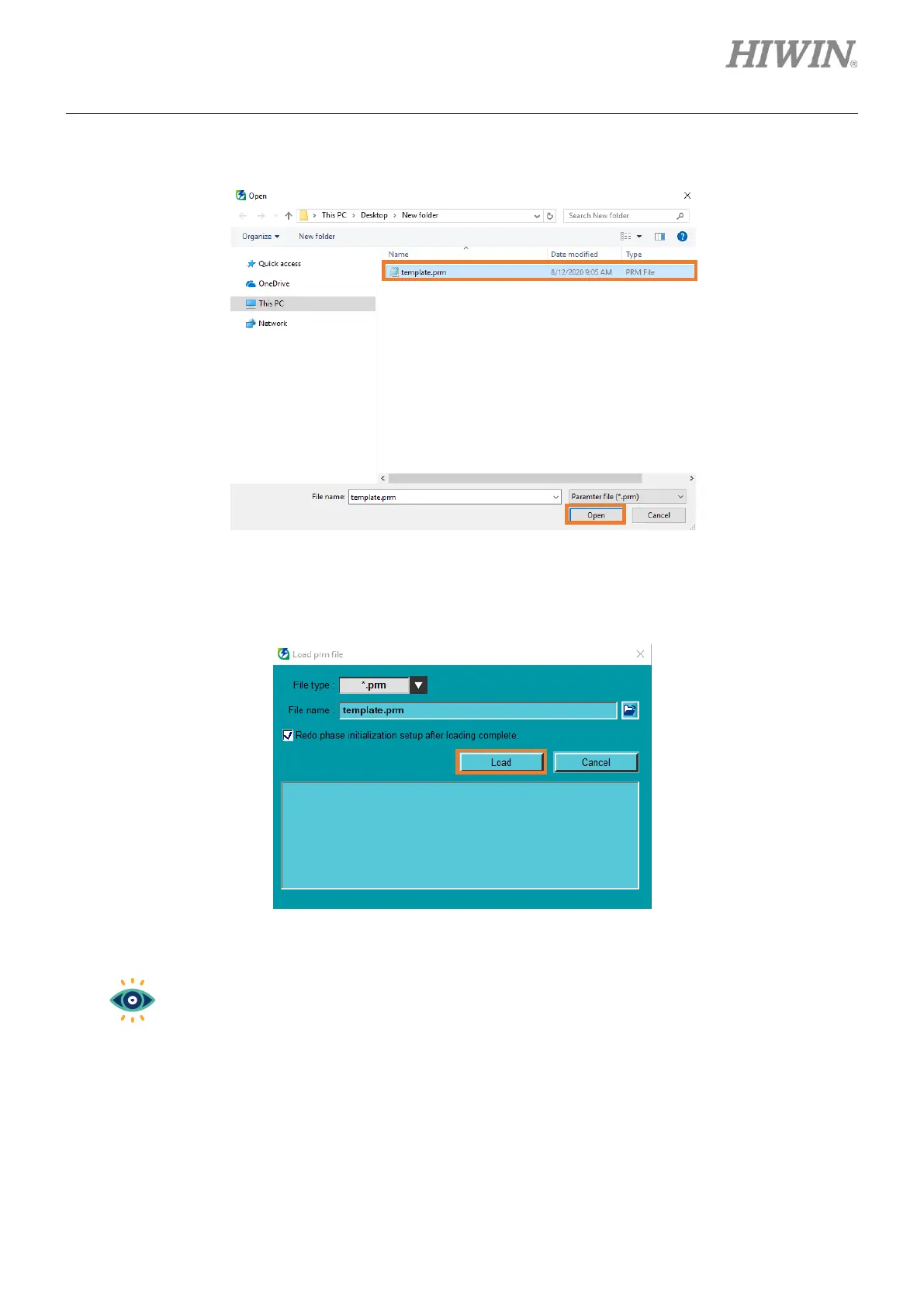

3. Select servo drive parameters file (*.prm), and click Open.
Figure 4.4.3.3.3
4. Click Load.
Figure 4.4.3.3.4
Important
If the following items are checked, users can uncheck the default of Redo phase initialization
setup after loading complete. By doing so, users do not need to redo phase initialization.
(1) The connected motor model number and encoder resolution are the same as the settings
of the parameters.
(2) The connected motor model number and encoder resolution are the same as the settings
of the parameters.
(3) The installation of stators and rotators are the same as the settings of the parameters.
