Servo Drive Configuration E1 Series Servo Drive Thunder Software Operation Manual
4-74 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

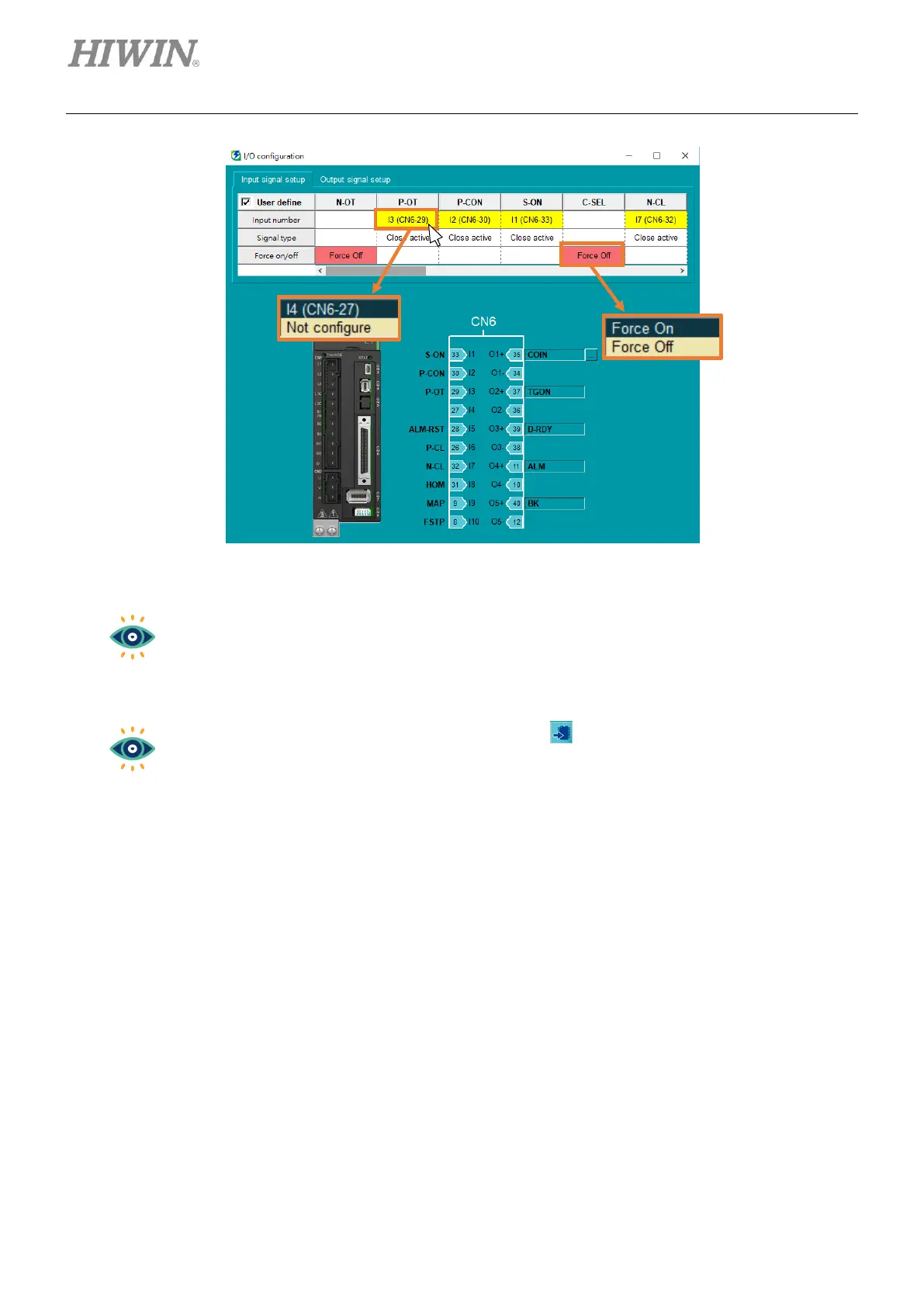

Figure 4.5.2.3
Important
(1) Standard servo drive provides 10 digital inputs, while Fieldbus servo drive only provides
8 digital inputs.
(2) Fieldbus servo drive does not support input signal “S-ON” and “P-CON”.
Important
After the modification, click “Save to drive” icon in the toolbar. The new setting will be
effective after users power cycle the servo drive.
Double-click
