Hiwin E1 Series - Tuning Overview and Function

Monitoring E1 Series Servo Drive Thunder Software Operation Manual
7-38 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

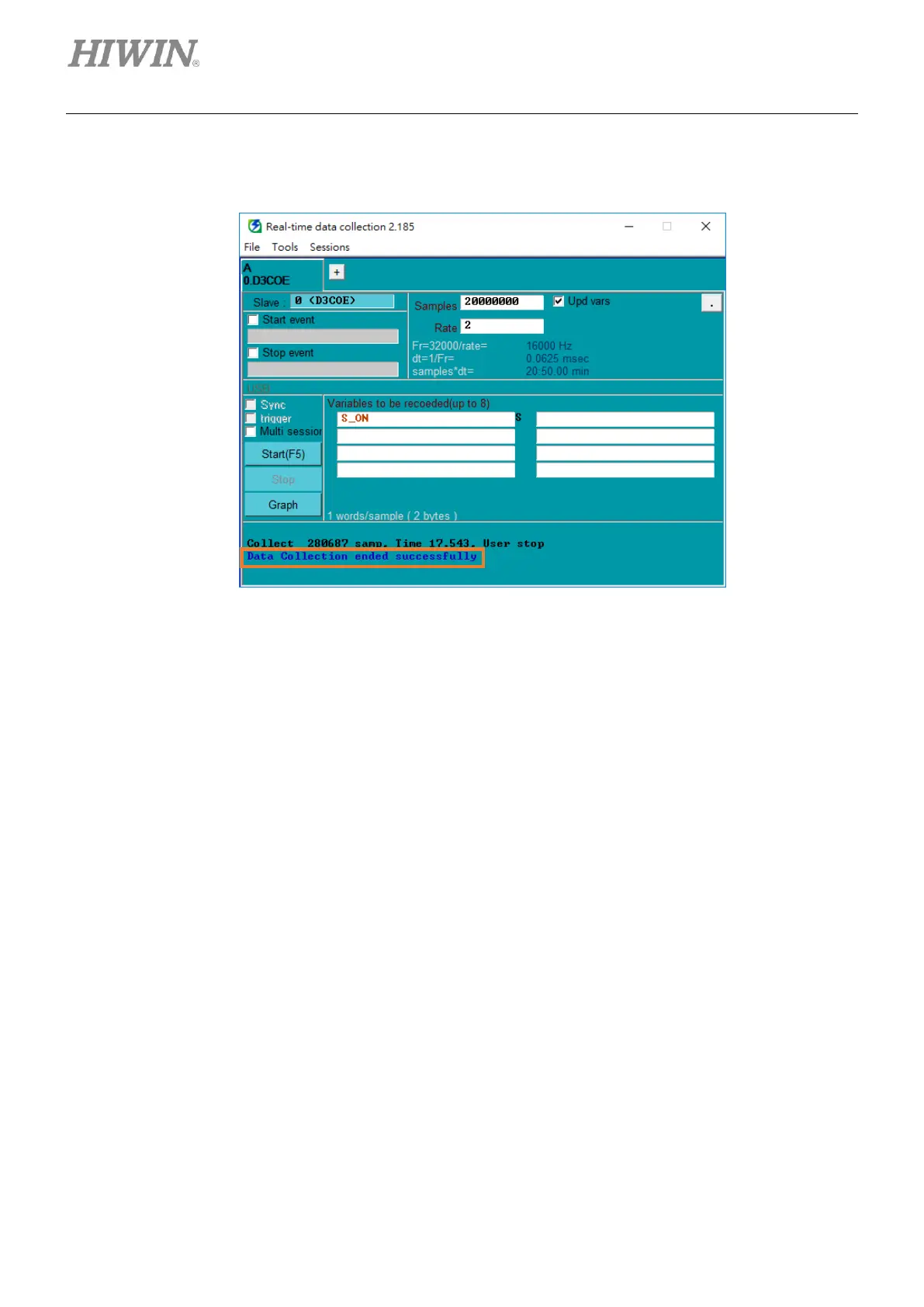

3. To stop collecting waveform, click Stop or wait until the collection time ends. At this time, Data
Collection ended successfully will appear at the bottom of the window.
Figure 7.6.1.3.8
