Monitoring E1 Series Servo Drive Thunder Software Operation Manual
7-40 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012

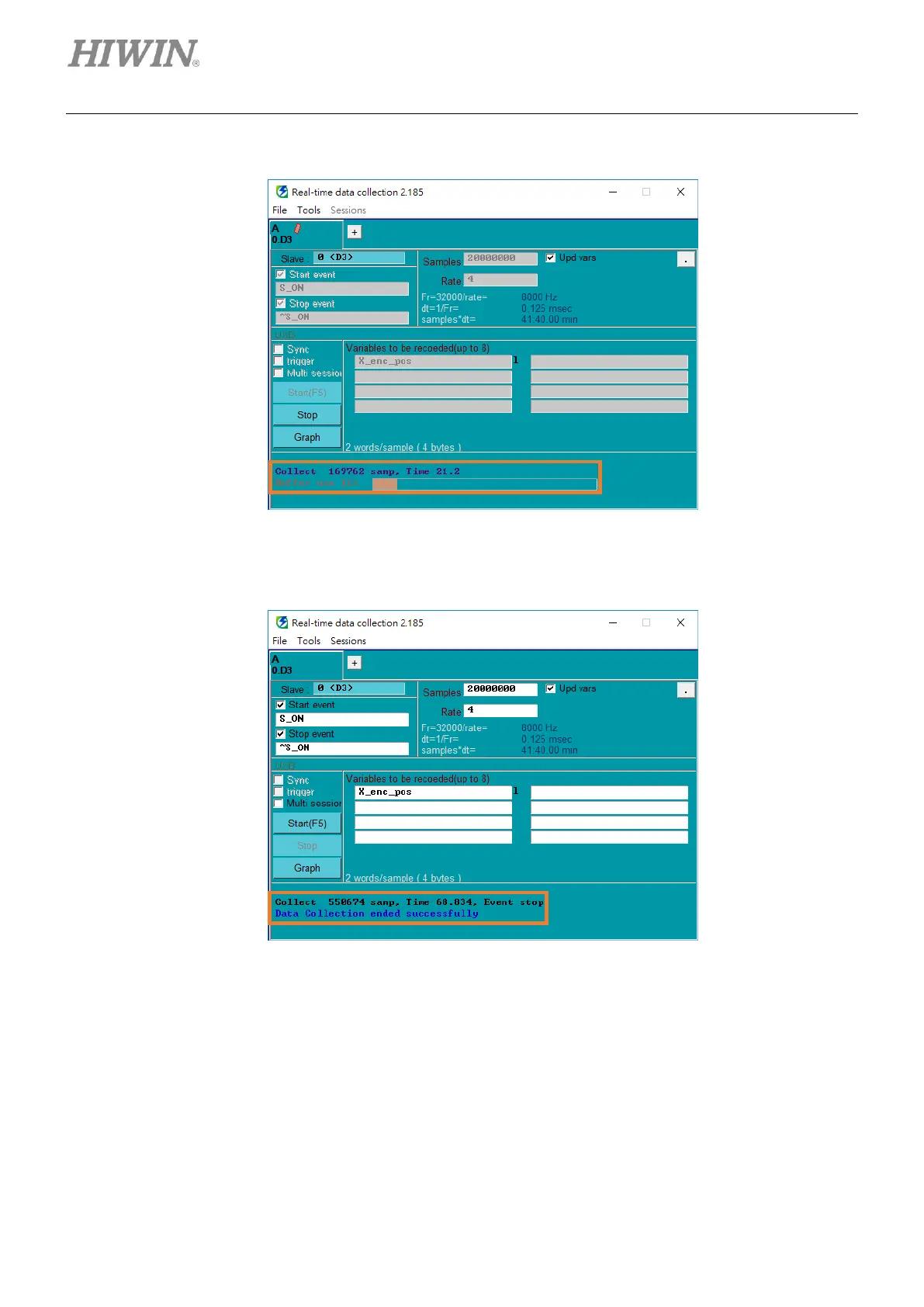

3. S_ON is triggered, which satisfies start event for collection. Start collecting waveform.
Figure 7.6.1.3.11
4. S_ON is released, which satisfies stop event for collection. Stop collecting waveform.
Figure 7.6.1.3.12
