Hiwin E1 Series - Auto Tuning

Monitoring E1 Series Servo Drive Thunder Software Operation Manual
7-44 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012
Figure 7.6.1.5.1

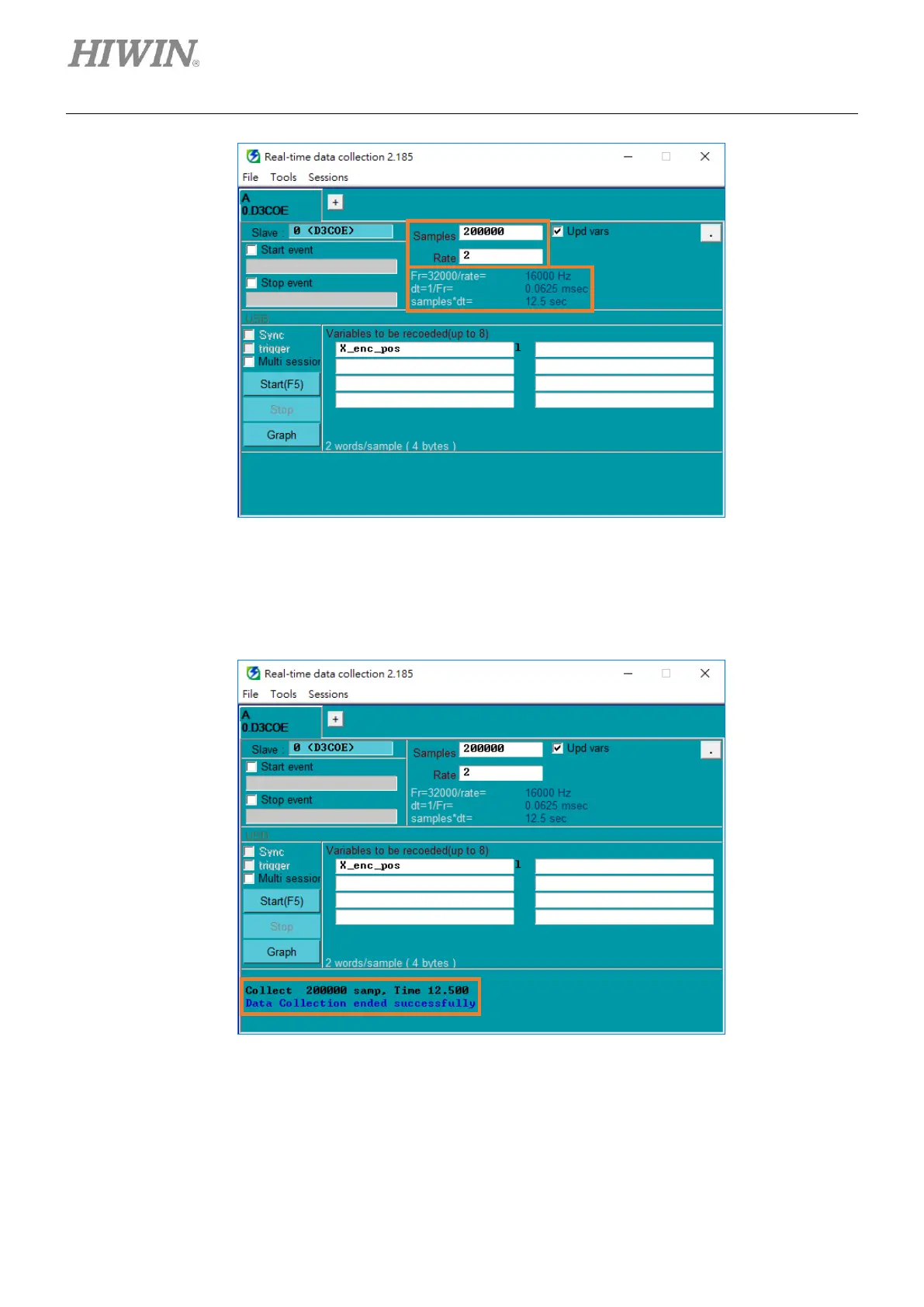

2. Click Start(F5) to collect waveform. After 12.5 seconds, 200000 samples are collected and
waveform collection is done.
Figure 7.6.1.5.2
