E1 Series Servo Drive Thunder Software Operation Manual Advanced Functions
HIWIN MIKROSYSTEM CORP. 9-27
MD12UE01-2012
Information

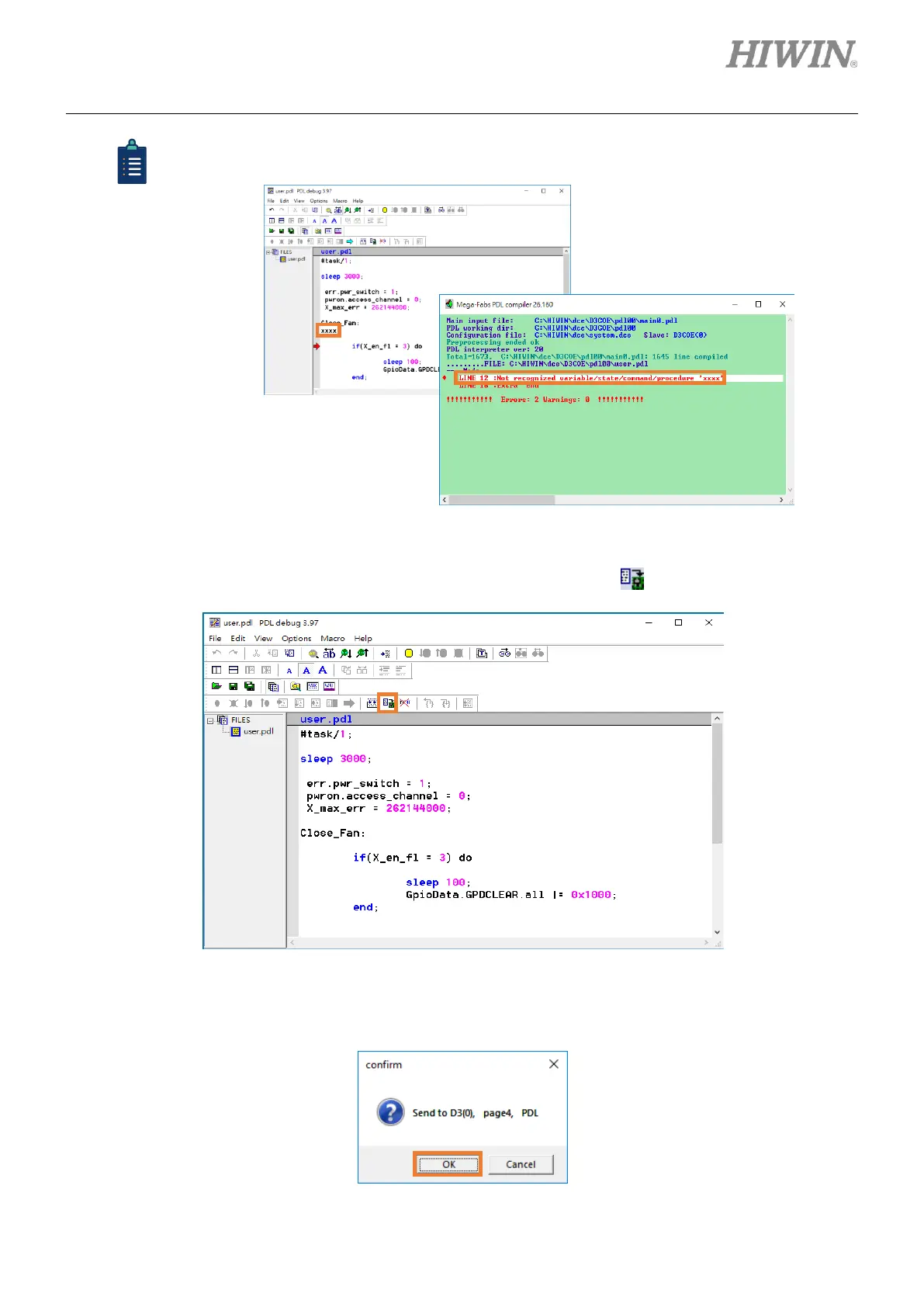

If the compilation fails, the new window will display the error information with red words.
Figure 9.5.3.3
3. After the compilation is successfully done, click “Save to slave” icon to save PDL to servo drive.
Figure 9.5.3.4
4. Click OK in the new pop-up window. After the servo drive is power cycled, the saving is done.
Figure 9.5.3.5
