E1 Series Servo Drive Thunder Software Operation Manual Advanced Functions
HIWIN MIKROSYSTEM CORP. 9-51
MD12UE01-2012

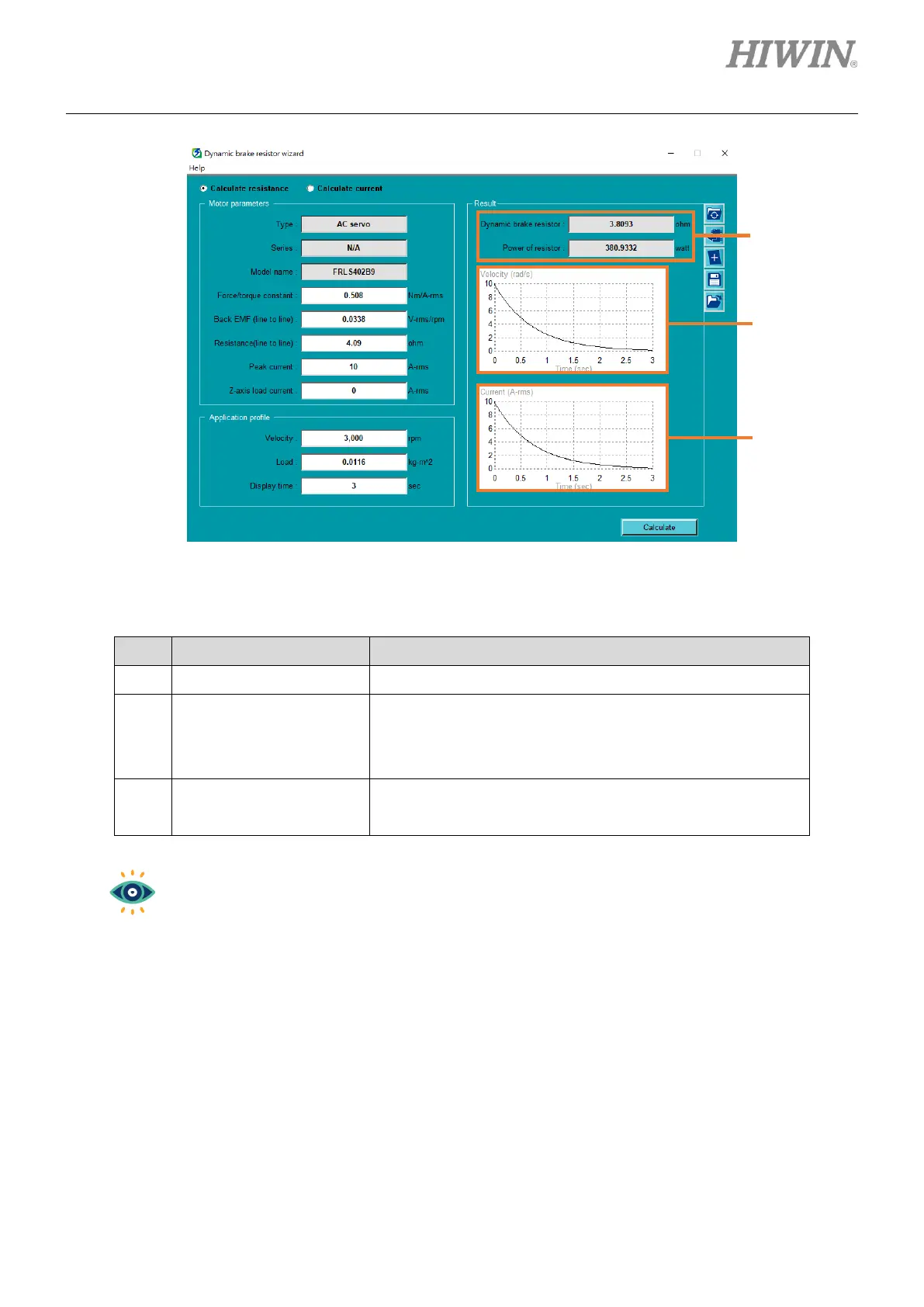

Figure 9.8.4.2
Table 9.8.4.2
No.
Item
Description
(1)
Resistance information
Resistance to be used and power.
(2)
Velocity trend
This graph simulates the falling trend of the velocity during
deceleration. By observing the trend, users can check if it
meets the expected performance.
(3)
Current trend
This graph simulates the falling trend of the current during
deceleration.
Important
(1) For proper braking performance, the smaller the resistance is, the larger the power should
be.
(2) When external dynamic brake resistor is required, use aluminum housed power resistor.
The installation site must be with well ventilation and heat dissipation to avoid
overheating.
(1)
(2)
(3)
